Installation

2ZR-FE ENGINE CONTROL: HEATED OXYGEN SENSOR: INSTALLATION

INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR





(a) Using SST, install the heated oxygen sensor onto the front exhaust pipe.
SST: 09224-00010
without SST - Torque: 44 Nm (449 kgf-cm, 32 ft-lbf)
with SST - Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)

NOTICE:

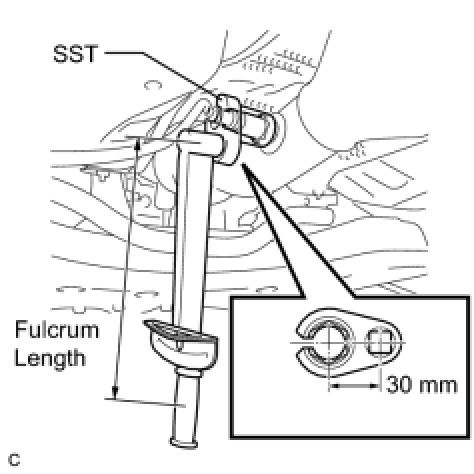

- This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.81 in.) and SST with measurement of 30 mm (1.18 in.) Service Precautions.
- This torque value is effective when SST is parallel to the torque wrench.





(b) Install the wire harness clamp bracket and connect the wire harness clamp.
(c) Pass the sensor connector through the floor panel and install the grommet.
(d) Connect the heated oxygen sensor connector.
2. INSPECT FOR EXHAUST GAS LEAK
