2ZR-FE EMISSION CONTROL: PURGE VALVE: INSTALLATION

INSTALLATION

1. INSTALL DUTY VACUUM SWITCHING VALVE

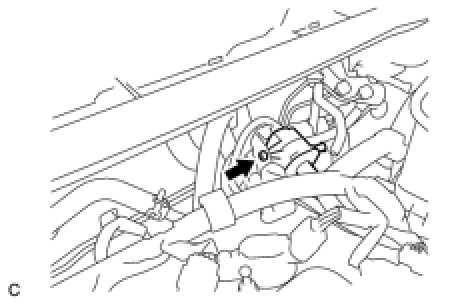

(a) Install the duty vacuum switching valve with the screw.
Torque: 3.4 Nm (35 kgf-cm, 30 in-lbf)

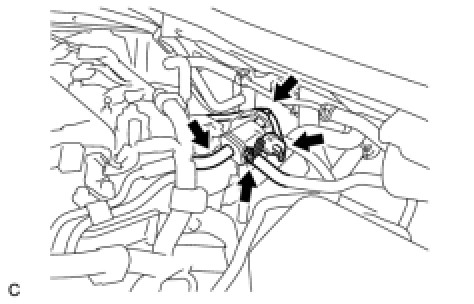

(b) Connect the duty vacuum switching valve connector, 2 vacuum hoses and wire harness clamp.
2. INSTALL NO. 2 CYLINDER HEAD COVER Installation
