Fuel Delivery and Air Induction: Description and Operation

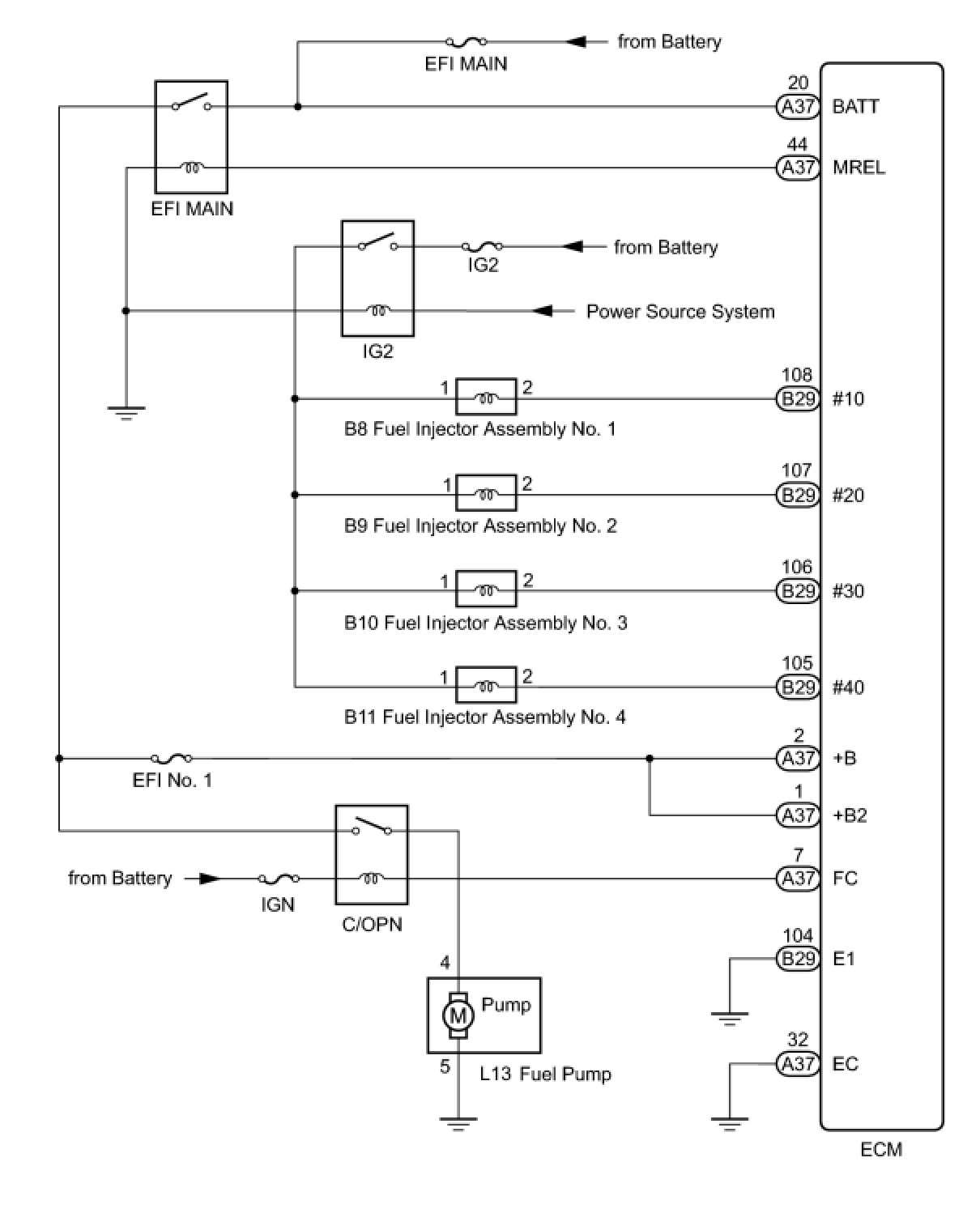

2ZR-FE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
