Installation

2ZR-FE FUEL: FUEL PRESSURE REGULATOR: INSTALLATION

INSTALLATION

1. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY

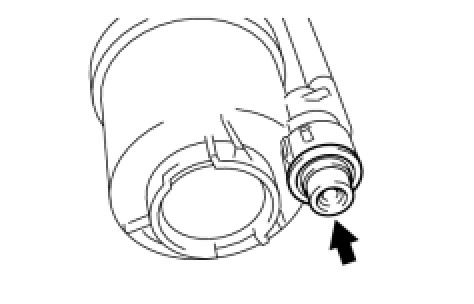

(a) Apply gasoline to 2 new O-rings and then install them to the fuel pressure regulator assembly.





(b) Install the fuel pressure regulator assembly.
2. INSTALL FUEL PUMP Reassembly
3. INSTALL FUEL SENDER GAUGE ASSEMBLY Installation
4. INSTALL FUEL SUCTION TUBE ASSEMBLY
(a) Install the fuel suction tube assembly to the fuel tank assembly Reassembly.
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSPECT FOR FUEL LEAK Testing and Inspection
