Removal
2ZR-FE ENGINE CONTROL: THROTTLE BODY: REMOVAL
REMOVAL
1. DRAIN ENGINE COOLANT Service and Repair
2. REMOVE NO. 2 CYLINDER HEAD COVER Removal
3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE

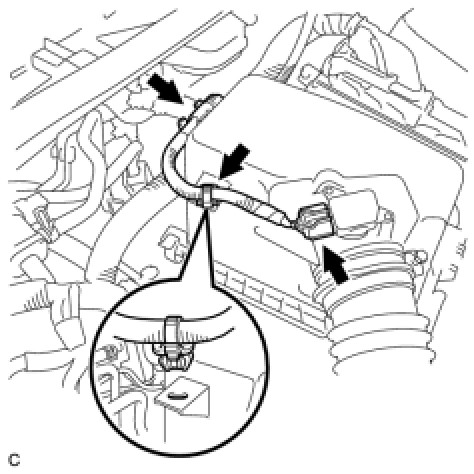

(a) Disconnect the mass air flow meter connector and the 2 wire harness clamps.

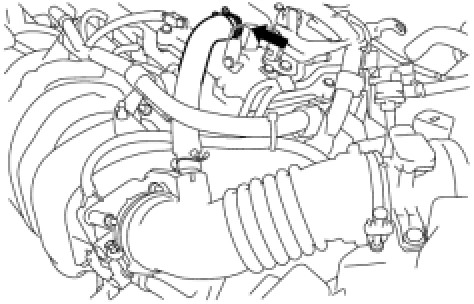

(b) Disconnect the ventilation hose and loosen the hose clamp.

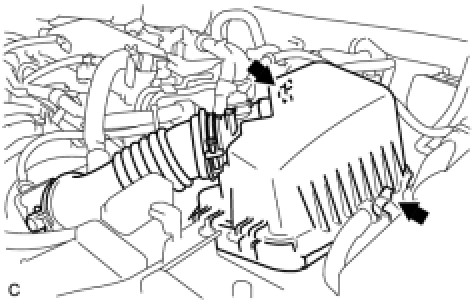

(c) Release the 2 clamps and remove the air cleaner cap sub-assembly with hose.
4. REMOVE THROTTLE BODY ASSEMBLY
(a) Disconnect the throttle body connector and the 2 water by-pass hoses.
(b) Remove the 2 bolts and 2 nuts, and remove the throttle body assembly.

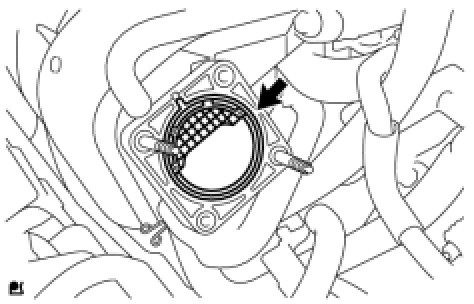

(c) Remove the gasket from the intake manifold.
