Powertrain Management: Locations

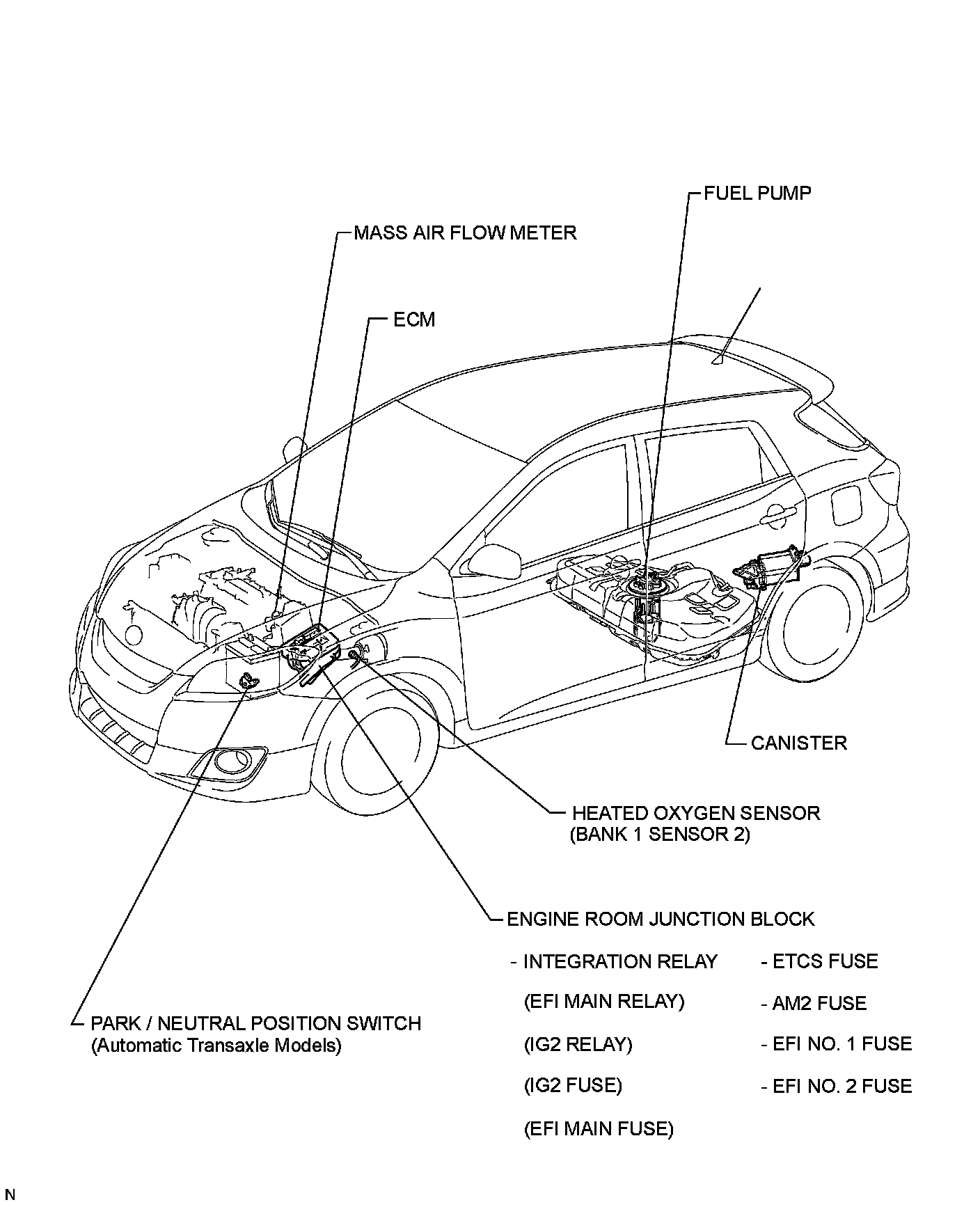

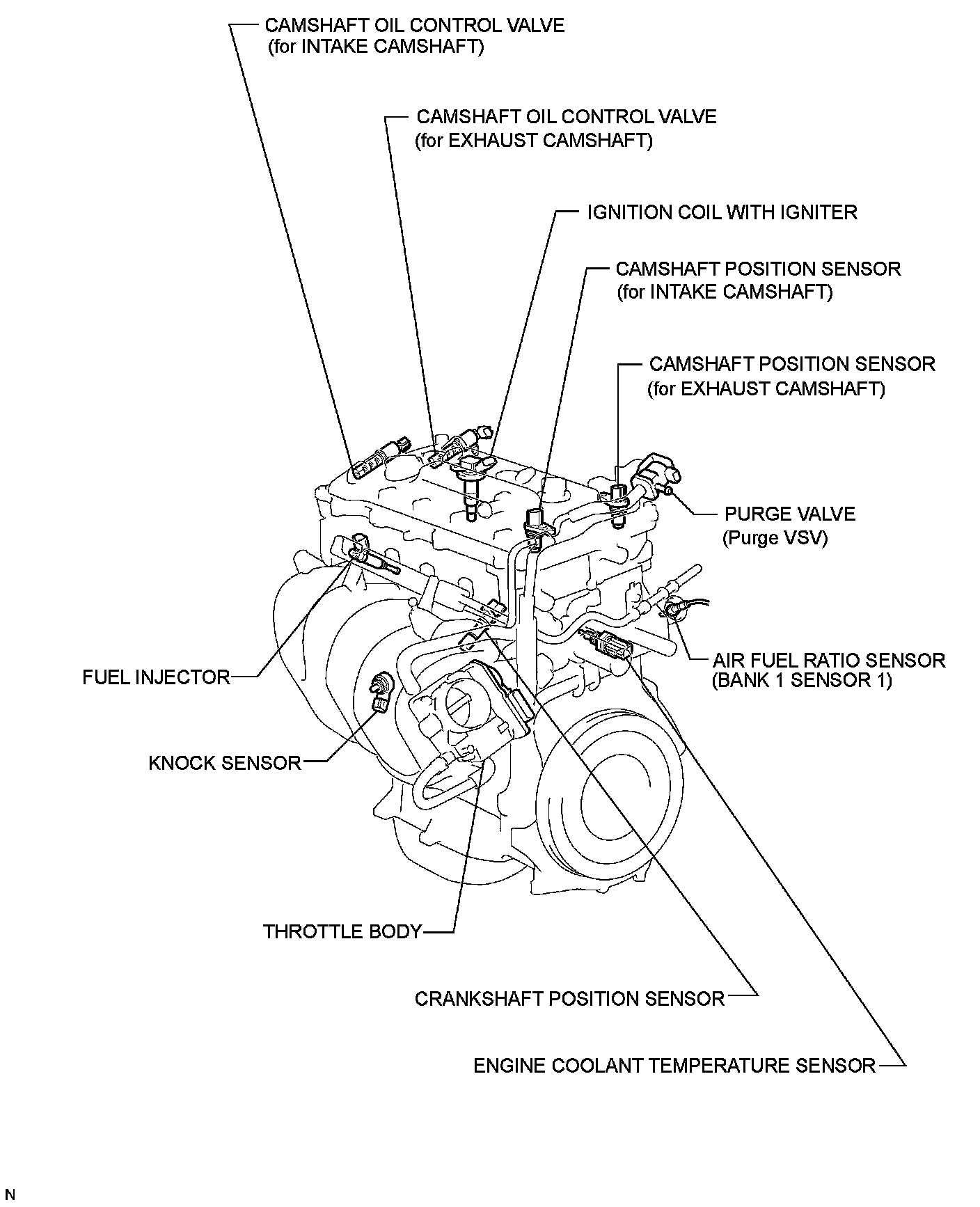

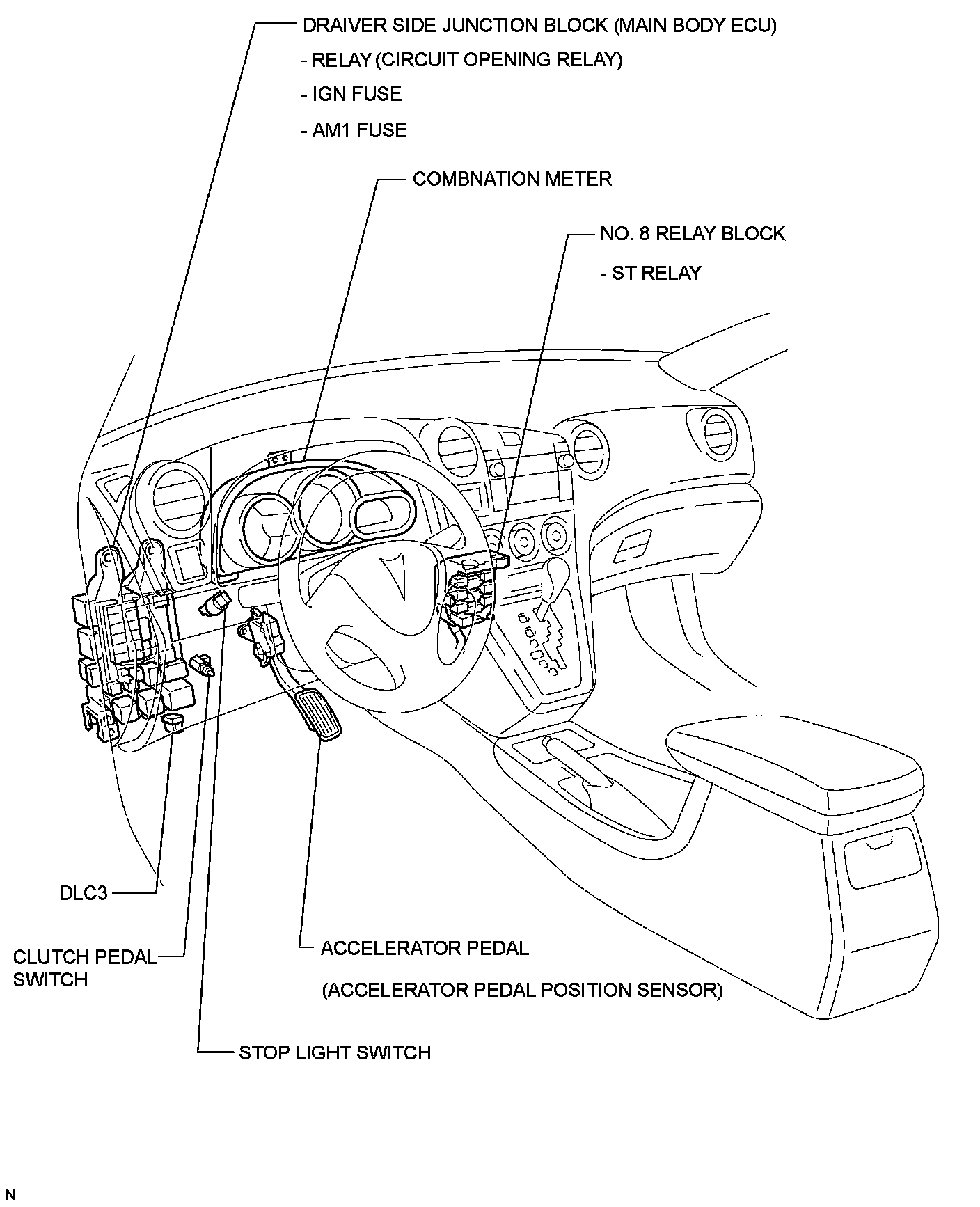

2ZR-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
