Horn Relay: Testing and Inspection

HORN: HORN RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

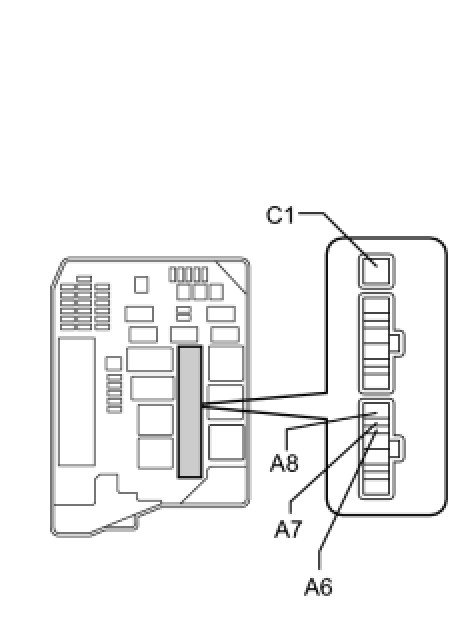

1. INSPECT INTEGRATION RELAY
(a) Remove the integration relay from the engine room relay block.

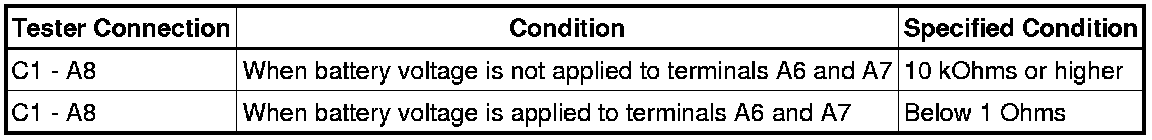

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the integration relay.
