2ZR-FE ENGINE CONTROL: ECM: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE Removal
3. REMOVE AIR CLEANER CASE Removal
4. REMOVE ECM

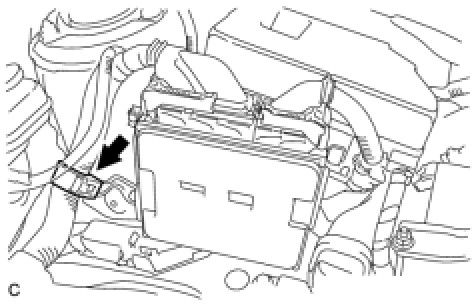

(a) Separate the wire harness clamp.





(b) Disconnect the 2 ECM connectors.

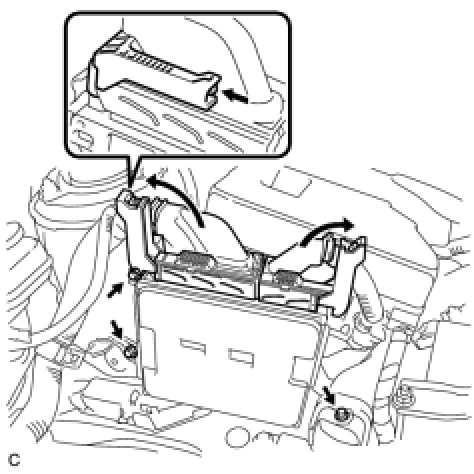

(1) Push the locks on the 2 levers, then raise the levers, and disconnect the 2 ECM connectors.
NOTE: After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the connectors.

(c) Remove the 3 bolts and the ECM.

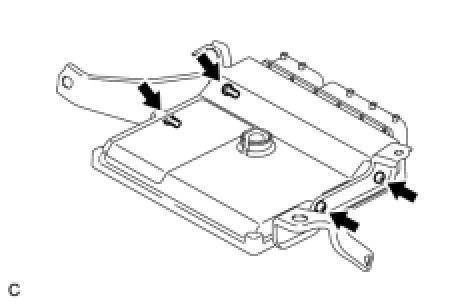

(d) Remove the 4 screws and 2 ECM brackets.
