SUPPLEMENTAL RESTRAINT SYSTEMS: CURTAIN SHIELD AIRBAG ASSEMBLY: REMOVAL

REMOVAL
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.

1. PRECAUTION
CAUTION: Be sure to read Precaution thoroughly before servicing Service Precautions.

2. REMOVE ROOF HEADLINING ASSEMBLY
HINT: Refer to the procedure up to Remove Roof Headlining Assembly Removal.

3. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY
NOTE: If the curtain shield airbag assembly is removed, replace it with a new one.

(a) Check that the ignition switch is off.
(b) Check that the cable is disconnected from the negative (-) battery terminal.
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

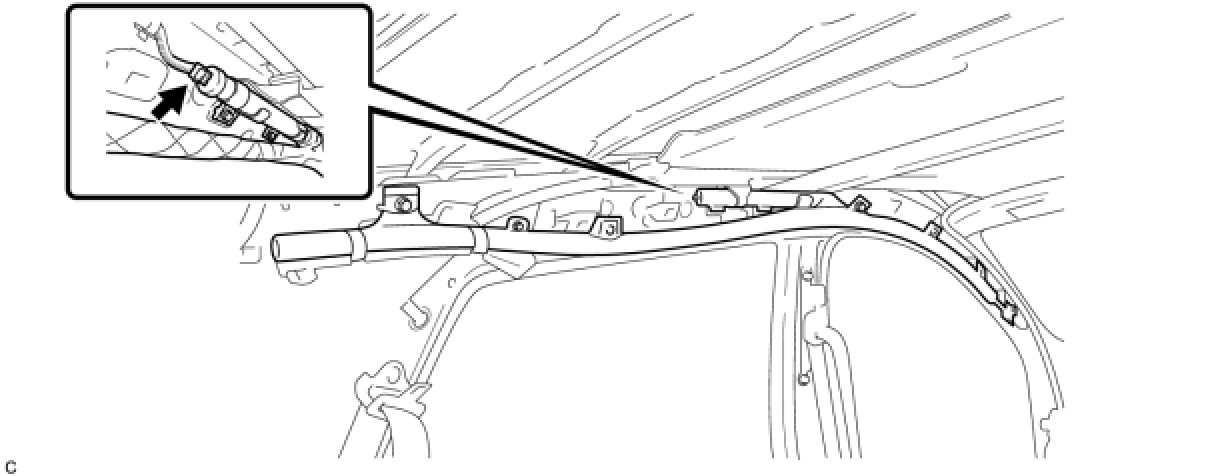

(c) Disconnect the curtain shield airbag connector.
NOTE: When disconnecting the airbag connector, take care not to damage the airbag wire harness.

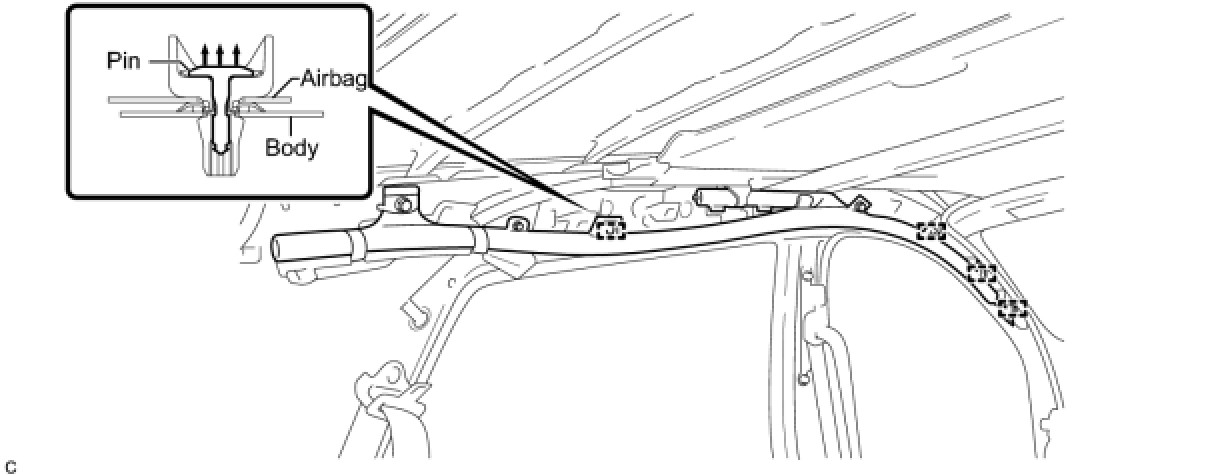

(d) Remove the 4 pins as shown in the illustration.





(e) Remove the 5 bolts.

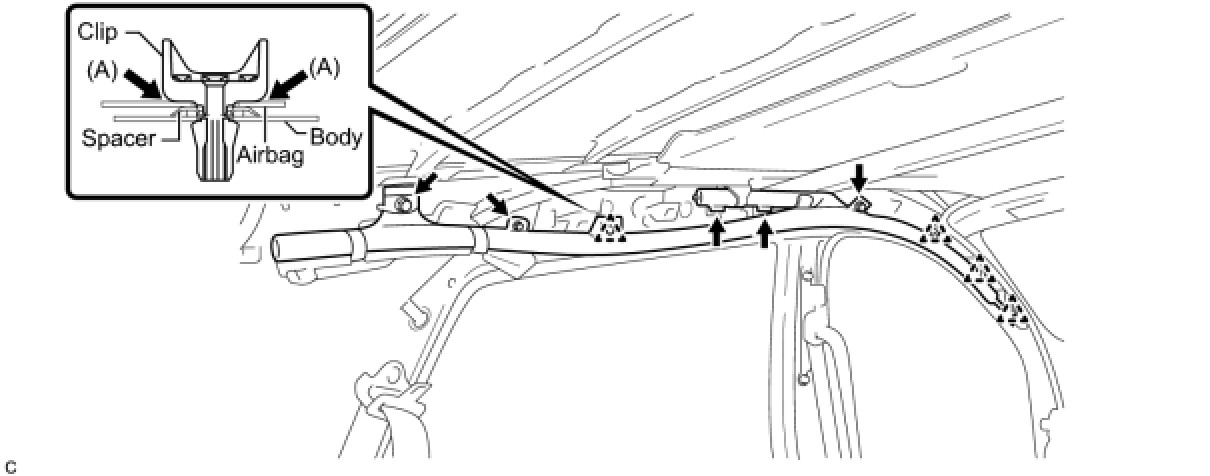

(f) Disengage the 4 clips and separate the curtain shield airbag assembly with the 4 spacers.
HINT: Insert screw driver to (A) as shown in the illustration to disengage the clip.

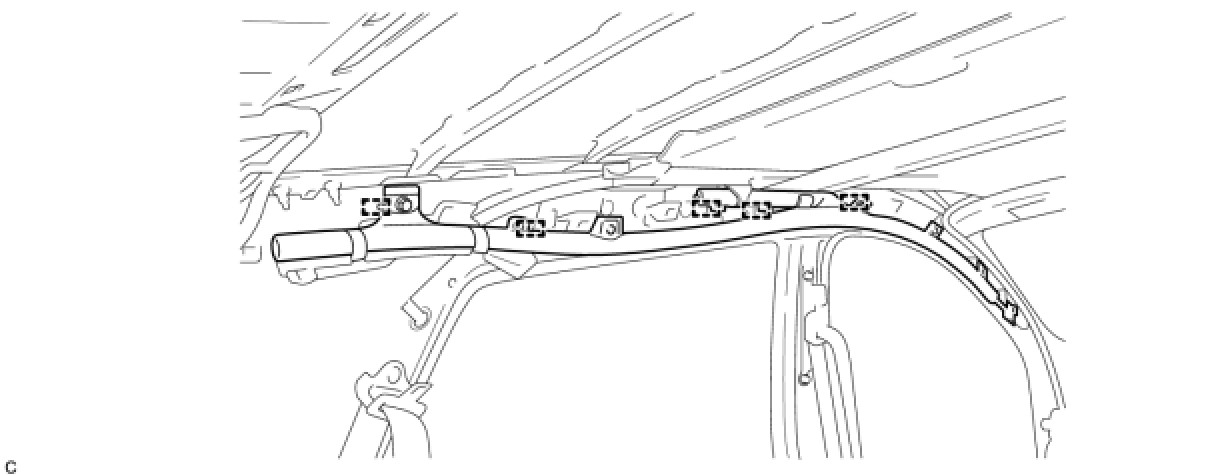

(g) Disengage the 5 hooks and remove the curtain shield airbag assembly.
