Pinout Values and Diagnostic Parameters

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: TERMINALS OF ECU

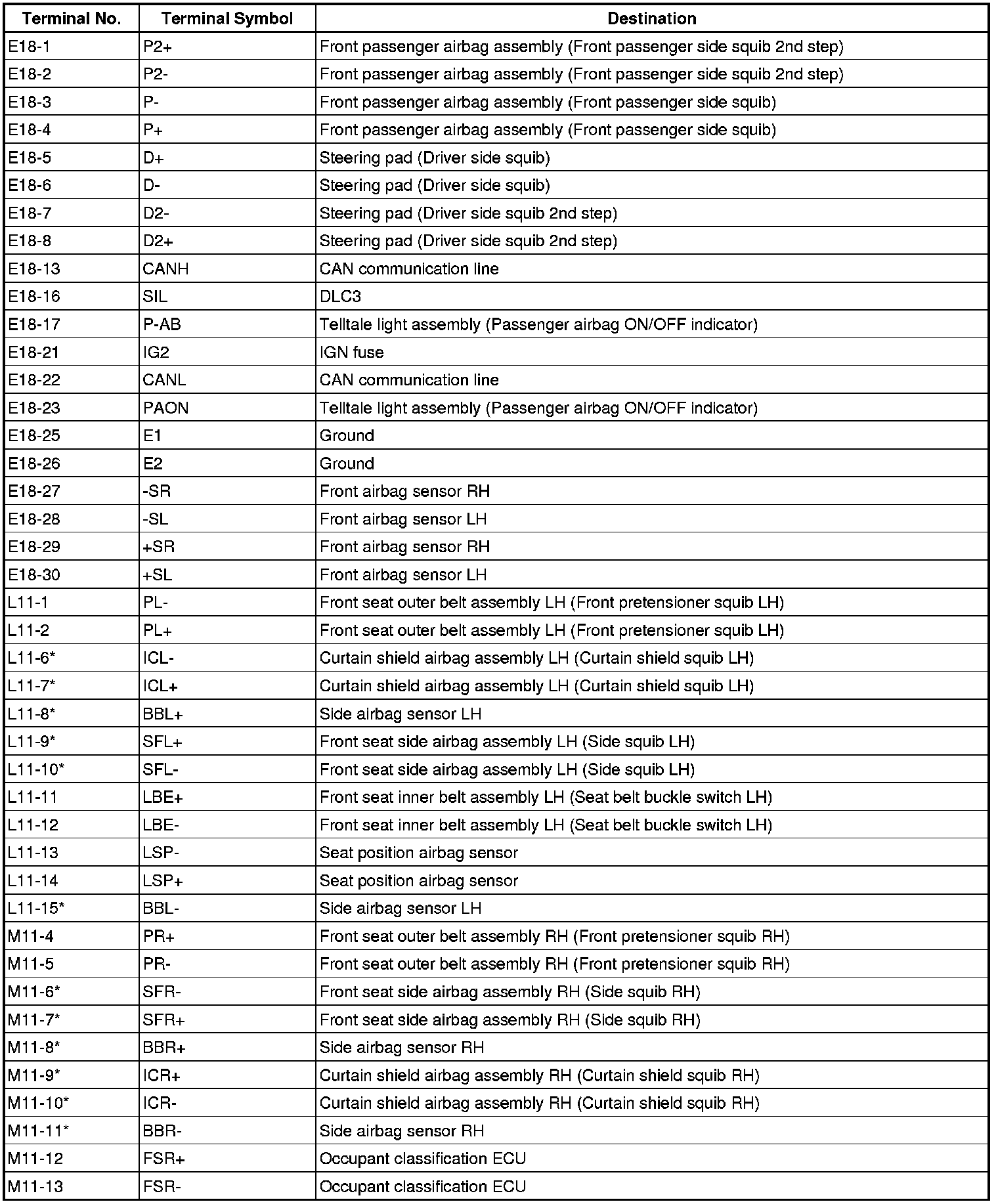

TERMINALS OF ECU

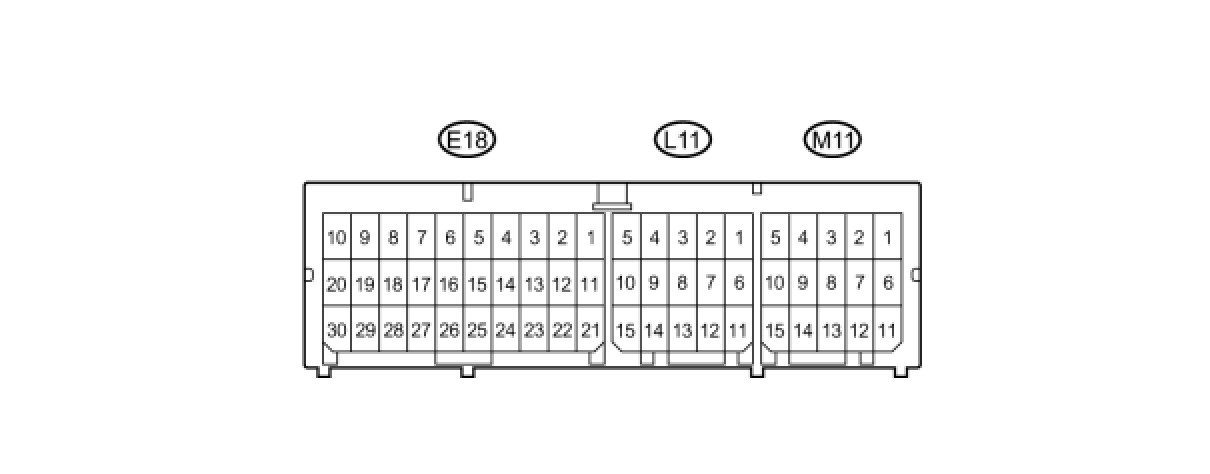

1. CENTER AIRBAG SENSOR ASSEMBLY









*: w/ Front seat side airbags and curtain shield airbags
