Restraints and Safety Systems: Locations

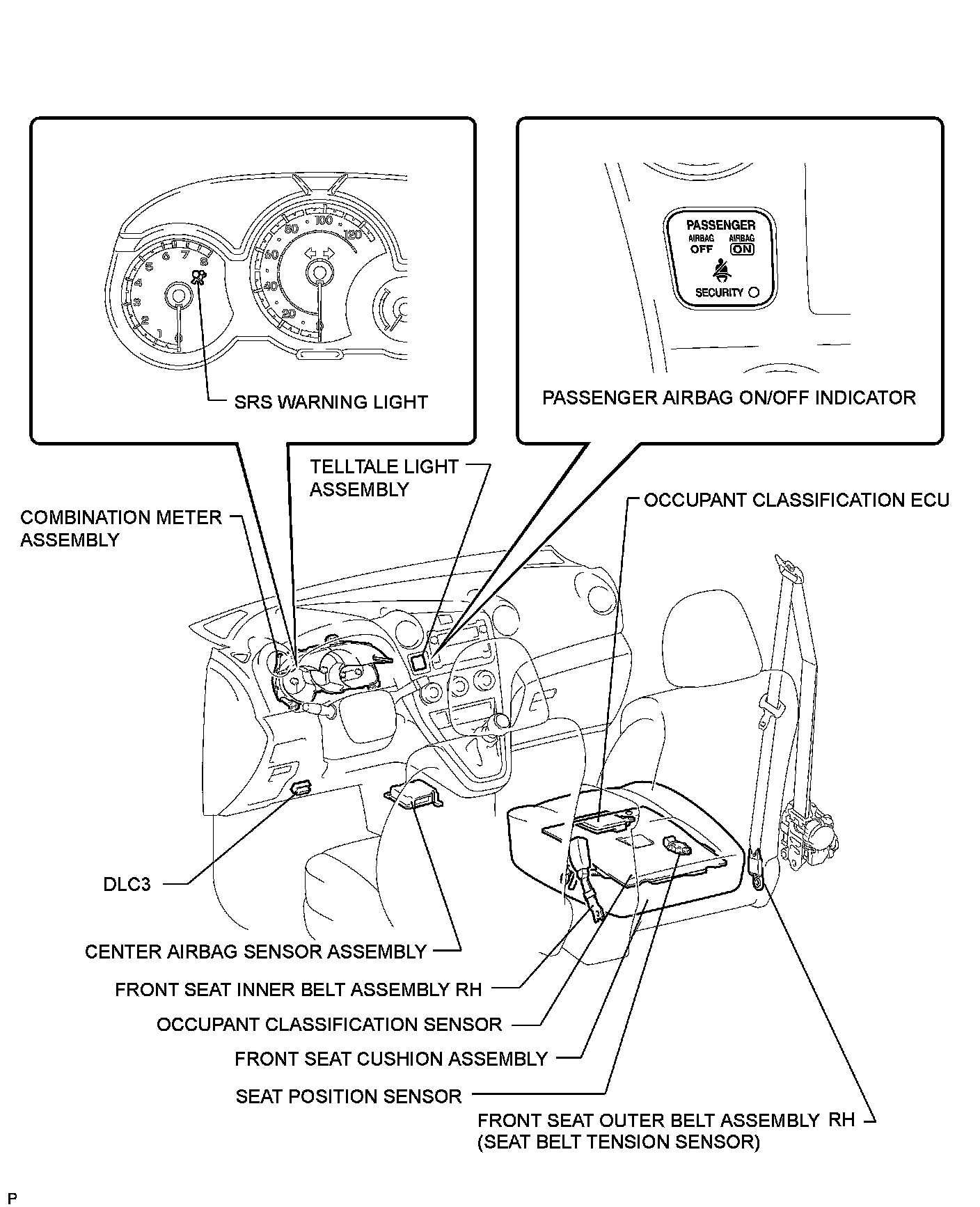

SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
