SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET: REMOVAL

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
2. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
3. REMOVE REAR SEATBACK OUTER HINGE COVER (for LH Side) Removal
4. REMOVE REAR SEATBACK INNER HINGE COVER (for LH Side) Removal
5. REMOVE REAR SEATBACK ASSEMBLY LH Removal
6. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
7. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
8. DISCONNECT REAR SEAT CENTER OUTER BELT ASSEMBLY Removal
9. REMOVE REAR SEATBACK OUTER HINGE COVER (for RH Side) Removal
10. REMOVE REAR SEATBACK INNER HINGE COVER (for RH Side) Removal
11. REMOVE REAR SEATBACK ASSEMBLY RH Removal
12. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET

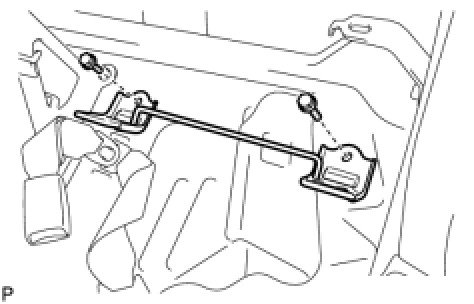

(a) Remove the 2 bolts and child restraint seat anchor bracket.
HINT: Use the same procedure for the RH side and LH side.
