SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: INSTALLATION

INSTALLATION

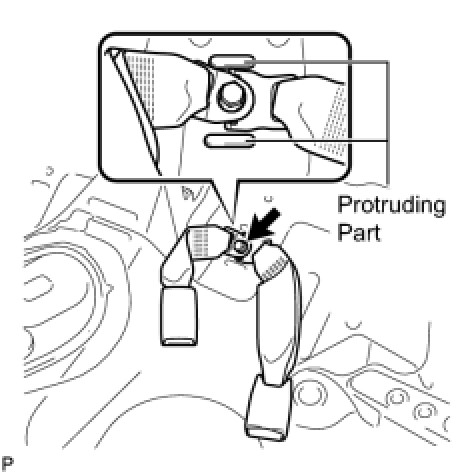

1. INSTALL REAR SEAT CENTER INNER BELT ASSEMBLY





(a) Install the rear seat center inner belt assembly with the bolt.
Torque: 41 Nm (420 kgf-cm, 30 ft-lbf)
NOTE: Do not allow the anchor part of the rear seat center inner belt assembly to overlap the protruding part of the floor panel.

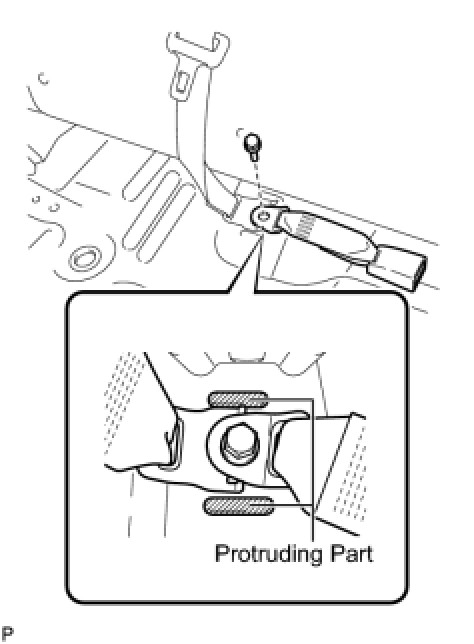

2. INSTALL REAR SEAT INNER BELT ASSEMBLY





(a) Install the rear seat inner belt assembly with the bolt.
Torque: 41 Nm (420 kgf-cm, 30 ft-lbf)
NOTE: Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding part of the floor panel.

3. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
