SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
2. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
3. REMOVE REAR SEATBACK OUTER HINGE COVER (for LH Side) Removal
4. REMOVE REAR SEATBACK INNER HINGE COVER (for LH Side) Removal
5. REMOVE REAR SEATBACK ASSEMBLY LH Removal
6. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
7. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
8. DISCONNECT REAR SEAT CENTER OUTER BELT ASSEMBLY

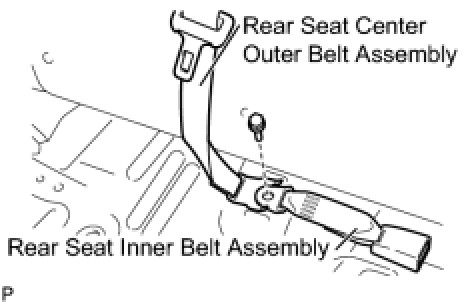

(a) Remove the bolt and the rear seat inner belt assembly, and disconnect the rear seat center outer belt assembly.
9. REMOVE REAR SEATBACK OUTER HINGE COVER (for RH Side) Removal
10. REMOVE REAR SEATBACK INNER HINGE COVER (for RH Side) Removal
11. REMOVE REAR SEATBACK ASSEMBLY RH Removal
12. REMOVE SEAT BELT ANCHOR COVER CAP





(a) Disengage the 2 claws and remove the seat belt anchor cover cap.
13. REMOVE REAR SEAT SHOULDER BELT HOLE COVER





(a) Disengage the 2 claws and 2 guides, and remove the rear seat shoulder belt hole cover.
14. REMOVE REAR SEATBACK BOARD Disassembly
15. REMOVE REAR SEAT CENTER OUTER BELT ASSEMBLY





(a) Remove the bolt and the rear seat center outer belt assembly.
16. REMOVE REAR DOOR SCUFF PLATE LH Removal
17. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH Removal
18. REMOVE REAR DOOR SCUFF PLATE RH Removal
19. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH Removal
20. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
21. REMOVE DECK BOARD ASSEMBLY Removal
22. REMOVE NO. 2 DECK BOARD Removal
23. REMOVE JACK CARRIER ASSEMBLY
24. REMOVE JACK ASSEMBLY Removal
25. REMOVE DECK FLOOR BOX LH Removal
26. REMOVE DECK FLOOR BOX RH Removal
27. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR Removal
28. REMOVE LUGGAGE COMPARTMENT TRAY Removal
29. REMOVE REAR DECK TRIM COVER Removal
30. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY (for LH Side) Removal
31. REMOVE REAR SEAT SIDE GARNISH LH Removal
32. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

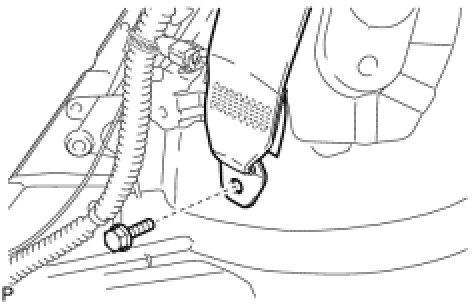

(a) Remove the bolt and disconnect the floor end of the rear seat 3 point type belt assembly LH.
33. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side) Removal
34. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side) Removal
35. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH Removal
36. REMOVE SIDE DECK TRIM PANEL ASSEMBLY LH Removal
37. REMOVE QUARTER PILLAR GARNISH LH Removal
38. REMOVE ROOF SIDE INNER GARNISH LH Removal
39. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY (for RH Side) Removal
40. REMOVE REAR SEAT SIDE GARNISH RH Removal
41. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

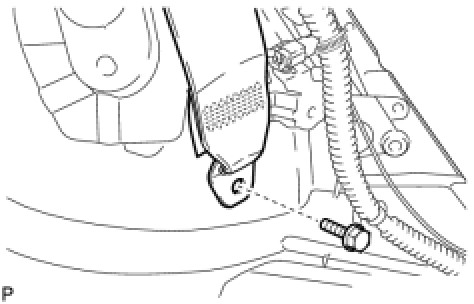

(a) Remove the bolt and disconnect the floor end of the rear seat 3 point type belt assembly RH.
42. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side) Removal
43. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side) Removal
44. REMOVE REAR COMBINATION LIGHT SERVICE COVER RH (w/ Woofer) Removal
45. REMOVE SIDE DECK TRIM PANEL ASSEMBLY RH (w/o Woofer) Removal
46. REMOVE SIDE DECK TRIM PANEL ASSEMBLY RH (w/ Woofer) Removal
47. REMOVE QUARTER PILLAR GARNISH RH Removal
48. REMOVE ROOF SIDE INNER GARNISH RH Removal
49. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY





(a) Remove the bolt and disconnect the shoulder anchor of the rear seat 3 point type belt assembly.

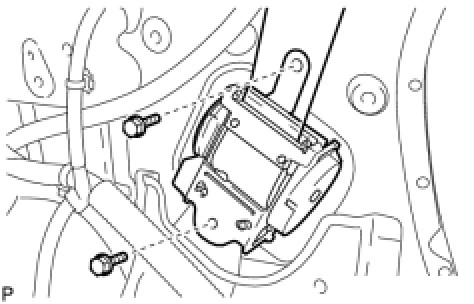

(b) Remove the 2 bolts and the rear seat 3 point type belt assembly.
