Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Matrix FWD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Brakes and Traction Control
>>
Steering Angle Sensor
>>
Service and Repair
>>
Components
Components
BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS:
STEERING ANGLE SENSOR
(w/ VSC): COMPONENTS

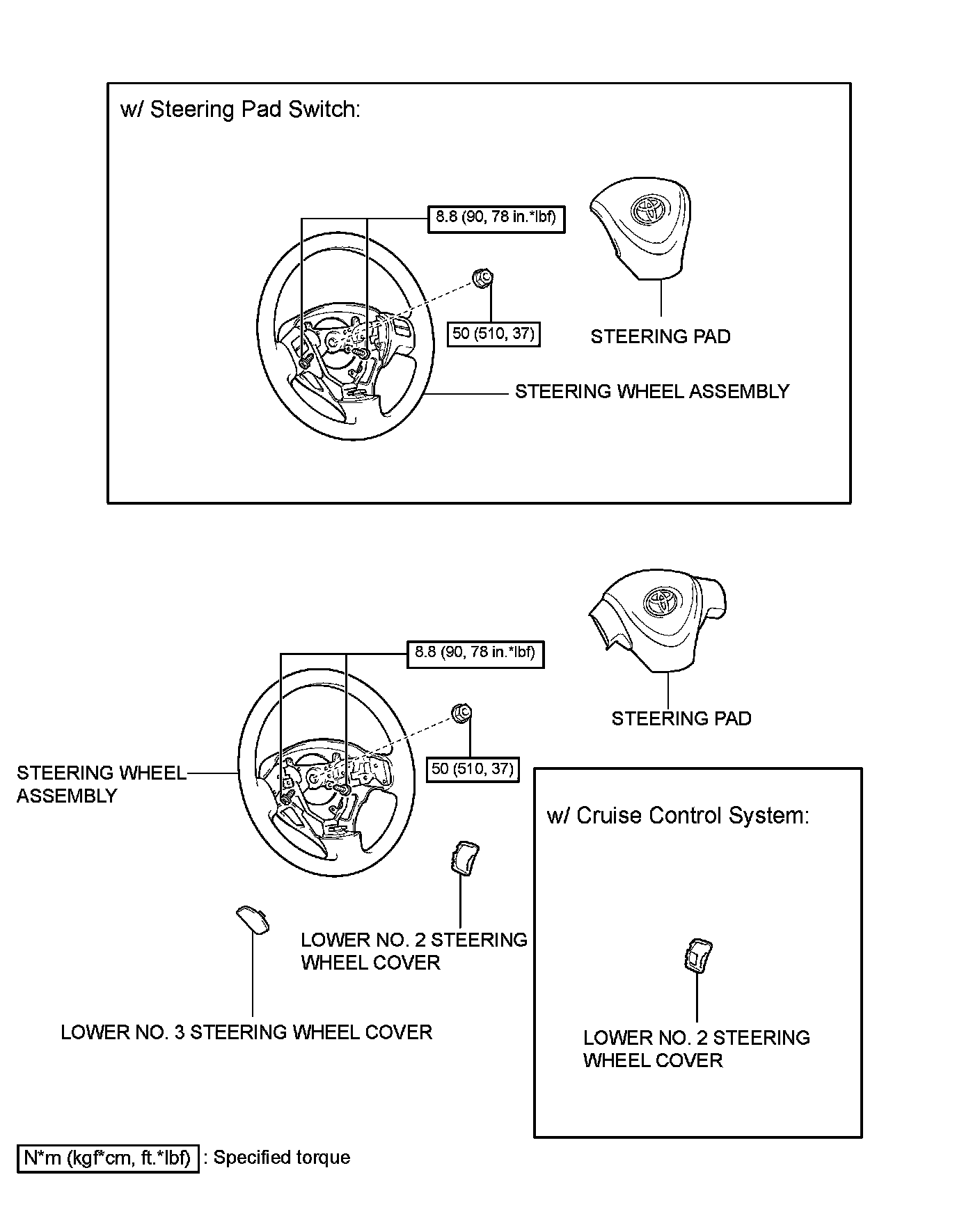

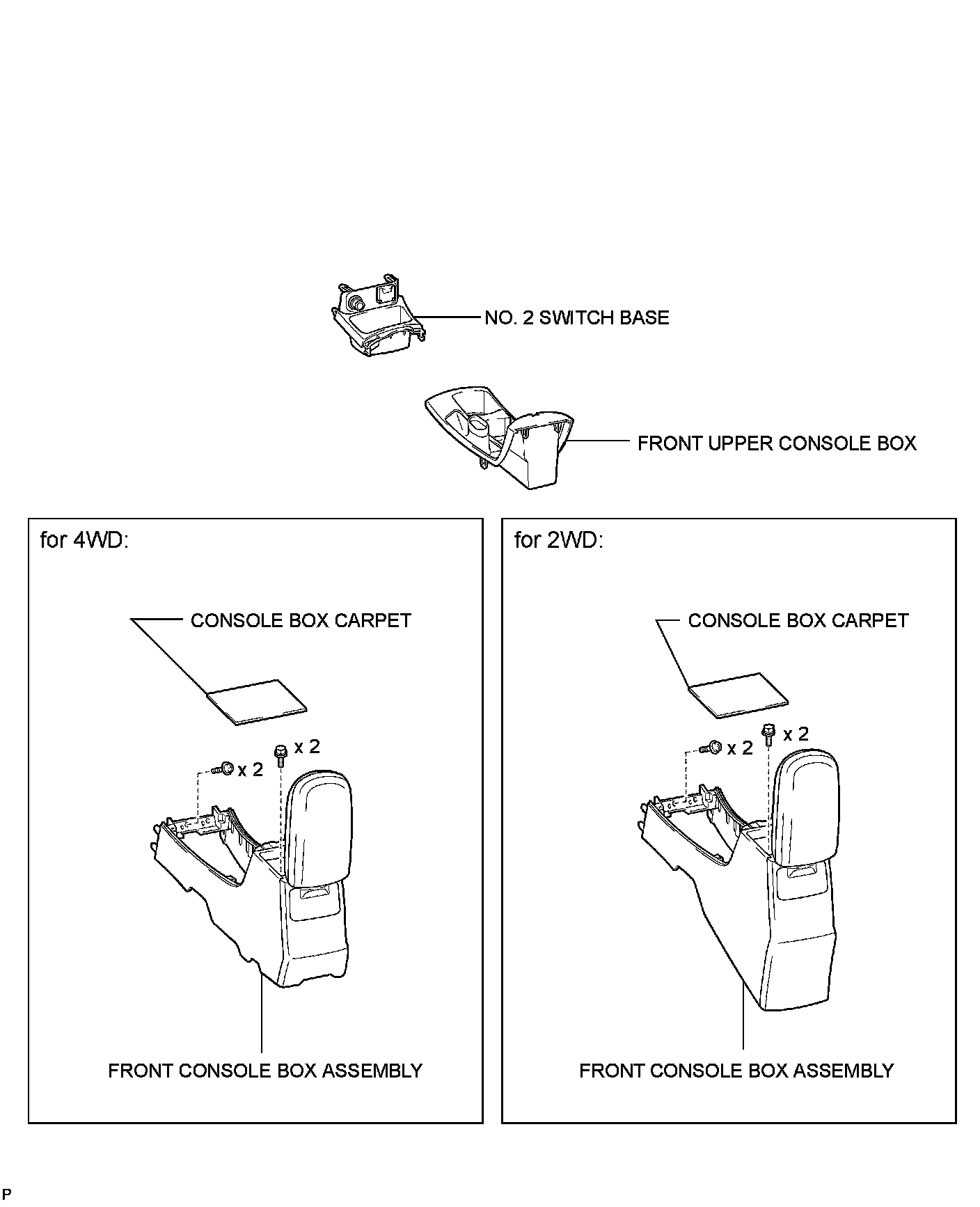

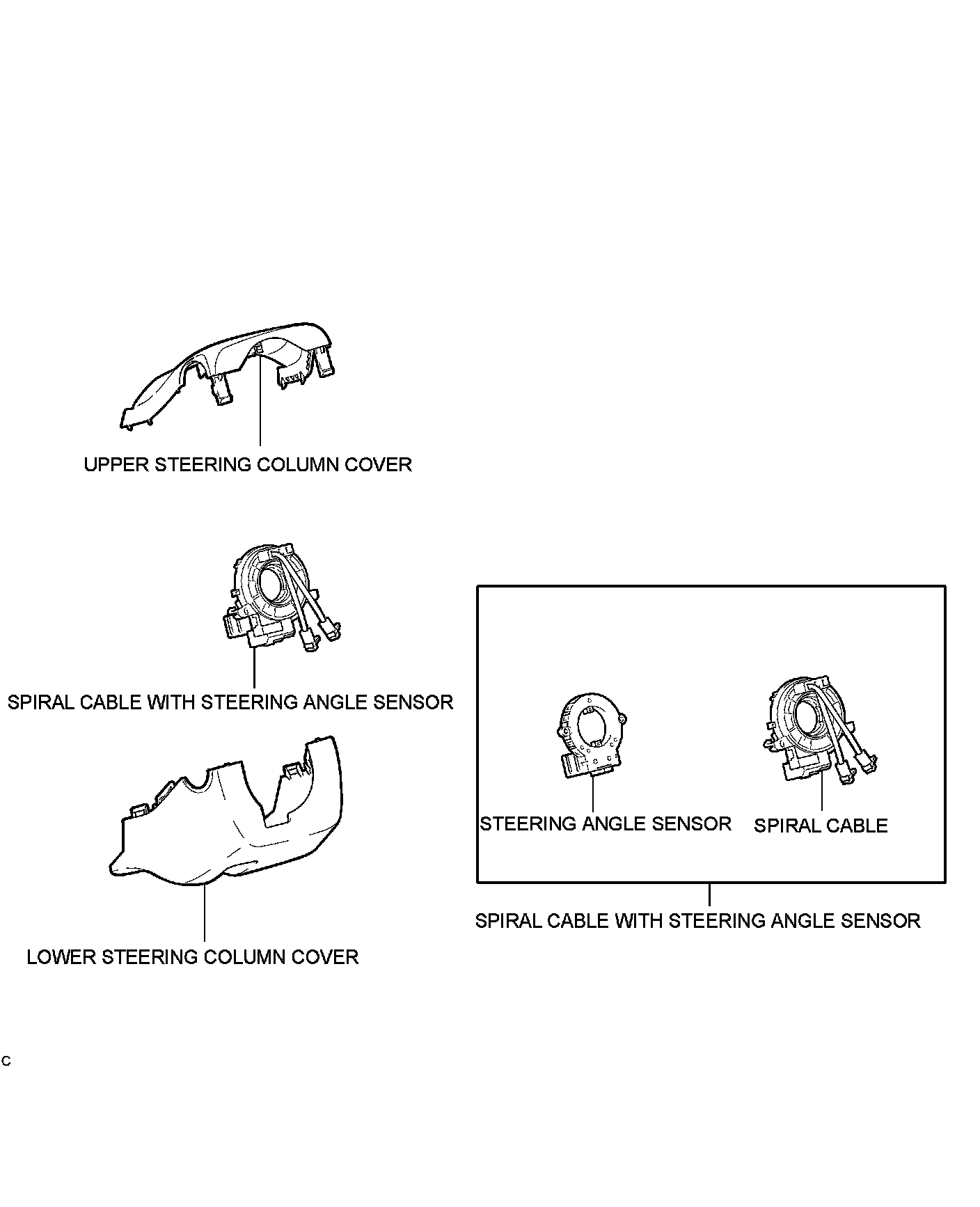

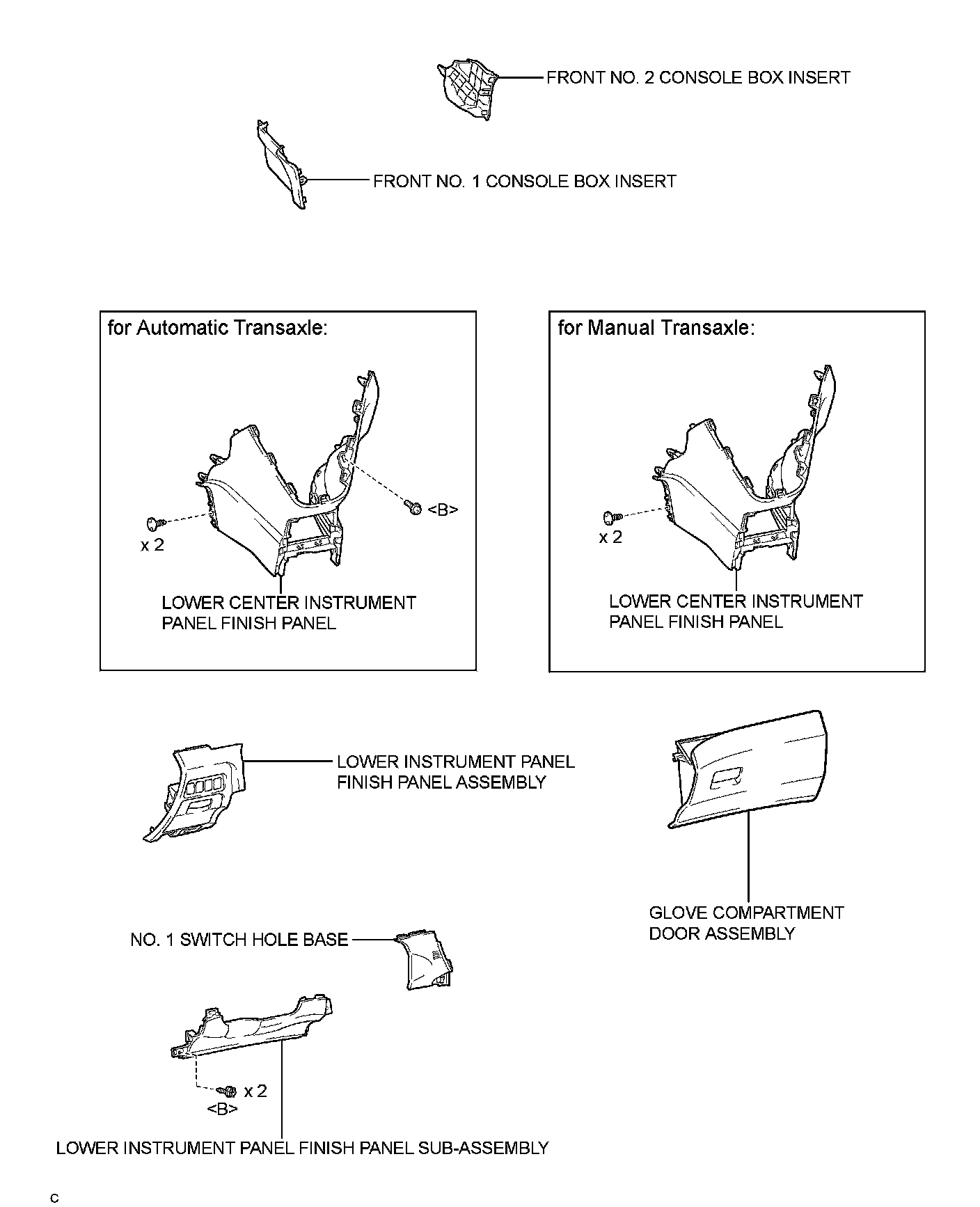

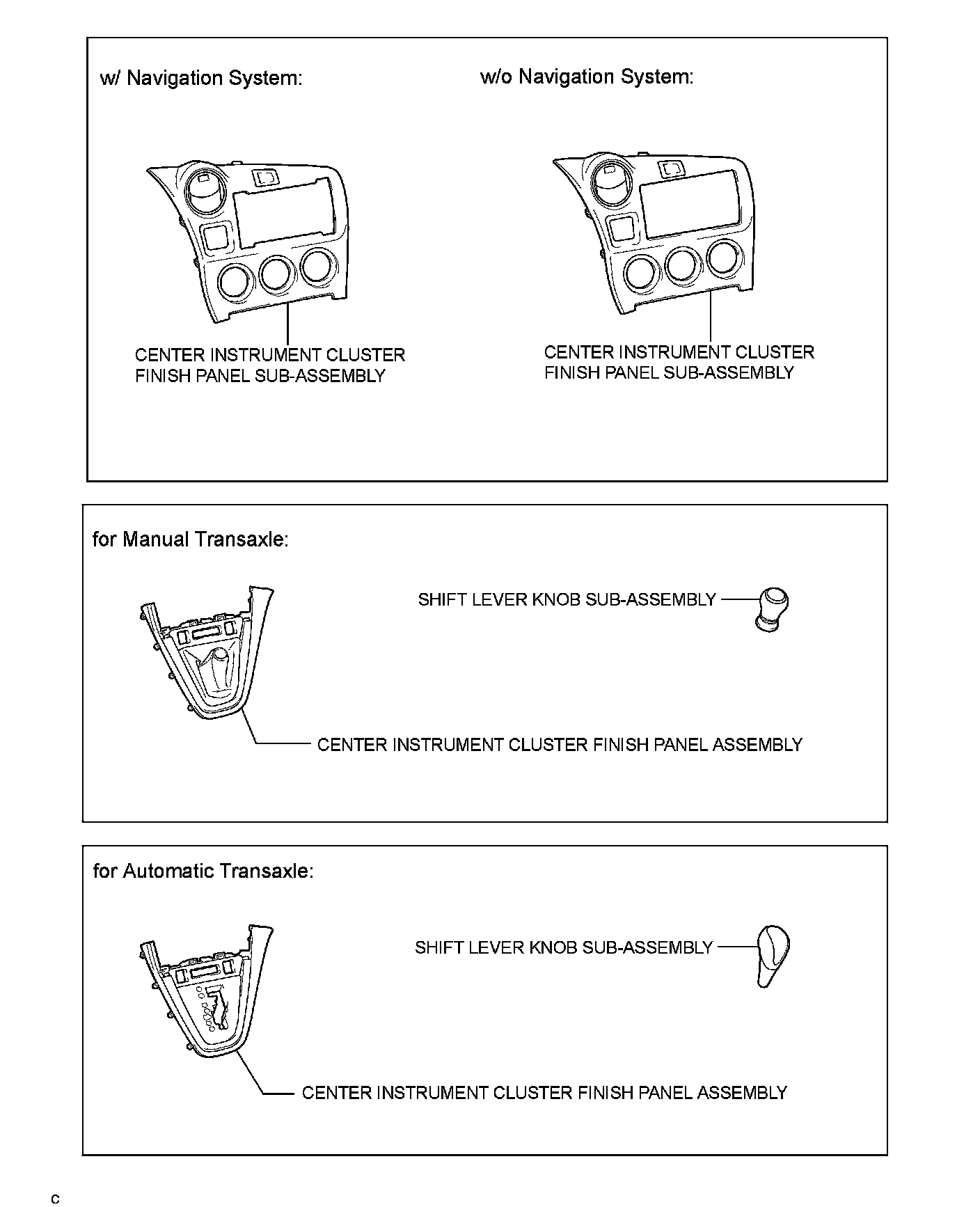

COMPONENTS
ILLUSTRATION
