Removal

C59 MANUAL TRANSMISSION / TRANSAXLE: BACK-UP LIGHT SWITCH: REMOVAL

REMOVAL

1. REMOVE NO. 2 CYLINDER HEAD COVER Removal
2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal
3. REMOVE AIR CLEANER CASE Removal
4. DISCONNECT TRANSMISSION CONTROL SHIFT CABLE

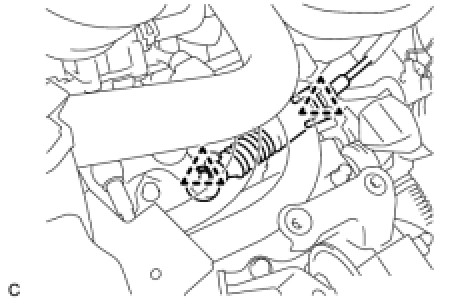

(a) Remove the 2 clips, and disconnect the transmission control shift cable.
5. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY

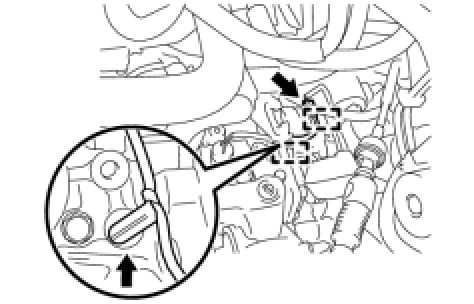

(a) Disconnect the back-up light switch connector and 2 clamps.

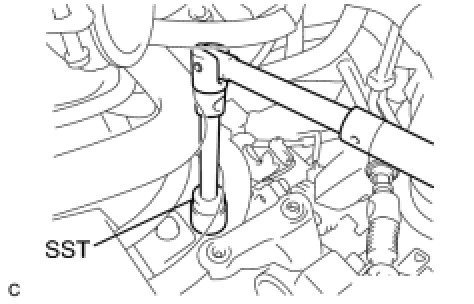

(b) Using SST, remove the back-up light switch and gasket from the transaxle case.
SST: 09817-16011
