Removal

POWER OUTLETS (INT): POWER OUTLET SOCKET: REMOVAL

REMOVAL

1. REMOVE FRONT UPPER CONSOLE BOX Removal
2. REMOVE NO. 2 SWITCH HOLE BASE Removal

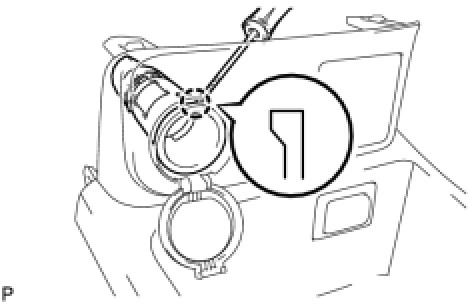

3. REMOVE POWER POINT SOCKET ASSEMBLY





(a) Disengage the claw and remove the power point socket assembly.

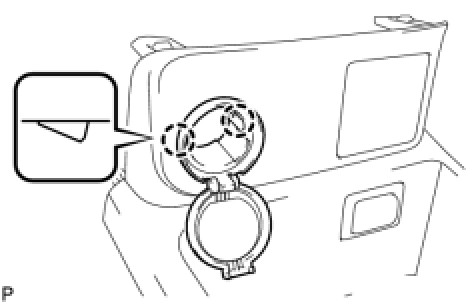

4. REMOVE POWER OUTLET SOCKET COVER





(a) Disengage the 2 claws and remove the power outlet socket cover.
