2ZR-FE STARTING: STARTER: INSTALLATION

INSTALLATION

1. INSTALL STARTER ASSEMBLY

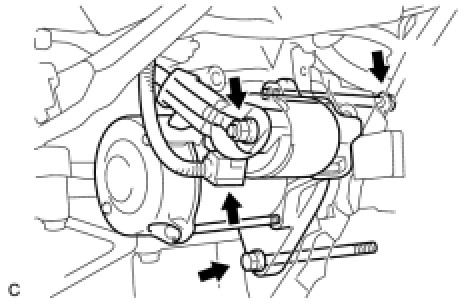

(a) Install the starter assembly with the 2 bolts.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)
(b) Connect the connector.
(c) Connect terminal 30 with the nut.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
(d) Close the terminal cap.
2. INSTALL TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY Installation
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
