Replacement

U341E AUTOMATIC TRANSMISSION / TRANSAXLE: DIFFERENTIAL OIL SEAL: REPLACEMENT

REPLACEMENT

1. REMOVE ENGINE UNDER COVER LH
2. REMOVE ENGINE UNDER COVER RH
3. DRAIN AUTOMATIC TRANSAXLE FLUID Removal
4. REMOVE FRONT DRIVE SHAFT ASSEMBLY Removal

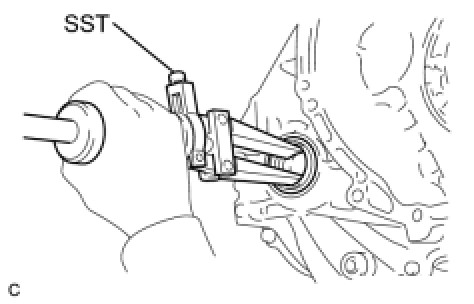

5. REMOVE NO. 1 TRANSAXLE CASE OIL SEAL





(a) Using SST, remove the No. 1 transaxle case oil seal from the transaxle case.
SST: 09308-00010

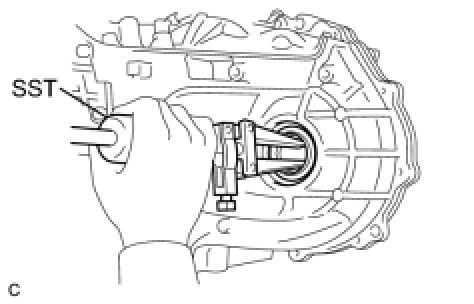

6. REMOVE NO. 2 TRANSAXLE CASE OIL SEAL





(a) Using SST, remove the No. 2 transaxle case oil seal from the transaxle housing.
SST: 09308-00010

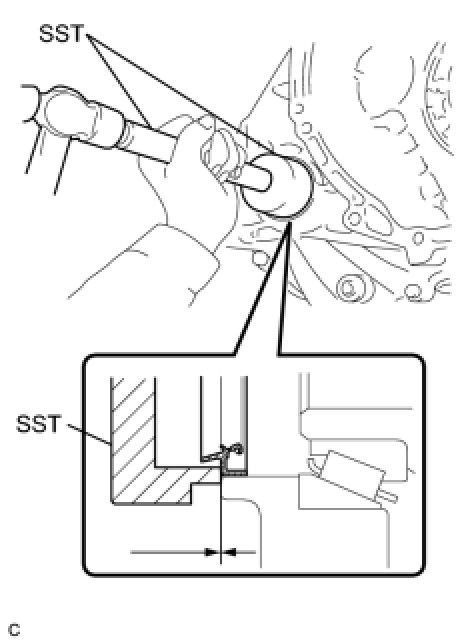

7. INSTALL NO. 1 TRANSAXLE CASE OIL SEAL





(a) Using SST and a hammer, install a new oil seal to the transaxle housing.
SST: 09387-00010
SST: 09950-70010
09951-07200
Standard depth:
-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)
NOTE: Do not damage the oil seal lip.

(b) Coat the lip of the oil seal with MP grease.

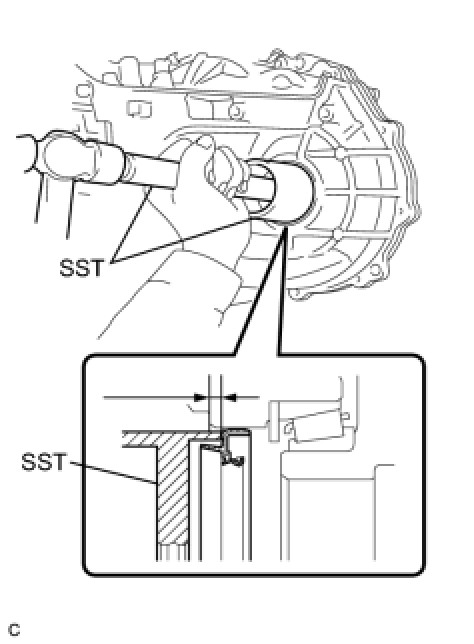

8. INSTALL NO. 2 TRANSAXLE CASE OIL SEAL





(a) Using SST and a hammer, install a new oil seal to the transaxle case.
SST: 09726-27012
09726-02041
SST: 09950-70010
09951-07200
Standard depth:
2.2 to 3.2 mm (0.0866 to 0.126 in.)
NOTE: Do not damage the oil seal lip.

(b) Coat the lip of the oil seal with MP grease.
9. INSTALL FRONT DRIVE SHAFT ASSEMBLY Installation
10. ADD AUTOMATIC TRANSAXLE FLUID
11. INSPECT TRANSAXLE FLUID LEVEL Procedures
12. INSTALL ENGINE UNDER COVER LH
13. INSTALL ENGINE UNDER COVER RH
