Part 1

U341E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE UNIT: REASSEMBLY

REASSEMBLY

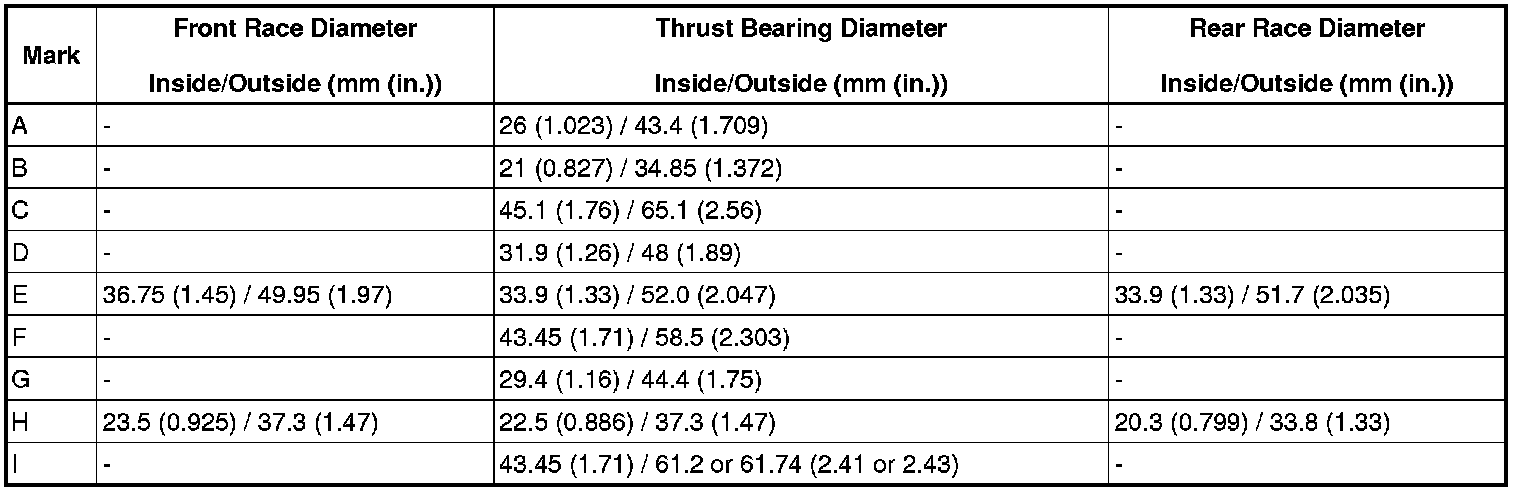

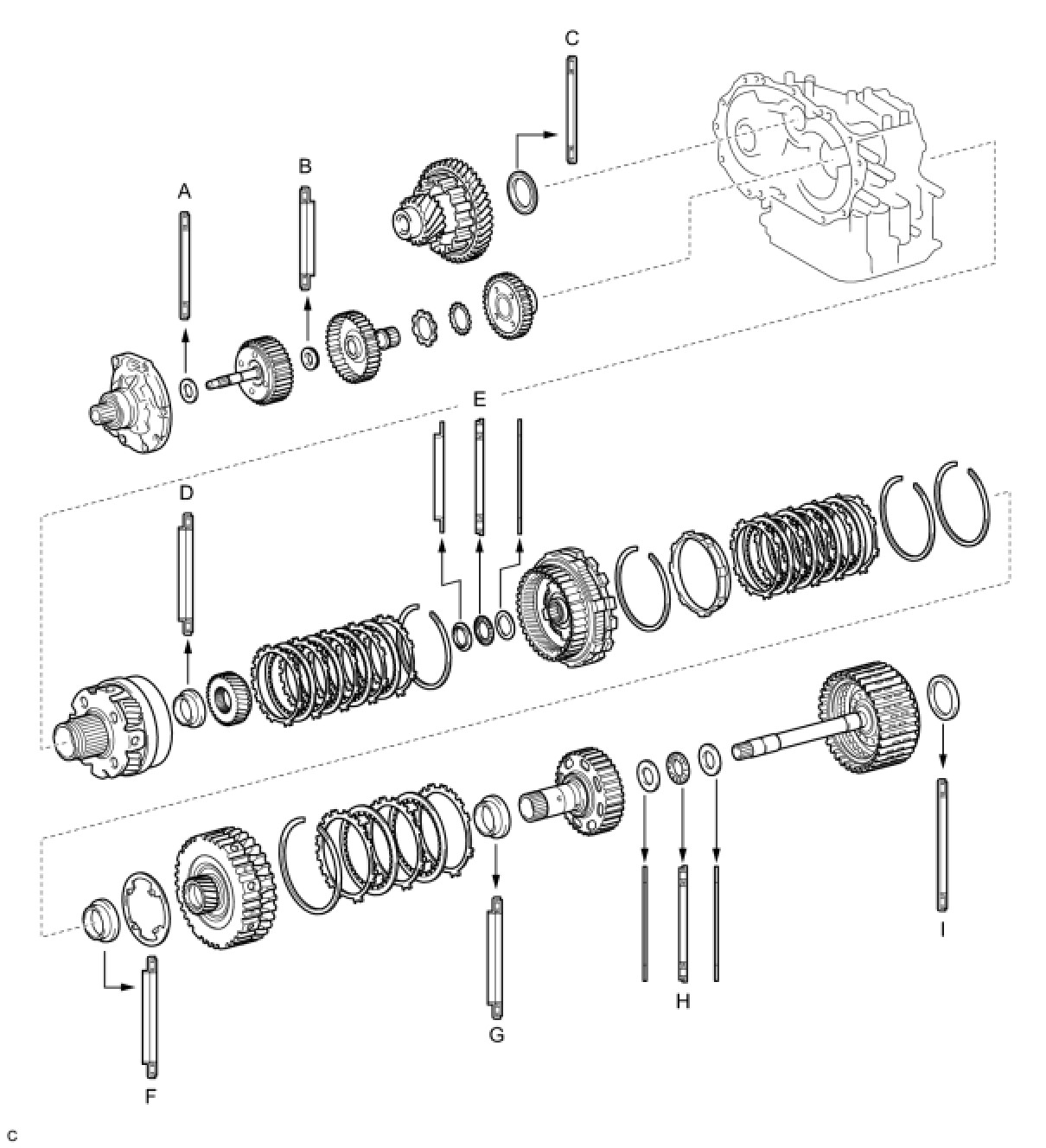

1. BEARING POSITION
(a) Check each bearing position and installation direction.

2. INSPECT DIFFERENTIAL CASE TAPERED ROLLER BEARING PRELOAD Transaxle Unit

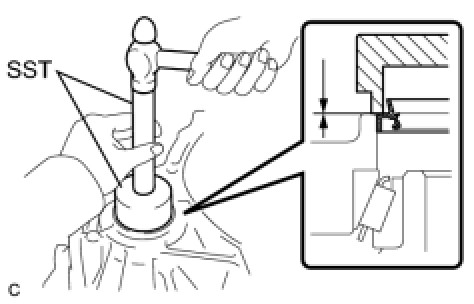

3. INSTALL NO. 1 TRANSAXLE CASE OIL SEAL

(a) Coat the lip of a new No. 1 transaxle case oil seal with MP grease.

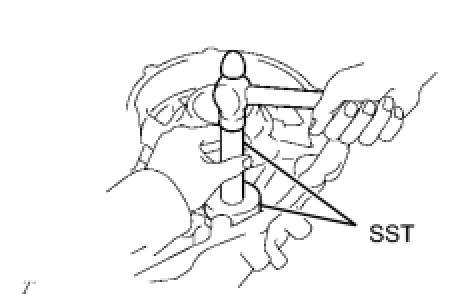

(b) Using SST and a hammer, drive in the No. 1 transaxle case oil seal.

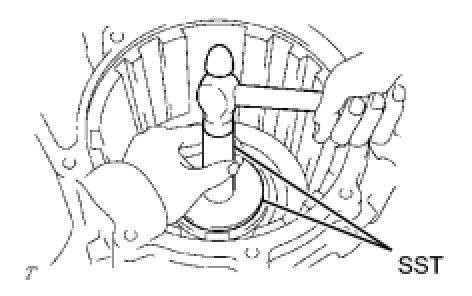

SST: 09554-14010
SST: 09950-70010
09951-07100
Oil seal driven in depth:
-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

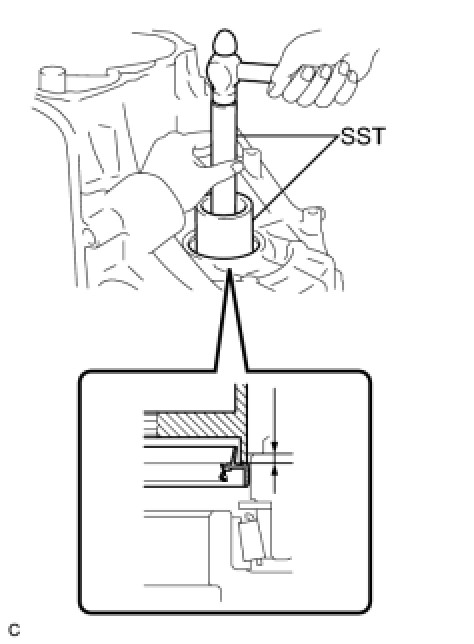

4. INSTALL NO. 2 TRANSAXLE CASE OIL SEAL

(a) Coat the lip of a new No. 2 transaxle case oil seal with MP grease.
(b) Using SST and a hammer, drive in the No. 2 transaxle case oil seal.
SST: 09726-27012
09726-02041
SST: 09950-70010
09951-07150
Oil seal driven in depth:
2.2 to 3.2 mm (0.0866 to 0.126 in.)
5. INSTALL FRONT DRIVE PINION REAR TAPERED ROLLER BEARING

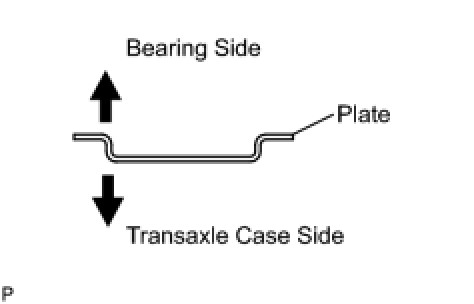

(a) Install the No. 1 transaxle case plate onto the transaxle case.

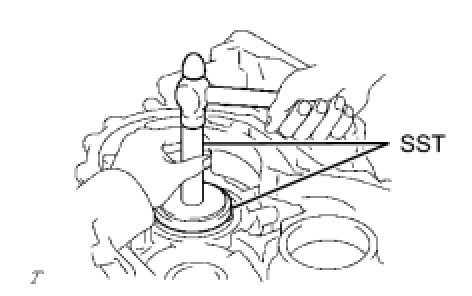

(b) Using SST and a hammer, install the front drive pinion rear tapered roller bearing to the transaxle case.
SST: 09950-60010
09951-00610
SST: 09950-70010
09951-07150
6. INSTALL FRONT DRIVE PINION FRONT TAPERED ROLLER BEARING
(a) Install the thrust bearing to the transaxle housing.

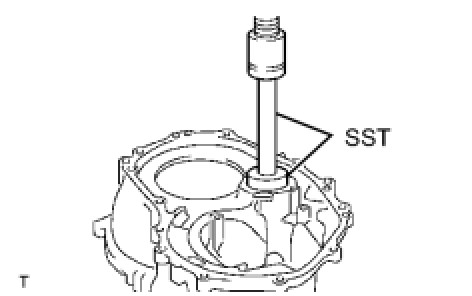

(b) Using SST and a press, install a new front drive pinion front tapered roller bearing to the transaxle housing.
SST: 09950-60010
09951-00650
SST: 09950-70010
09951-07150
7. INSTALL DIFFERENTIAL GEAR LUBE APPLY TUBE

(a) Install the differential gear lube apply tube to the transaxle housing.
8. INSTALL BEARING LOCK PLATE

(a) Install the bearing lock plate to the transaxle housing with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
9. INSTALL COUNTER DRIVE GEAR HOLE SNAP RING

(a) Using a screwdriver, install the counter drive gear hole snap ring to the transaxle case.
10. INSTALL COUNTER DRIVE GEAR BEARING LH

(a) Using SST and a hammer, install the counter drive gear bearing outer race LH to the transaxle case.
SST: 09950-60020
09951-00890
SST: 09950-70010
09951-07150
(b) Install the counter drive gear bearing inner race LH and angular ball to the transaxle case.
11. INSTALL COUNTER DRIVE GEAR BEARING RH

(a) Using SST and a hammer, install the counter drive gear bearing outer race RH to the transaxle case.
SST: 09950-60020
09951-00890
SST: 09950-70010
09951-07150
(b) Install the counter drive gear bearing RH to the transaxle case.

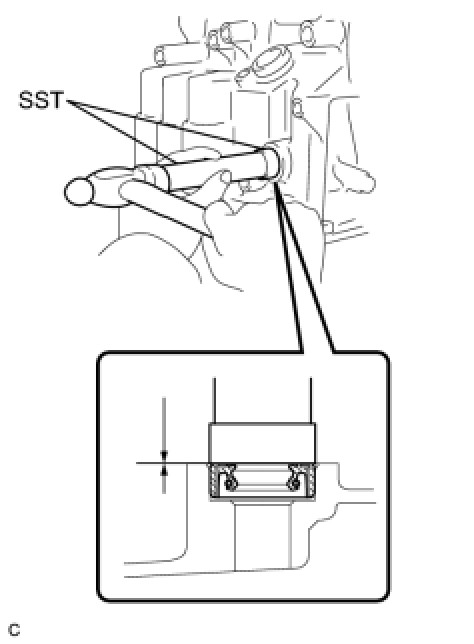

12. INSTALL MANUAL VALVE LEVER SHAFT OIL SEAL
(a) Coat the lip of a new manual valve lever shaft oil seal with MP grease.

(b) Using SST and a hammer, install the new manual valve lever shaft oil seal.
SST: 09950-60010
09951-00220
SST: 09950-70010
09951-07100
Oil seal driven in depth:
-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

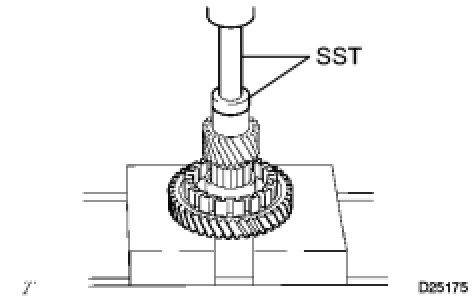

13. INSTALL DIFFERENTIAL DRIVE PINION

(a) Using SST and a press, install the differential drive pinion to the counter driven gear.
SST: 09950-60010
09951-00350
SST: 09950-70010
09951-07150
NOTE: When replacing the counter driven gear, replace the counter drive gear in the transaxle case as well.

Press in the differential drive pinion until it comes into contact with the counter driven gear.
14. INSTALL DIFFERENTIAL DRIVE PINION PLUG

(a) Using SST and a plastic hammer, install a new differential drive pinion plug to the differential drive pinion.
SST: 09221-25026
09221-00071
Standard clearance:
2.5 to 3.5 mm (0.0984 to 0.137 in.)
15. INSTALL COUNTER DRIVEN GEAR

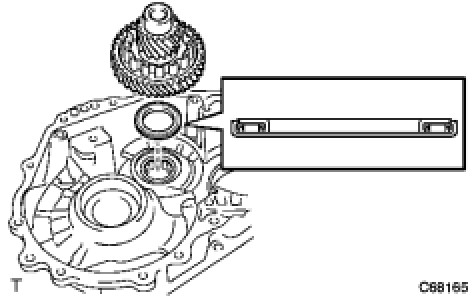

(a) Install the counter driven gear and drive pinion thrust bearing to the transaxle case.
16. INSTALL PARKING LOCK PAWL
(a) Coat the parking lock pawl shaft with ATF.

(b) Install the parking lock pawl, parking lock pawl shaft torsion spring and parking lock pawl shaft to the transaxle case.
NOTE: Check that the parking lock pawl moves smoothly.

17. INSTALL MANUAL VALVE LEVER SHAFT

(a) Install the manual valve lever shaft to the transaxle case.
NOTE: Do not damage the oil seal lip.

18. INSTALL PARKING LOCK ROD SUB-ASSEMBLY

(a) Install the parking lock rod sub-assembly to the manual valve lever.
19. INSTALL MANUAL VALVE LEVER SUB-ASSEMBLY
(a) Coat the manual valve lever sub-assembly with ATF.
(b) Install the manual valve lever and a new manual valve lever spacer to the manual valve lever shaft.

(d) Turn the spacer and the lever shaft to align the smaller hole of the spacer with the staking position mark on the lever shaft.
(e) Using a pin punch, stake the spacer through the small hole.
(f) Check that the spacer does not turn.
20. INSTALL MANUAL VALVE LEVER SHAFT RETAINER SPRING

(a) Install the manual valve lever shaft retainer spring to the manual valve lever shaft.
21. INSTALL PARKING LOCK PAWL BRACKET

(a) Install the parking lock pawl bracket, parking lock rod and cam guide to the transaxle case with the 3 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
22. INSTALL COUNTER DRIVE GEAR

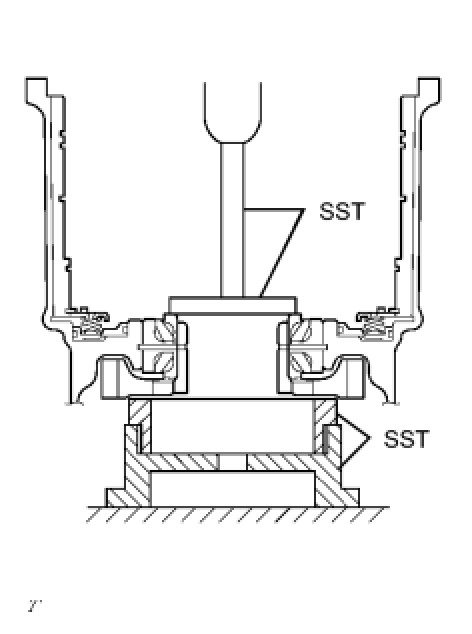

(a) Using SST and a press, install the counter drive gear to the transaxle case.
SST: 09223-15030
SST: 09527-17011
SST: 09950-60010
09951-00650
SST: 09950-70010
09951-07150
23. INSTALL PLANETARY GEAR ASSEMBLY

(a) Using SST and a press, install the planetary gear assembly to the transaxle case.
SST: 09950-60010
09951-00480
SST: 09223-15030
SST: 09527-17011
SST: 09950-70010
09951-07150
24. INSTALL COUNTER DRIVE GEAR NUT

(a) Secure the counter driven gear with the parking lock pawl.

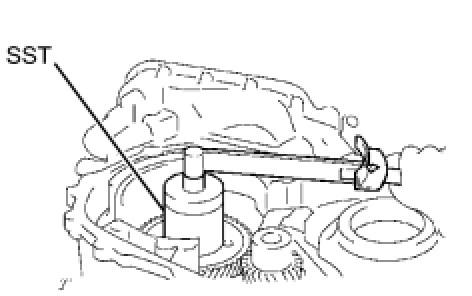

(b) Using SST, install a new lock nut washer and nut.
SST: 09387-00120
Torque: 280 Nm (2855 kgf-cm, 207 ft-lbf)

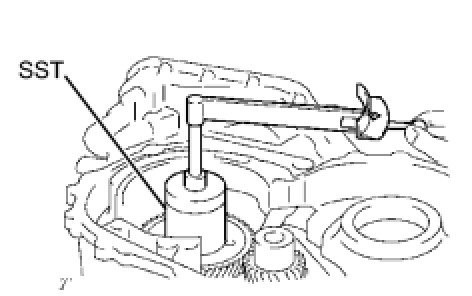

(c) Using SST and a small torque wrench, measure the rotating torque while turning the counter drive gear at 60 turns per minute.
SST: 09387-00120
Rotating torque:
0.20 to 0.49 N*m (2.0 to 5.0 kgf*cm, 1.8 to 4.3 in.*lbf)

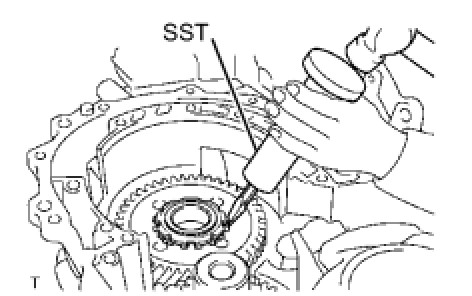

(d) Using SST and a hammer, stake the lock nut washer.
SST: 09930-00010
25. INSTALL NO. 2 1ST AND REVERSE BRAKE PISTON O-RING

(a) Coat 2 new No. 2 1st and reverse brake piston O-rings with ATF, and install them to the No. 2 1st and reverse brake piston.
26. INSTALL NO. 2 1ST AND REVERSE BRAKE PISTON

(a) Coat the No. 2 1st and reverse brake piston with ATF, and install it to the transaxle case.
NOTE: Do not damage the oil seal lip.

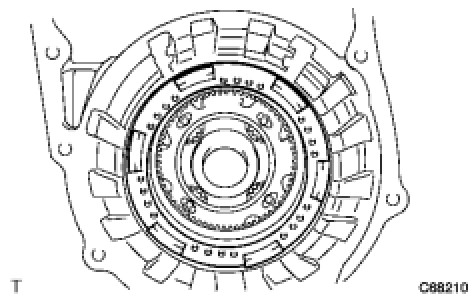

27. INSTALL 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

(a) Install the 1st and reverse brake return spring sub-assembly to the transaxle case.
(b) Using SST, a press and a screwdriver, install the snap ring.
SST: 09387-00070
28. INSTALL 1ST AND REVERSE BRAKE DISC

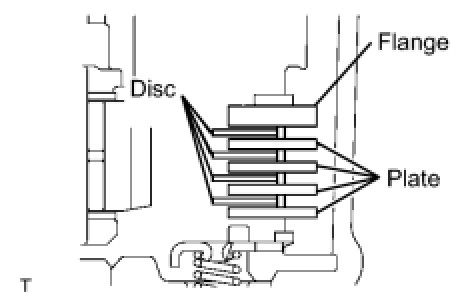

(a) Install the 4 plates, 4 discs and flange to the transaxle case.
(b) Using a screwdriver, install the snap ring.
29. INSPECT PACK CLEARANCE OF 1ST AND REVERSE BRAKE Transaxle Unit
30. INSTALL FRONT PLANETARY SUN GEAR

(a) Install the planetary sun gear and needle roller bearing to the planetary gear assembly.
31. INSTALL 2ND BRAKE CYLINDER O-RING

(a) Coat 2 new 2nd brake cylinder O-rings with ATF, and install them into the 2nd brake cylinder.
NOTE: Do not damage the O-rings.

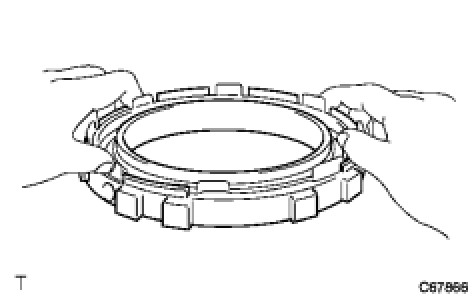

32. INSTALL 2ND BRAKE PISTON

(a) Coat the 2nd brake piston with ATF, and install it into the 2nd brake cylinder.
CAUTION: Do not damage the O-rings when pressing the 2nd brake piston into the 2nd brake cylinder by hand.

33. INSTALL 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY

(a) Install the piston return spring.

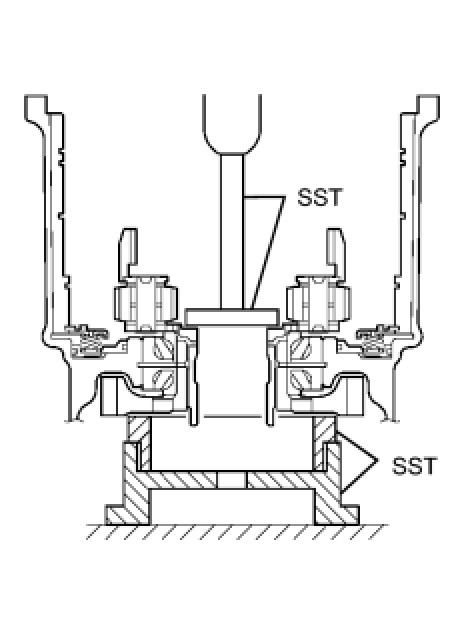

(b) Place SST on the piston return spring, and compress the piston return spring with a press.
SST: 09387-00060
(c) Using a screwdriver, install the snap ring.
NOTE: Make sure that the end gap of the snap ring is not aligned with the piston return spring claw.

34. INSTALL OUTER RACE RETAINER

(a) Install the outer race retainer to the No. 2 one-way clutch.
35. INSTALL NO. 2 ONE-WAY CLUTCH

(a) Install the No. 2 one-way clutch and 2nd brake piston assembly to the rear planetary gear assembly.

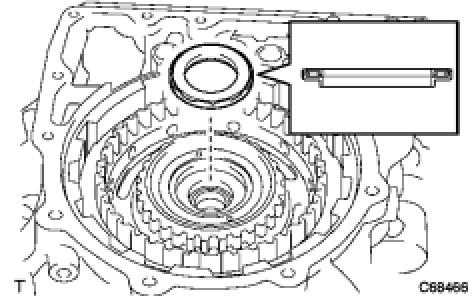

36. INSTALL REAR PLANETARY GEAR THRUST NEEDLE ROLLER BEARING

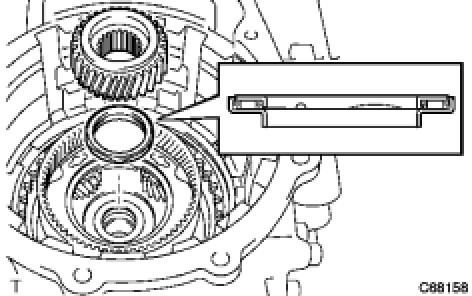

(a) Install the No. 2 thrust bearing race, the planetary gear thrust needle roller bearing and thrust bearing race to the rear planetary gear assembly.

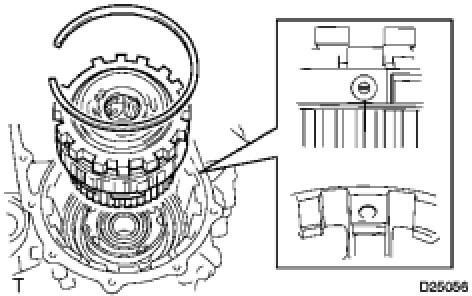

37. INSTALL REAR PLANETARY GEAR ASSEMBLY

(a) Install the rear planetary gear assembly to the transaxle case.
(b) Using a screwdriver, install the snap ring.
38. INSPECT NO. 2 ONE-WAY CLUTCH Transaxle Unit
39. INSTALL 2ND BRAKE PISTON SLEEVE

(a) Install the 2nd brake piston sleeve to the transaxle case.

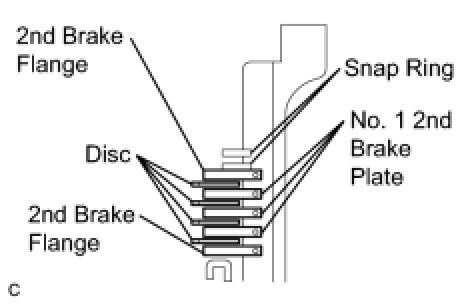

40. INSTALL 2ND BRAKE DISC

(a) Install the 4 discs, 3 No. 1 2nd brake plates and 2 2nd brake flanges to the transaxle case.

(b) Using a screwdriver, install the 2 snap rings to the transaxle case.
41. INSPECT PACK CLEARANCE OF 2ND BRAKE Transaxle Unit
42. INSTALL ONE-WAY CLUTCH ASSEMBLY

(a) Install the No. 2 thrust washer to the rear planetary gear assembly.
(b) Install the one-way clutch assembly to the rear planetary sun gear assembly.
43. INSPECT ONE-WAY CLUTCH ASSEMBLY Transaxle Unit
44. INSTALL REAR PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING

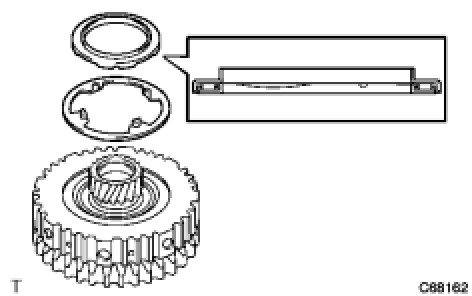

(a) Install the thrust needle roller bearing and the washer to the rear planetary sun gear.
45. INSTALL REAR PLANETARY SUN GEAR ASSEMBLY

(a) Install the rear planetary sun gear assembly.
46. INSTALL REAR NO. 2 PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING

(a) Install the rear No. 2 planetary sun gear thrust needle roller bearing to the rear planetary sun gear.
47. INSTALL DIRECT CLUTCH HUB

(a) Install the direct clutch hub.

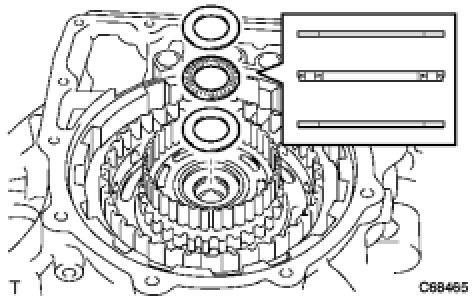

48. INSTALL THRUST NEEDLE ROLLER BEARING

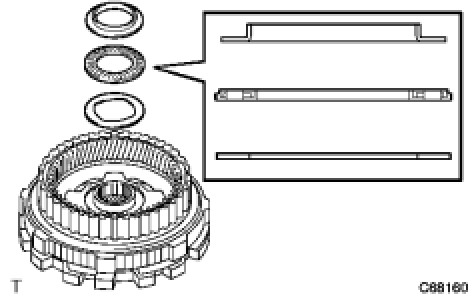

(a) Install the No. 3 thrust bearing race, the thrust needle roller bearing and the C-2 hub thrust bearing race to the direct clutch hub.
49. INSTALL 2ND COAST AND OVERDRIVE BRAKE DISC

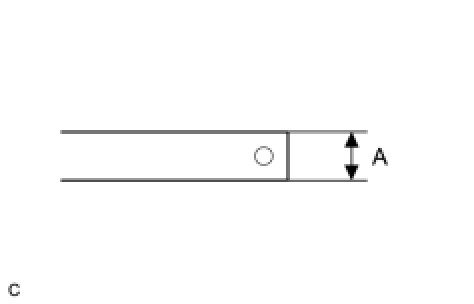

(a) Measure the flange thickness. (Dimension A)

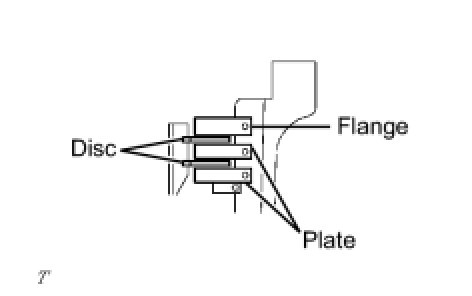

(b) Install the 2 discs, 2 plates and flange to the transaxle case.
50. INSTALL DIRECT CLUTCH DRUM O-RING

(a) Coat a new O-ring with ATF and install it to the direct clutch drum.
NOTE: Do not damage the O-ring.

51. INSTALL DIRECT CLUTCH PISTON O-RING

(a) Coat 2 new O-rings with ATF and install them to the direct clutch piston.
NOTE: Do not damage the O-rings.

52. INSTALL DIRECT CLUTCH DRUM SUB-ASSEMBLY
(a) Coat the direct clutch drum with ATF.

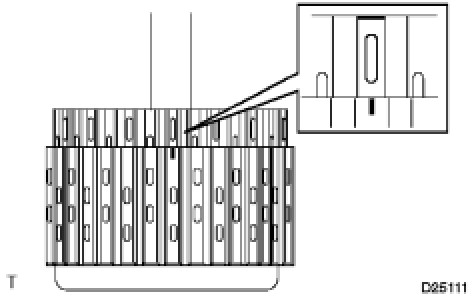

(b) Align a cutout on the intermediate shaft assembly with the matchmark on the direct clutch drum and install the direct clutch drum to the intermediate shaft assembly.
NOTE: Do not damage the O-ring or the lip of the clutch drum.
