Torque Specifications








SPECIFICATIONS: AXLE AND DIFFERENTIAL: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

AXLE

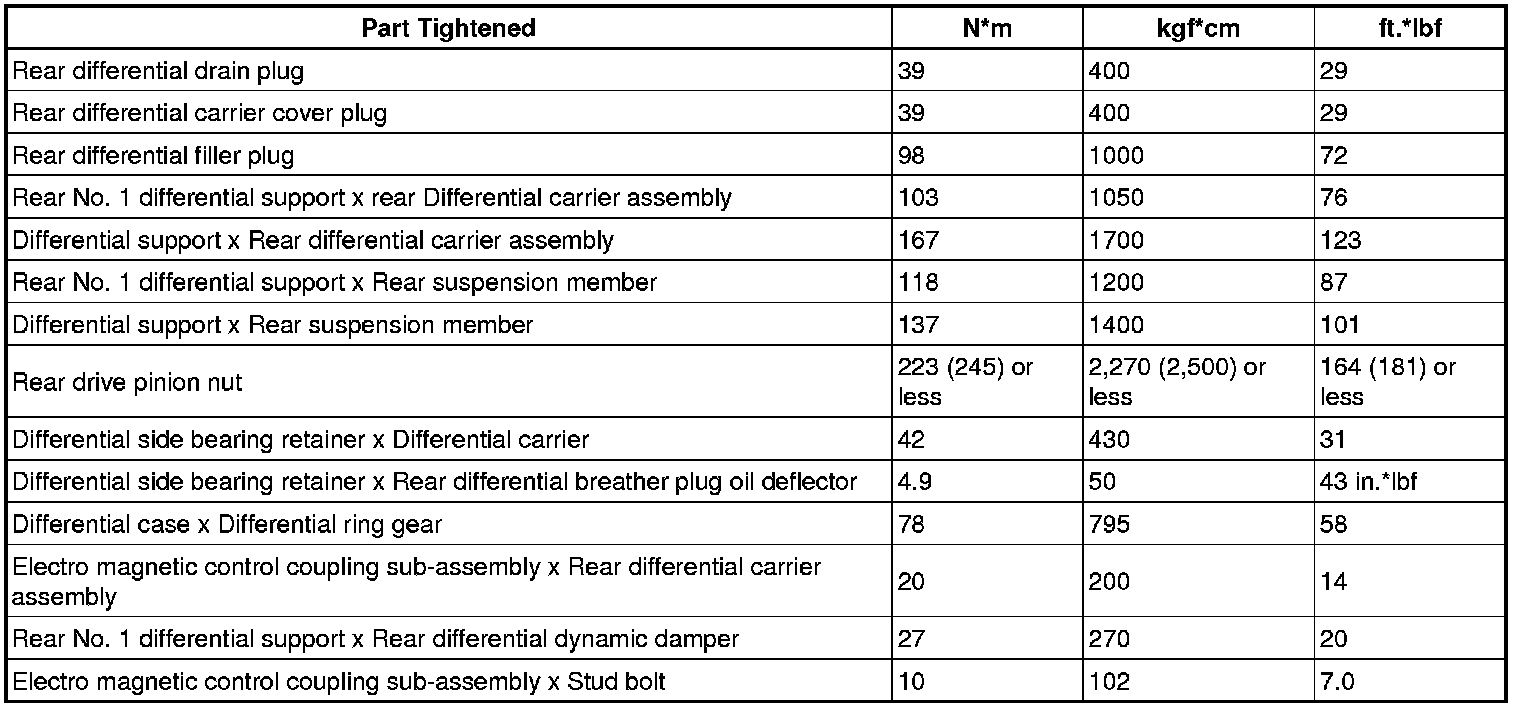

DIFFERENTIAL





( ): For use without SST
