Differential Case

C59 MANUAL TRANSMISSION / TRANSAXLE: DIFFERENTIAL CASE: INSPECTION

INSPECTION

1. INSPECT FRONT DIFFERENTIAL PINION THRUST WASHER

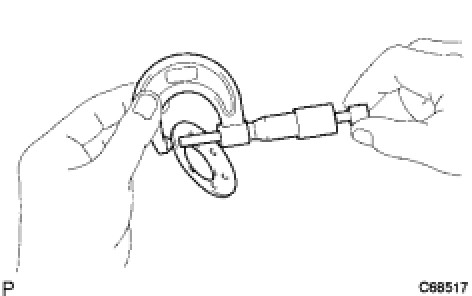

(a) Using a micrometer, measure the thickness of the front differential pinion thrust washer.
Minimum thickness:
0.92 mm (0.0362 in.)
If the thickness is less than the minimum, replace the front differential pinion thrust washer.
2. INSPECT FRONT NO. 1 DIFFERENTIAL PINION SHAFT

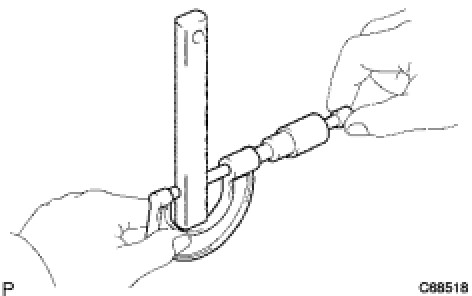

(a) Using a micrometer, measure the outer diameter of the front No. 1 differential pinion shaft.
Minimum outer diameter:
16.982 mm (0.6685 in.)
If the outer diameter is less than the minimum, replace the front No. 1 differential pinion shaft.
