Home >> Toyota >> 2009 >> Matrix FWD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Locations

Windows: Locations

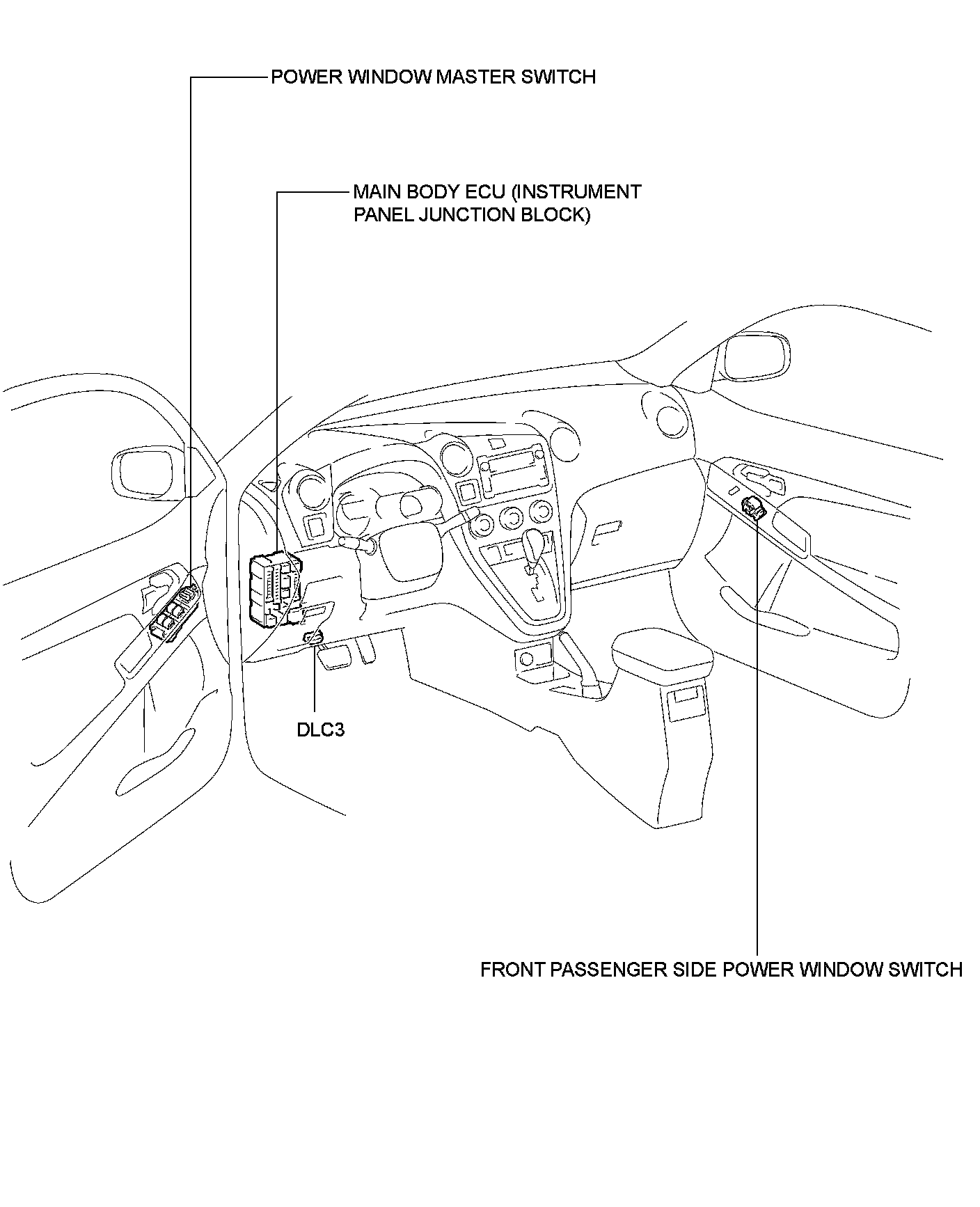

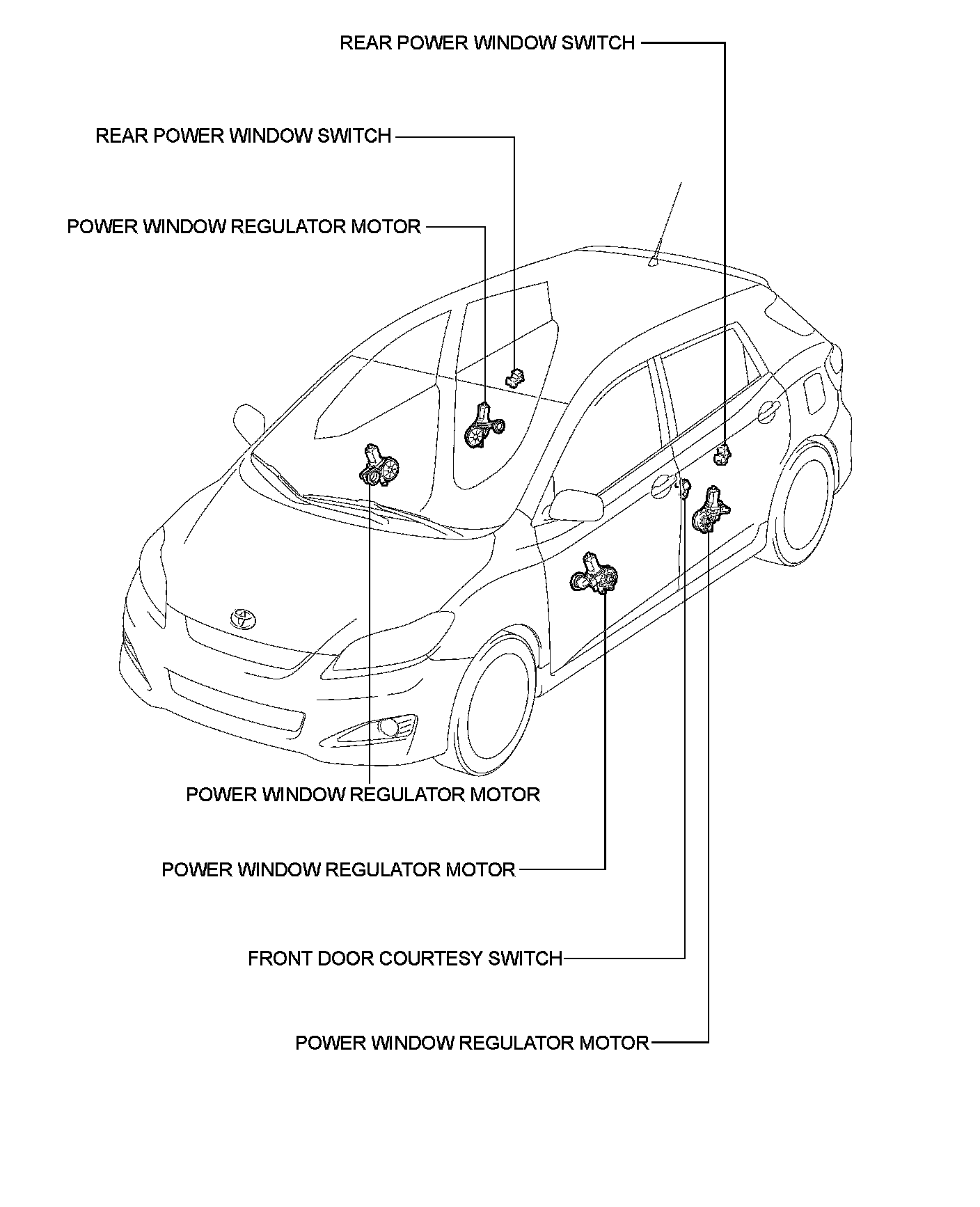

WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
