On-Vehicle Inspection

WIPER / WASHER: FRONT WIPER MOTOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY





(a) Operate the front wiper motor.
(b) Stop the front wiper motor operation.
(c) Check the automatic stop position.
OK:

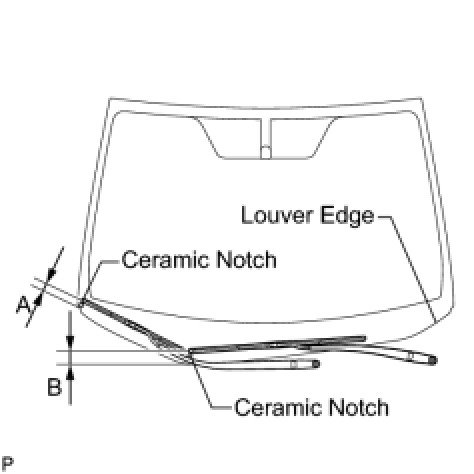

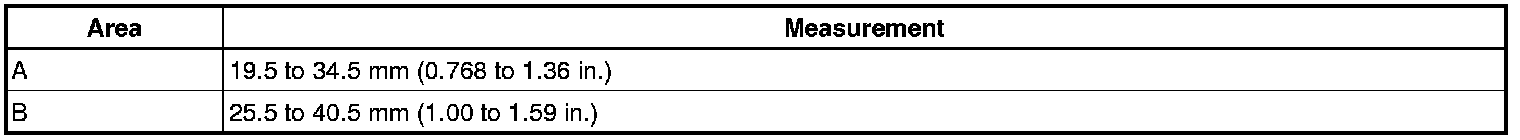

The front wipers stop at the positions shown in the illustration.
If the result is not as specified, the front wiper motor may have a malfunction.
