Wire and Wire, Ground Points In Engine Compartment
Wire and Wire, Ground Points In Engine Compartment

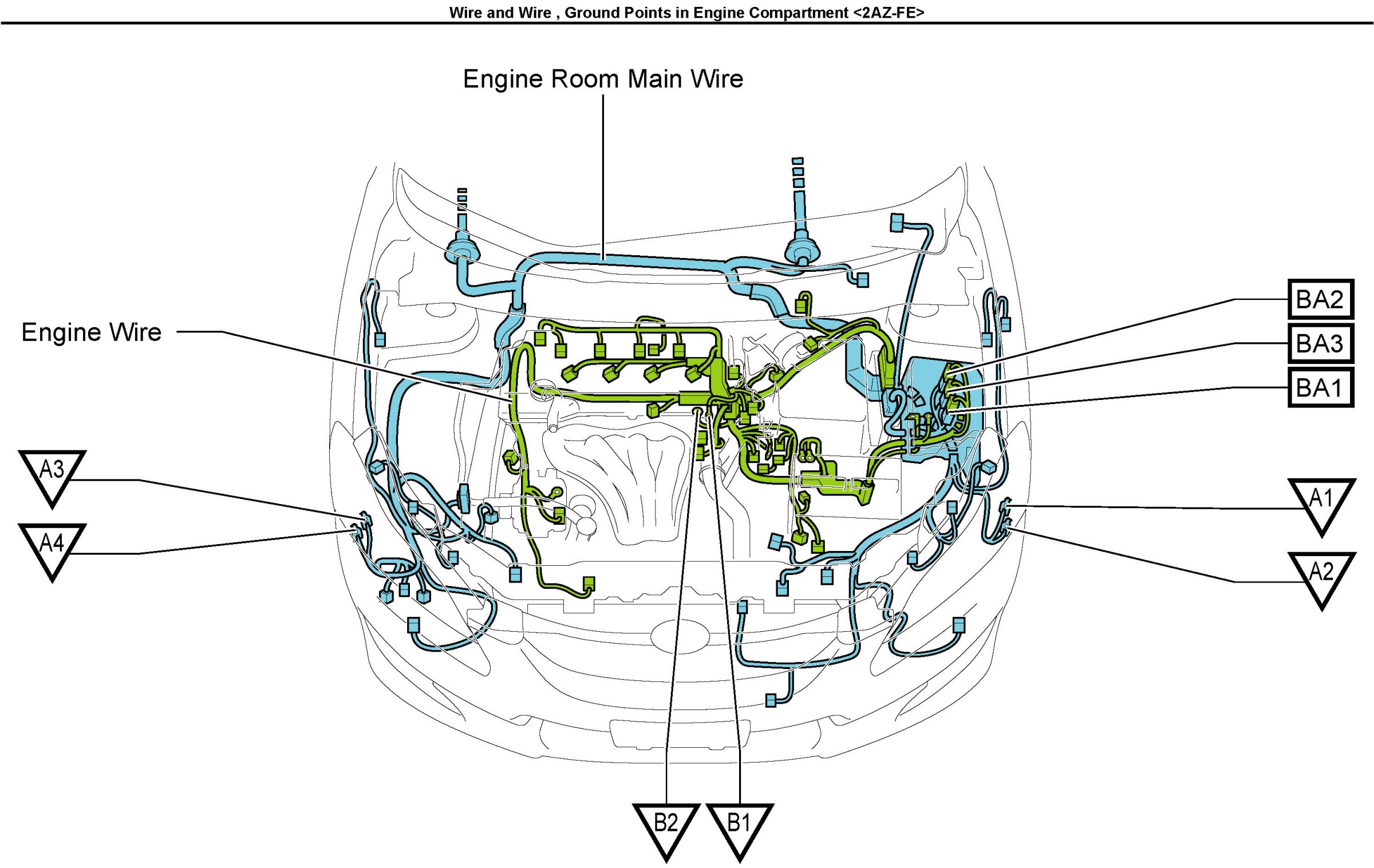

BA1-BA3, A1-B2:

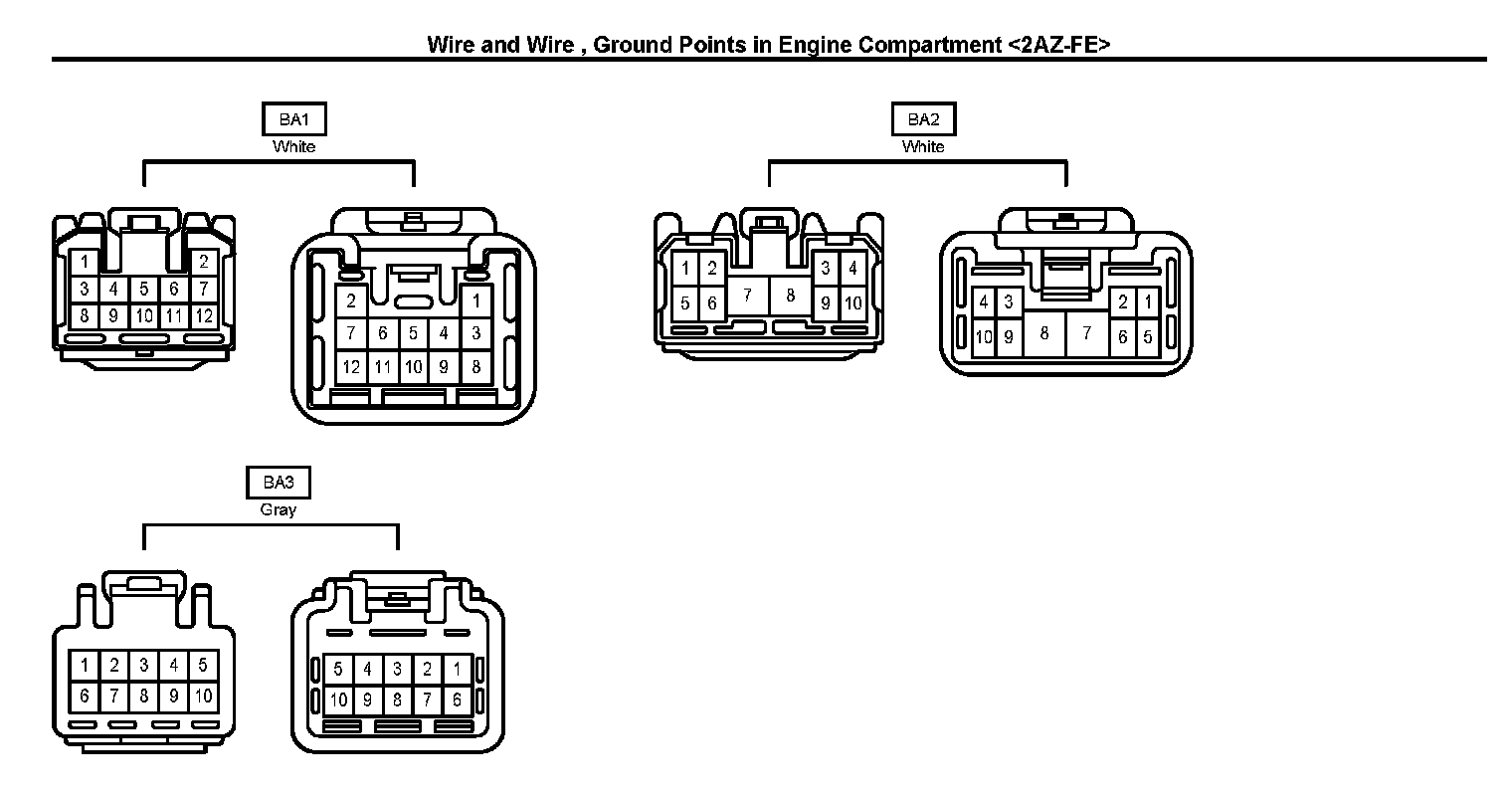

BA1-BA3:
