Removal

2AZ-FE COOLING: COOLING FAN MOTOR: REMOVAL

REMOVAL

1. REMOVE RADIATOR ASSEMBLY
HINT: Removal

2. REMOVE NO. 2 FAN

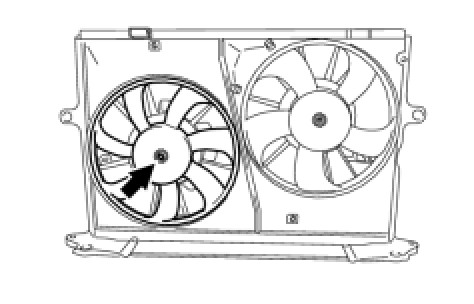

(a) Remove the nut and No. 2 fan.
3. REMOVE FAN

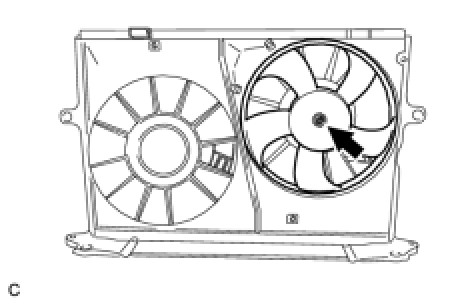

(a) Remove the nut and fan.
4. REMOVE NO. 2 COOLING FAN MOTOR

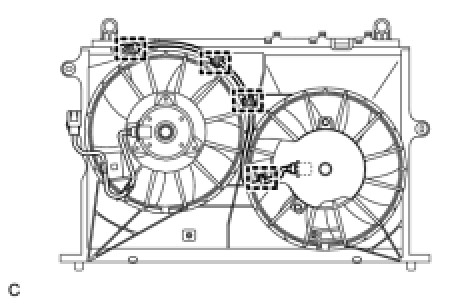

(a) Detach the 4 harness clamps from the fan shroud.

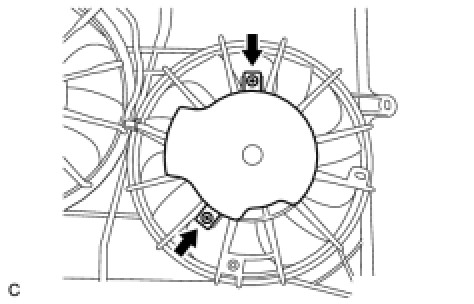

(b) Remove the 2 screws and cooling fan motor insulator.

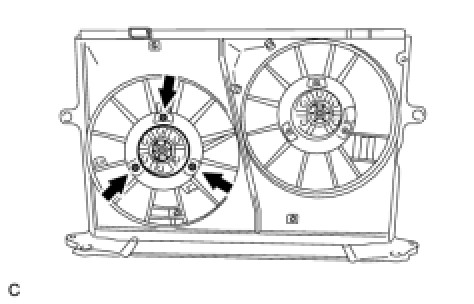

(c) Remove the 3 screws, and then remove the No. 2 cooling fan motor.
5. REMOVE COOLING FAN MOTOR





(a) Detach the 3 harness clamps from the fan shroud.

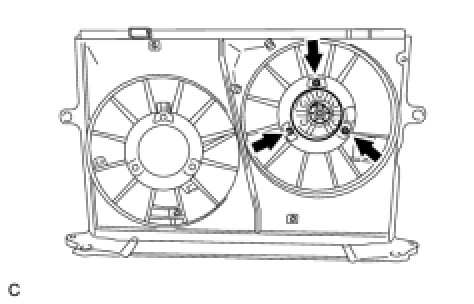

(b) Remove the 3 screws, and then remove the cooling fan motor.
