Removal

2AZ-FE ENGINE MECHANICAL: FRONT CRANKSHAFT OIL SEAL: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL RH
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE V-RIBBED BELT Removal
4. REMOVE CRANKSHAFT PULLEY

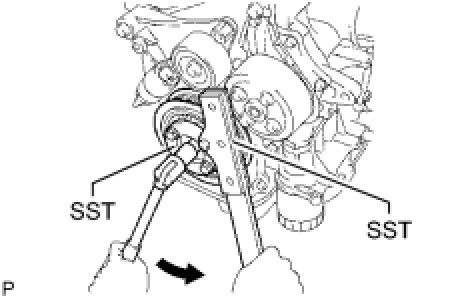

(a) Using SST, hold the crankshaft pulley in place and loosen the pulley bolt.
SST: 09213-54015
91651-60855
SST: 09330-00021

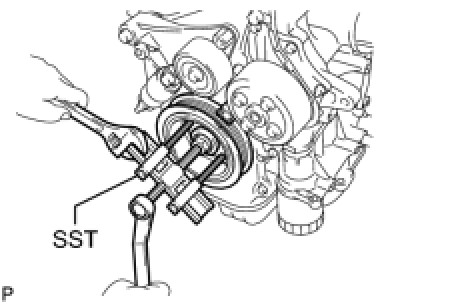

(b) Using SST, remove the crankshaft pulley.
SST: 09950-50013
09951-05010
09952-05010
09953-05020
09954-05021
SST: 09950-40011
09957-04010
HINT: If necessary, remove the pulley and pulley bolt using SST.

5. REMOVE FRONT CRANKSHAFT OIL SEAL

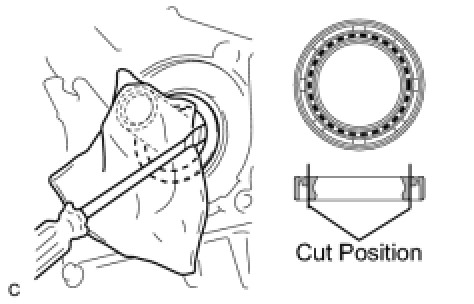

(a) Using a knife, cut off the lip of the oil seal.
(b) Using a screwdriver, pry out the oil seal.
NOTE: Do not damage the surfaces of the oil seal press fit hole and crankshaft.
HINT: Tape the screwdriver tip before use.
