Canister Purge Solenoid: Testing and Inspection

2AZ-FE EMISSION CONTROL: PURGE VALVE: INSPECTION

INSPECTION

1. INSPECT VACUUM SWITCHING VALVE

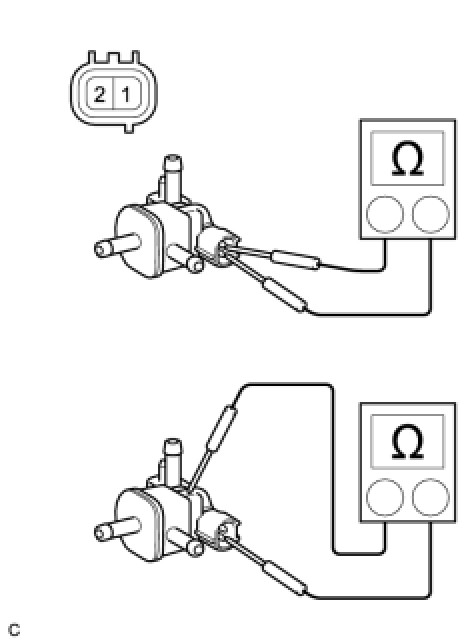

(a) Measure the resistance according to the value(s) in the table below.

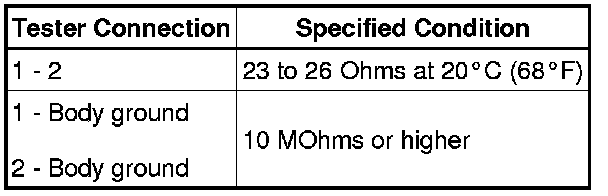

Standard Resistance:





If the result is not as specified, replace the vacuum switching valve.
(b) Check the operation of the vacuum switching valve.

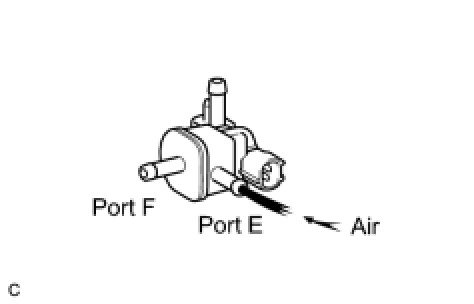

(1) Check that air does not flow from port E to port F.

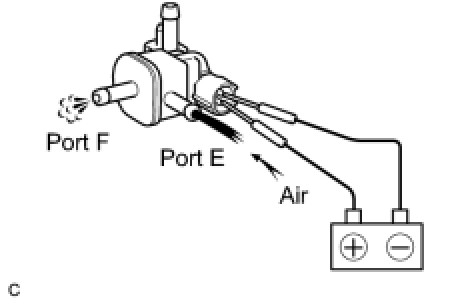

(2) Apply battery voltage across the terminals.
(3) Check that air flows from port E to port F.
If the result is not as specified, replace the vacuum switching valve.
