Installation

2AZ-FE EMISSION CONTROL: CANISTER (for 2WD): INSTALLATION

INSTALLATION

1. INSTALL CHARCOAL CANISTER ASSEMBLY (for Double Wishbone Type Suspension)





(a) Install the charcoal canister assembly with the 3 bolts.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)





(b) Connect the purge line.
(c) Connect the charcoal canister filter sub-assembly to the charcoal canister.





(d) Connect the vapor pressure sensor connector.

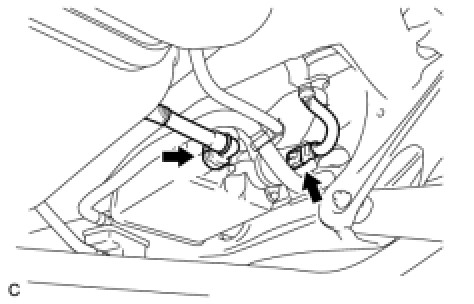

(e) Connect the fuel tank vent hose to the charcoal canister assembly.
2. INSTALL CHARCOAL CANISTER ASSEMBLY (for Torsion Beam Type Suspension)

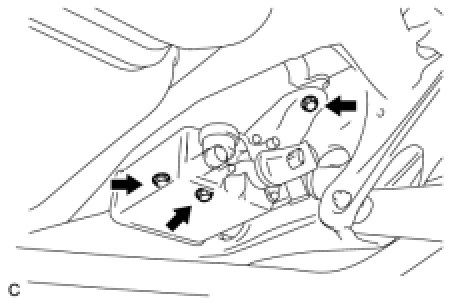

(a) Install the charcoal canister assembly with the 3 bolts.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)





(b) Connect the the charcoal canister filter sub-assembly to the charcoal canister.

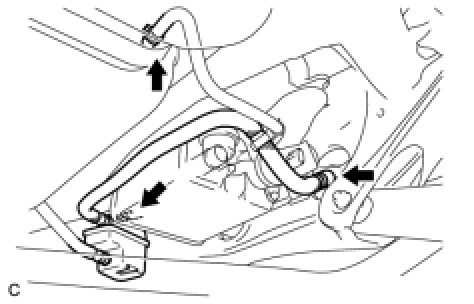

(c) Connect the purge line hose.
(d) Connect the wire harness clamp.
(e) Connect the vapor pressure sensor connector.





(f) Connect the fuel tank vent hose to the charcoal canister.
