Removal

2AZ-FE BATTERY / CHARGING: GENERATOR: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE V-RIBBED BELT Removal
4. REMOVE GENERATOR ASSEMBLY





(a) Remove the terminal cap.

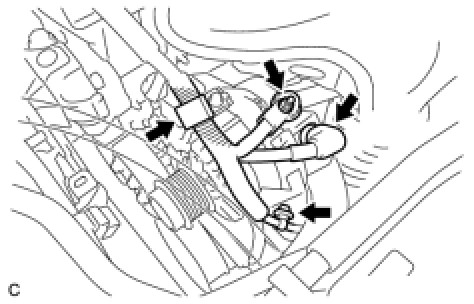

(b) Remove the nut and disconnect the wire harness from terminal B.
(c) Disconnect the generator connector and 2 harness clamps.

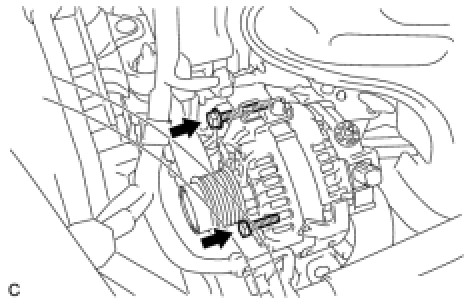

(d) Remove the 2 bolts and generator assembly.

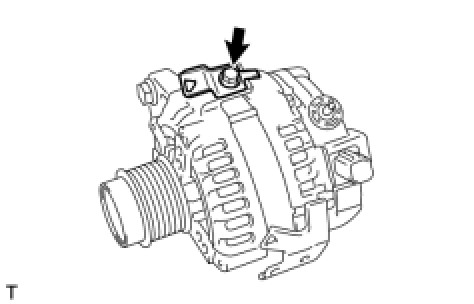

(e) Remove the bolt and wire harness clamp bracket.
