Installation

2AZ-FE STARTING: STARTER: INSTALLATION

INSTALLATION

1. INSTALL STARTER ASSEMBLY (for Manual Transaxle)

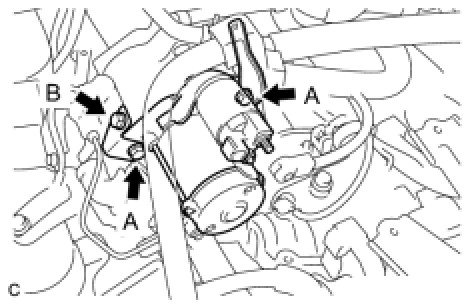

(a) Install the starter assembly, clutch accumulator bracket, and wire harness clamp bracket with the 3 bolts.
Bolt A - Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)
Bolt B - Torque: 12 Nm (120 kgf-cm, 9 ft-lbf)

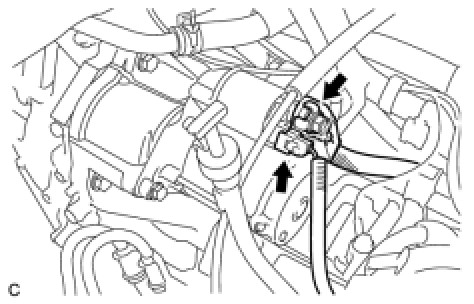

(b) Connect the wire harness to terminal 30 with the nut. Then, attach the terminal cap.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
(c) Connect the terminal 50 connector to the starter assembly.
2. INSTALL STARTER ASSEMBLY (for Automatic Transaxle)

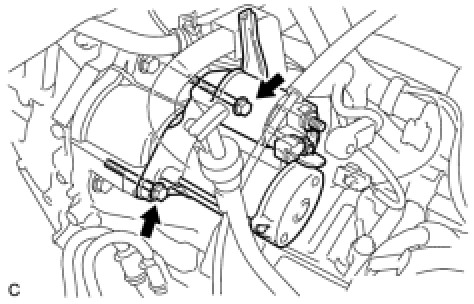

(a) Install the starter assembly and wire harness clamp bracket with the 2 bolts.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)

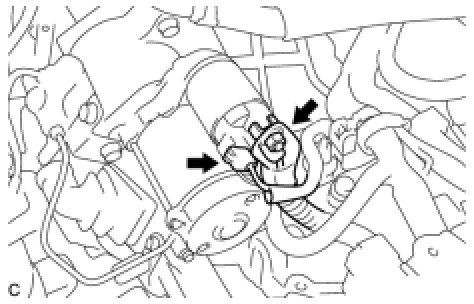

(b) Connect the wire harness to terminal 30 with the nut. Then, attach the terminal cap.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
(c) Connect the terminal 50 connector to the starter assembly.
3. INSTALL BATTERY CARRIER
4. INSTALL BATTERY
5. INSTALL WIRE HARNESS

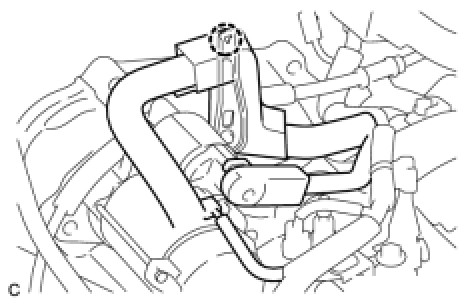

(a) Install the claw and wire harness.
6. INSTALL AIR CLEANER CASE Installation
7. INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE Installation
8. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
