U250E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE UNIT: DISASSEMBLY

DISASSEMBLY

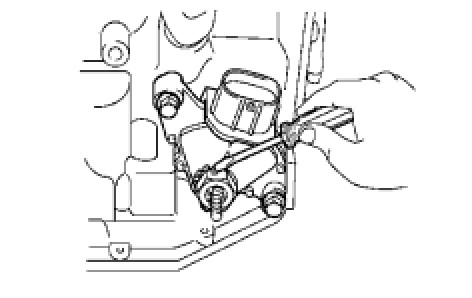

1. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

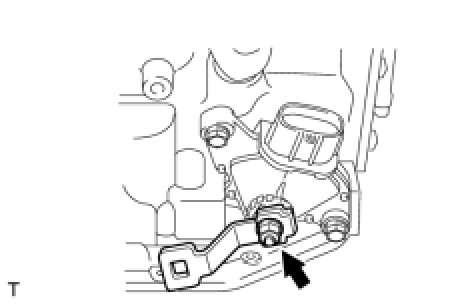

(a) Remove the nut, washer and control shaft lever.





(b) Using a screwdriver, unstake the lock plate, and remove the lock nut and nut stopper.

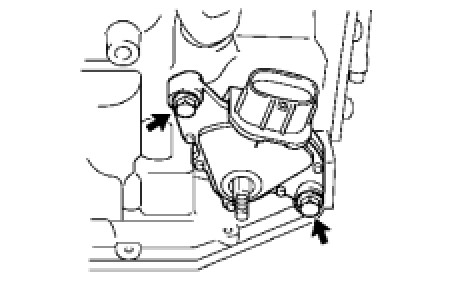

(c) Remove the 2 bolts and pull out the park/neutral position switch.

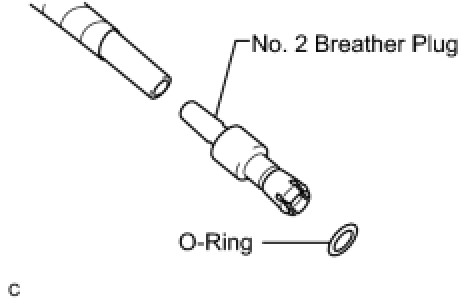

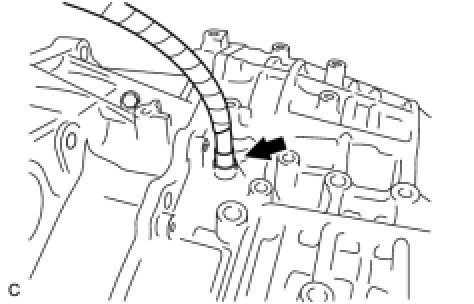

2. REMOVE NO. 2 BREATHER PLUG





(a) Remove the No. 2 breather plug from the transaxle case.





(b) Remove the hose and O-ring from the No. 2 breather plug.
3. REMOVE OIL COOLER TUBE ELBOW (INLET OIL COOLER ELBOW)

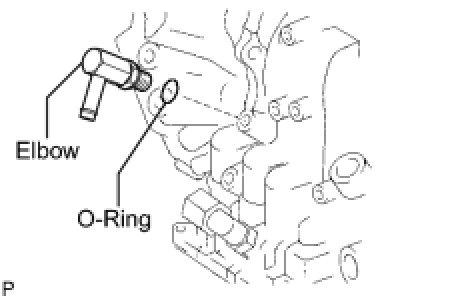

(a) Remove the elbow.
(b) Remove the O-ring from the elbow.

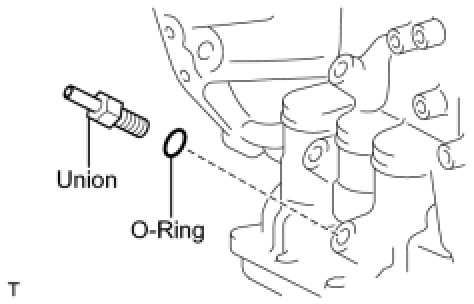

4. REMOVE OIL COOLER TUBE UNION (OUTLET OIL COOLER UNION)





(a) Remove the union.
(b) Remove the O-ring from the union.

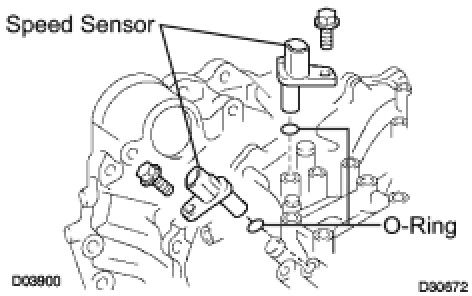

5. REMOVE TRANSMISSION REVOLUTION SENSOR





(a) Remove the 2 bolts and 2 speed sensors from the transaxle assembly.
(b) Remove the 2 O-rings from the 2 speed sensors.

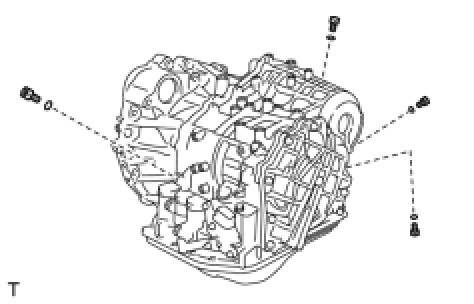

6. REMOVE NO. 1 TRANSAXLE CASE PLUG





(a) Remove the 4 No. 1 transaxle case plugs from the transaxle case.
(b) Remove the O-ring from each No. 1 transaxle case plug.

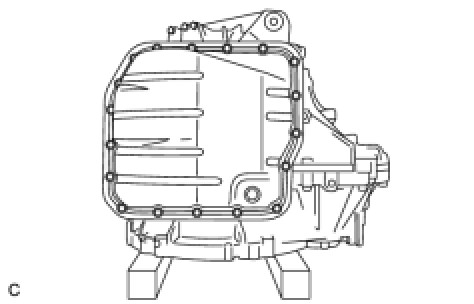

7. SECURE AUTOMATIC TRANSAXLE ASSEMBLY





(a) Secure the transaxle assembly onto wooden blocks.

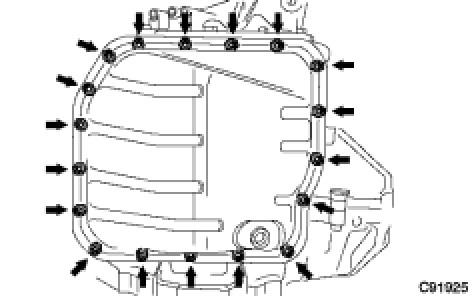

8. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
(a) Remove the drain plug and drain plug gasket from the oil pan.





(b) Remove the 18 bolts, oil pan and gasket.

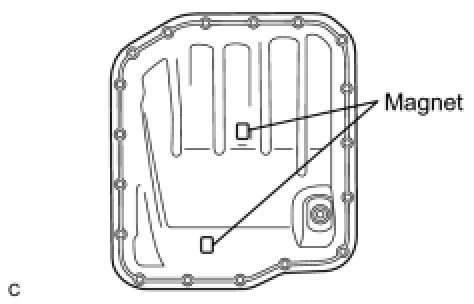

(c) Remove the 2 transmission oil cleaner magnets from the oil pan.
9. INSPECT TRANSMISSION OIL CLEANER MAGNET Transaxle Unit
10. DISCONNECT TRANSMISSION WIRE

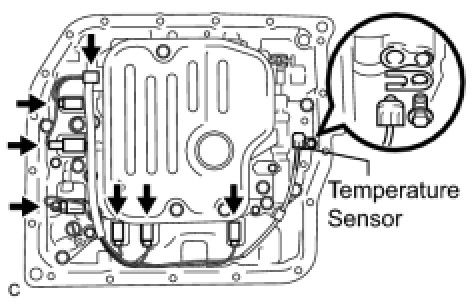

(a) Disconnect the 7 connectors from the shift solenoid valves.
(b) Remove the bolt, lock plate, and ATF temperature sensor.
11. REMOVE TRANSMISSION WIRE

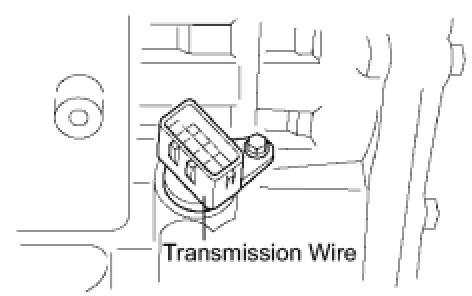

(a) Remove the bolt and transmission wire from the transaxle case.

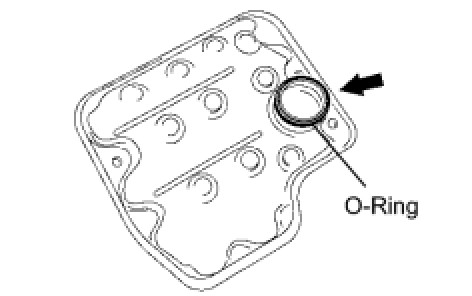

12. REMOVE VALVE BODY OIL STRAINER ASSEMBLY





(a) Remove the 3 bolts and oil strainer.





(b) Remove the O-ring from the oil strainer.

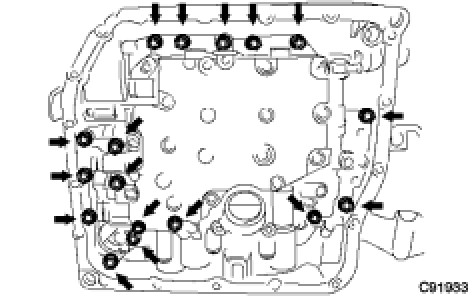

13. REMOVE TRANSMISSION VALVE BODY ASSEMBLY





(a) Support the valve body assembly and remove the 17 bolts and valve body assembly.
14. REMOVE NO. 1 GOVERNOR APPLY GASKET





(a) Remove the No. 1 governor apply gasket from the transaxle case.
15. REMOVE TRANSAXLE CASE 2ND BRAKE GASKET





(a) Remove the transaxle case 2nd brake gasket from the transaxle case.
16. REMOVE BRAKE DRUM GASKET





(a) Remove the brake drum gasket from the transaxle case.
17. REMOVE CHECK BALL BODY

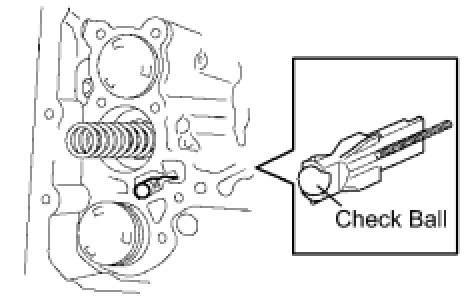

(a) Remove the check ball body and spring from the transaxle case.

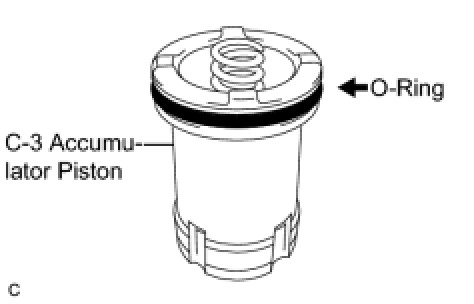

18. REMOVE C-3 ACCUMULATOR PISTON





(a) Remove the spring from the C-3 accumulator piston.

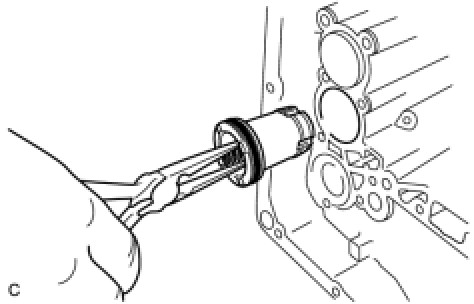

(b) Using needle-nose pliers, remove the C-3 accumulator piston from the transaxle case.





(c) Remove the O-ring from the C-3 accumulator piston.

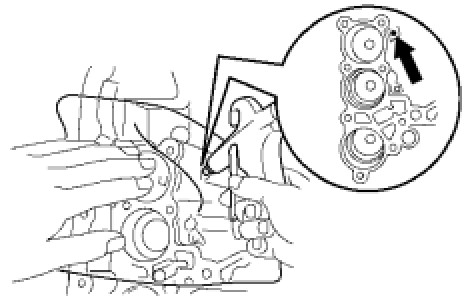

19. REMOVE REVERSE CLUTCH ACCUMULATOR PISTON





(a) Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the oil hole and remove the reverse accumulator piston and spring.

NOTICE:
- Applying compressed air may cause the piston to jump out. When removing the piston, hold it by hand using a piece of cloth.
- Do not splash ATF when applying compressed air.

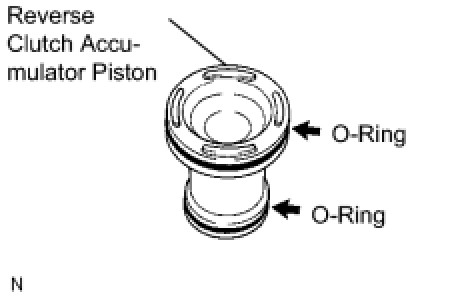

(b) Remove the 2 O-rings from the reverse clutch accumulator piston.

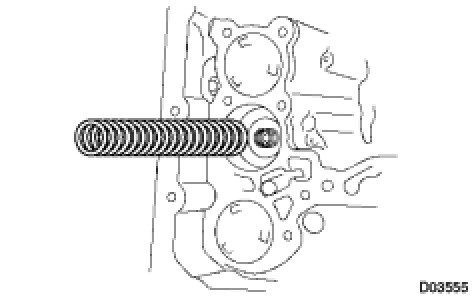

20. REMOVE B-3 ACCUMULATOR PISTON





(a) Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the oil hole and remove the B-3 accumulator piston and 2 springs.

NOTICE:
- Applying compressed air may cause the piston to jump out. When removing the piston, hold it by hand using a piece of cloth.
- Do not splash ATF when applying compressed air.

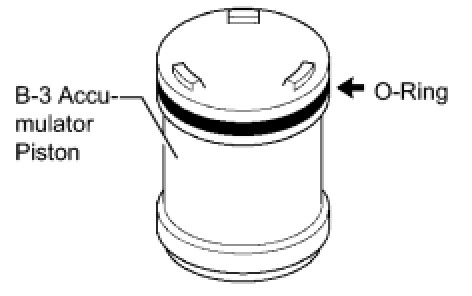

(b) Remove the O-ring from the B-3 accumulator piston.

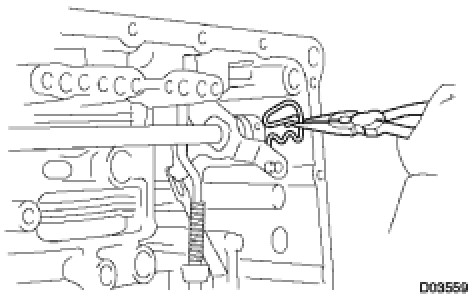

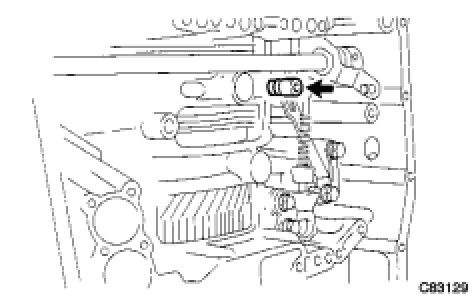

21. REMOVE MANUAL VALVE LEVER SHAFT RETAINER SPRING





(a) Using needle-nose pliers, remove the manual valve lever shaft retainer spring.

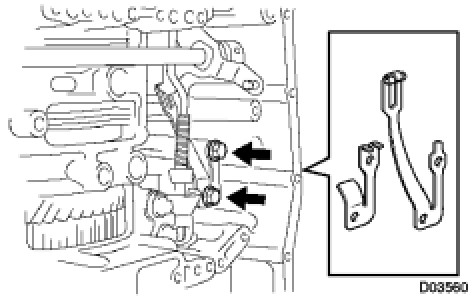

22. REMOVE MANUAL DETENT SPRING SUB-ASSEMBLY





(a) Remove the 2 bolts and manual detent spring sub-assembly.
23. REMOVE PARKING LOCK PAWL BRACKET

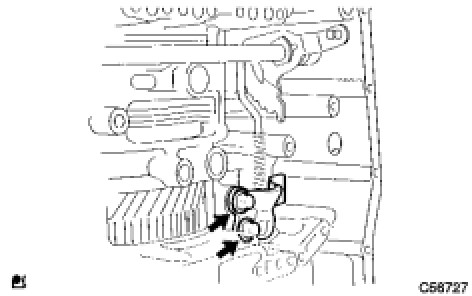

(a) Remove the 2 bolts and parking lock pawl bracket.
24. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY

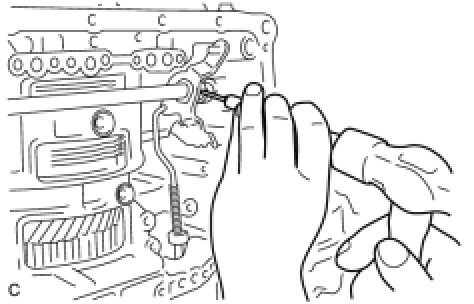

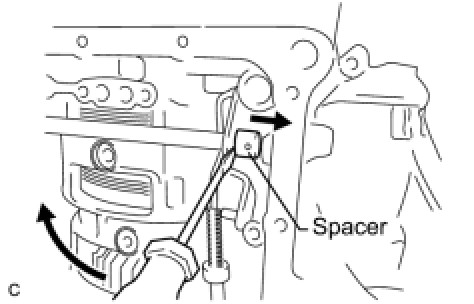

(a) Using a screwdriver, slide the spacer as shown in the illustration.





(b) Using a pin punch (dia3 mm) and a hammer, drive out the pin.
HINT: Slowly drive out the pin so that it will not fall into the transaxle case.

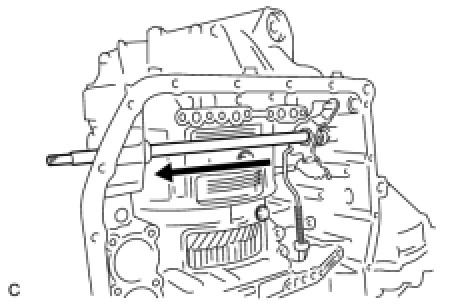

(c) Remove the manual valve lever shaft, manual valve lever and spacer.

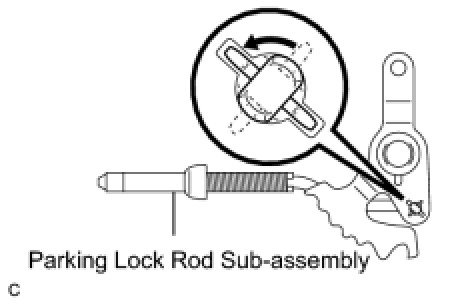

25. REMOVE PARKING LOCK ROD SUB-ASSEMBLY





(a) Remove the parking lock rod sub-assembly from the manual valve lever sub-assembly.
HINT: Align the dial with the notches on the manual valve lever sub-assembly to remove the parking lock rod sub-assembly.

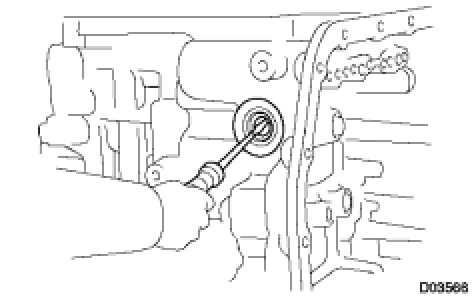

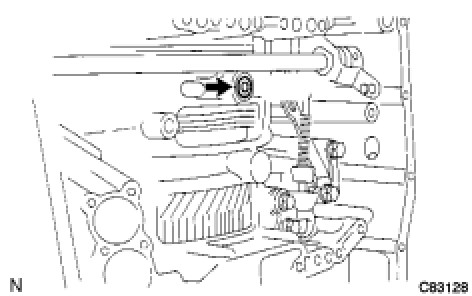

26. REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL





(a) Using a screwdriver, remove the oil seal from the transaxle case.
27. SECURE AUTOMATIC TRANSAXLE ASSEMBLY
(a) Secure the transaxle case with the oil pump facing up.
28. INSPECT INPUT SHAFT END PLAY Transaxle Unit

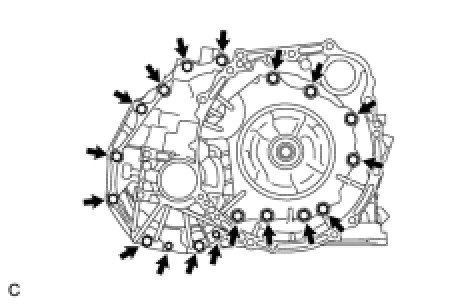

29. REMOVE TRANSAXLE HOUSING





(a) Remove the 18 bolts.
(b) Tap on the circumference of the transaxle housing with a plastic hammer to remove the transaxle housing from the transaxle case.
NOTE: The differential may be accidentally removed when the transaxle housing is removed.

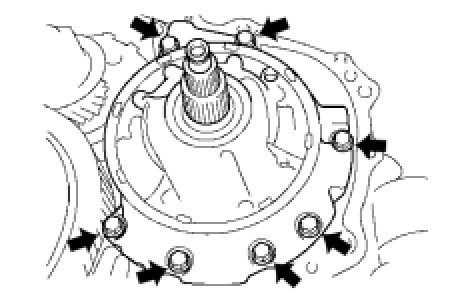

30. REMOVE OIL PUMP ASSEMBLY





(a) Remove the 7 bolts and oil pump from the transaxle case.

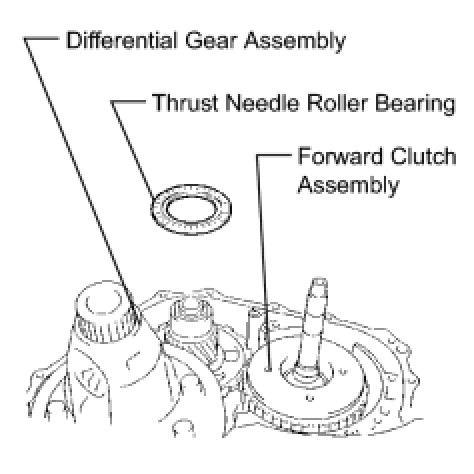

31. REMOVE THRUST NEEDLE ROLLER BEARING





(a) Remove the thrust needle roller bearing from the underdrive planetary gear assembly.

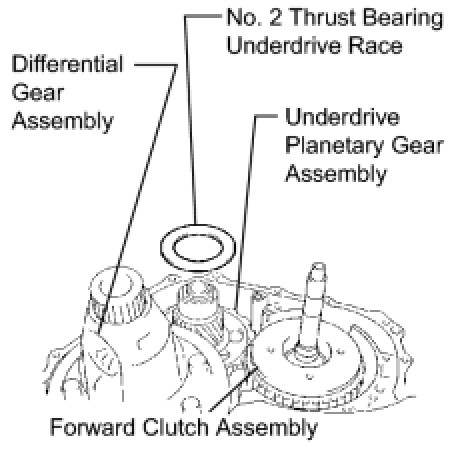

32. REMOVE NO. 2 THRUST BEARING UNDERDRIVE RACE





(a) Remove the No. 2 thrust bearing underdrive race from the underdrive planetary gear assembly.
