Disassembly

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: OIL PUMP: DISASSEMBLY

DISASSEMBLY

1. INSPECT OIL PUMP ASSEMBLY Oil Pump

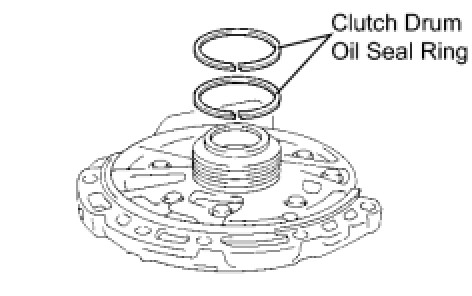

2. REMOVE CLUTCH DRUM OIL SEAL RING





(a) Remove the 2 clutch drum oil seal rings.
3. REMOVE STATOR SHAFT ASSEMBLY





(a) Using a "TORX" socket wrench (T30), remove the 11 bolts and stator shaft.
(b) Keep the bolts in the order removed.
4. INSPECT CLEARANCE OF OIL PUMP ASSEMBLY Oil Pump
5. REMOVE FRONT OIL PUMP DRIVE GEAR





(a) Remove the front oil pump drive gear.
6. REMOVE FRONT OIL PUMP DRIVEN GEAR





(a) Remove the front oil pump driven gear.

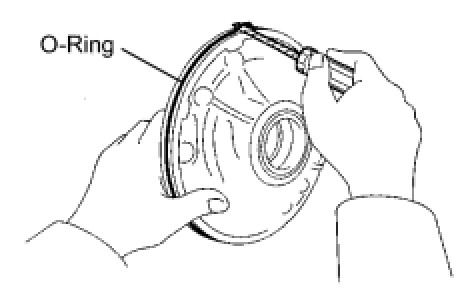

7. REMOVE FRONT OIL PUMP BODY O-RING





(a) Using a screwdriver, remove the O-ring.
HINT: Tape the screwdriver tip before use.

8. REMOVE FRONT OIL PUMP OIL SEAL





(a) Mount the oil pump in a soft jaw vise.
(b) Using SST, remove the oil seal from the oil pump body.
SST: 09308-00010
