Reassembly

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: OIL PUMP: REASSEMBLY

REASSEMBLY

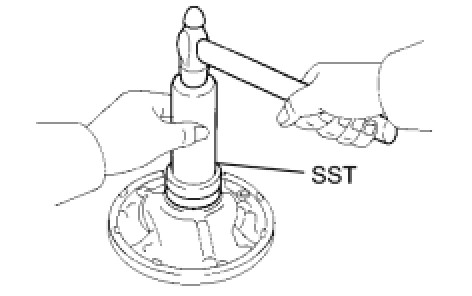

1. INSTALL FRONT OIL PUMP OIL SEAL





(a) Using SST and a hammer, install a new oil seal to the oil pump body.
SST: 09350-32014
09351-32140
HINT: The seal end should be flush with the outer edge of the oil pump.

(b) Coat the lip of the oil seal with MP grease.

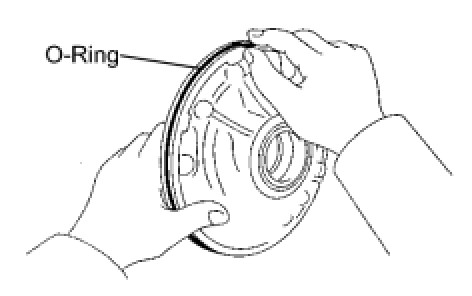

2. INSTALL FRONT OIL PUMP BODY O-RING





(a) Coat a new O-ring with ATF, and install it to the oil pump body.

NOTICE:
- Install the O-ring carefully to avoid twists or pinches.
- Apply sufficient ATF to the O-ring prior to installation.

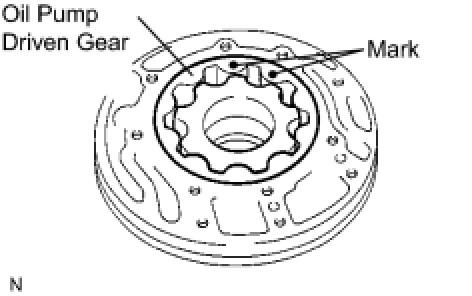

3. INSTALL FRONT OIL PUMP DRIVEN GEAR





(a) Coat the front oil pump driven gear with ATF, and install it to the oil pump body with the marked side facing upward.

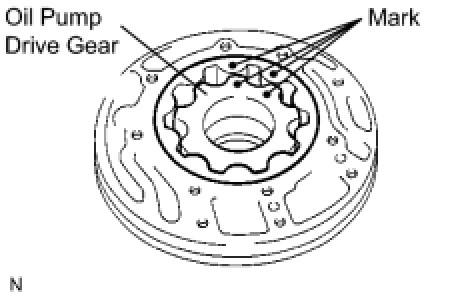

4. INSTALL FRONT OIL PUMP DRIVE GEAR





(a) Coat the front oil pump drive gear with ATF, and install it to the oil pump body with the marked side facing upward.

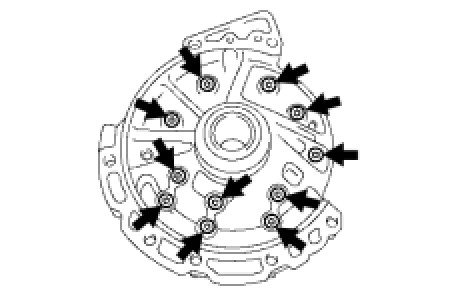

5. INSTALL STATOR SHAFT ASSEMBLY





(a) Align the bolt holes in the stator shaft assembly with those in the front oil pump and gear body sub-assembly.
(b) Using a "TORX" socket wrench (T30), install the 11 bolts.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)

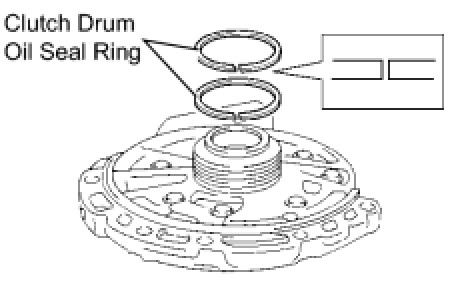

6. INSTALL CLUTCH DRUM OIL SEAL RING





(a) Coat 2 new clutch drum oil seal rings with ATF.
(b) Install the 2 clutch drum oil seal rings.
NOTE: Do not expand the ring ends excessively.
