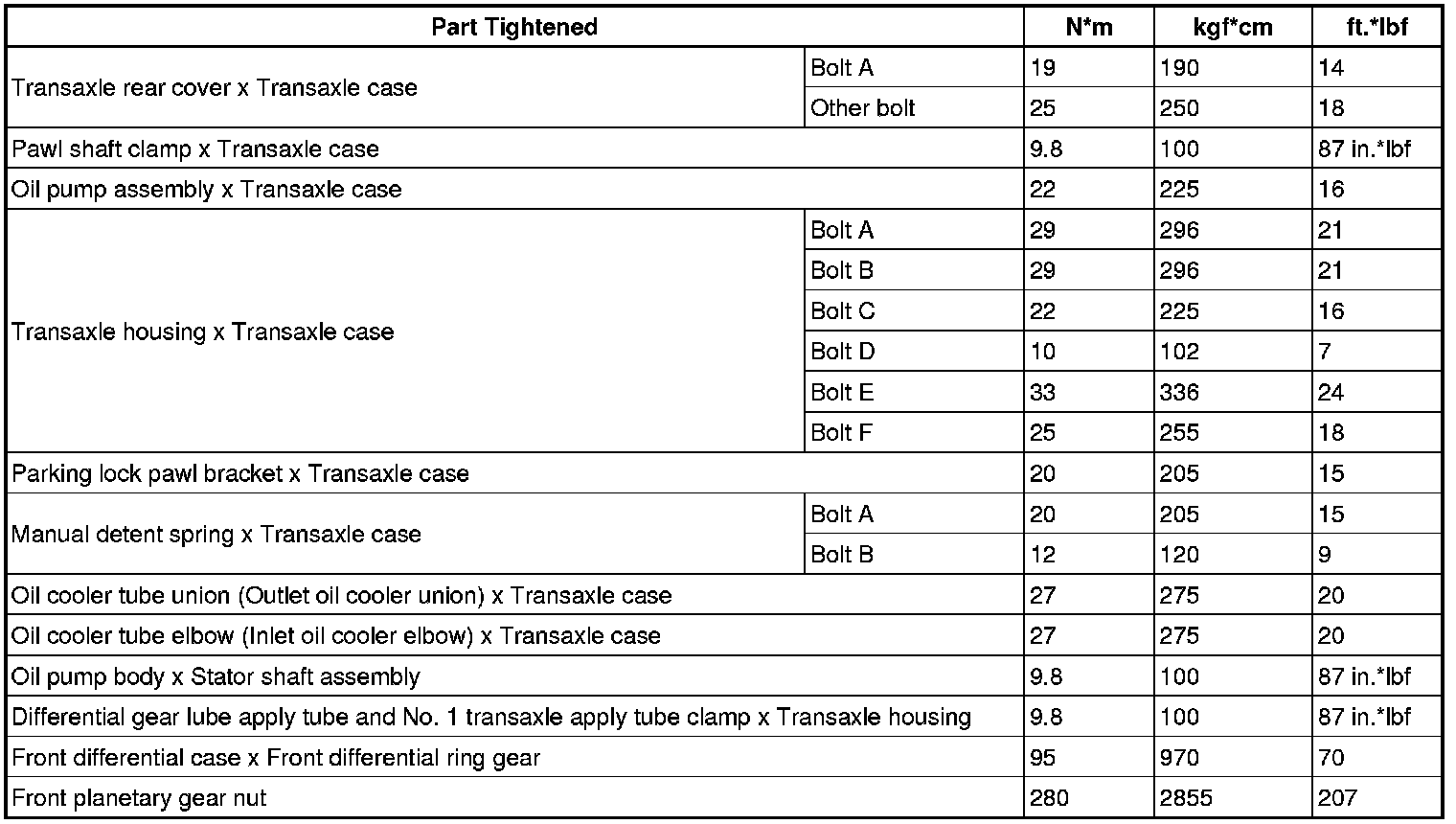

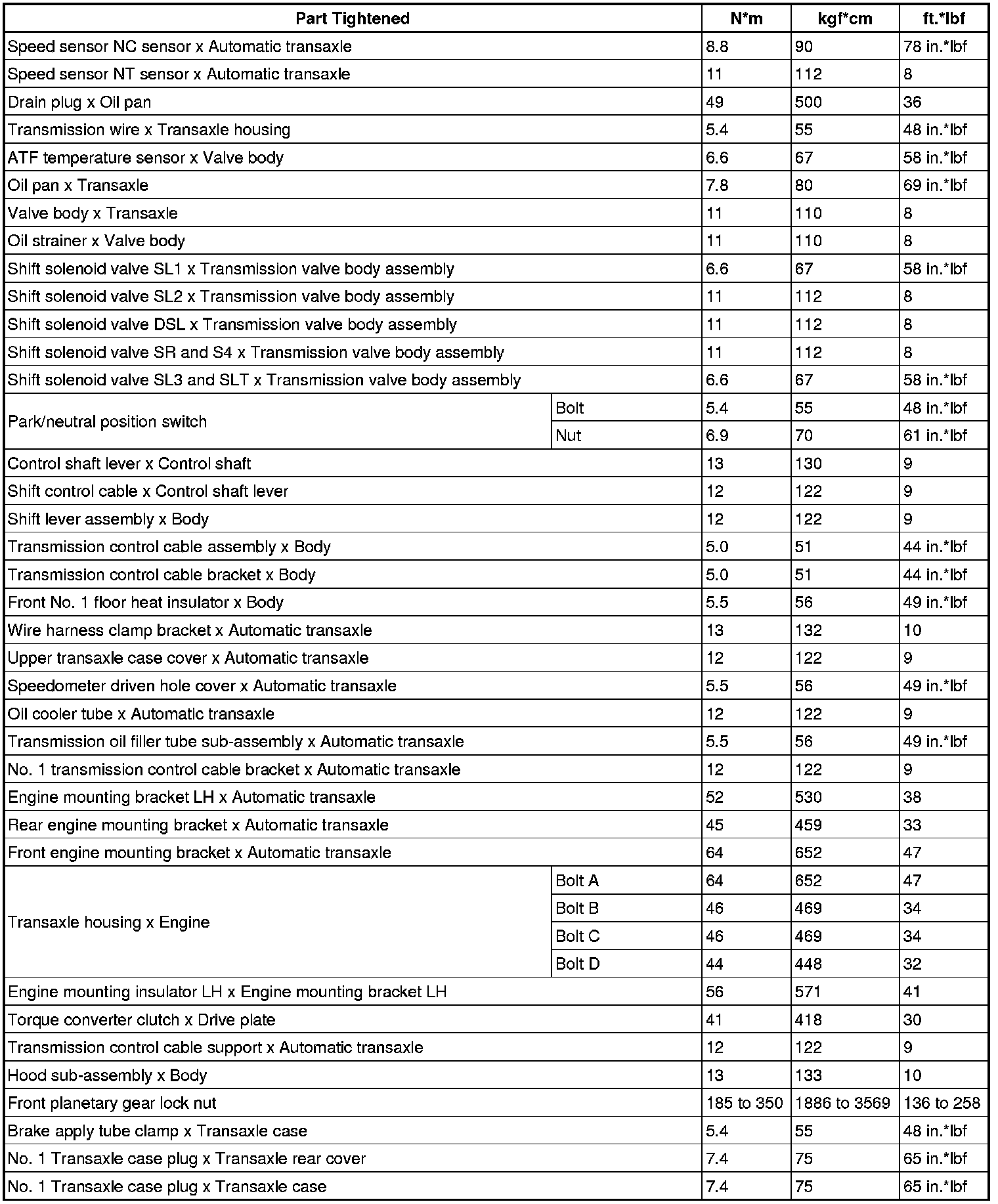

SPECIFICATIONS: U250E AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
