Differential Case

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: DIFFERENTIAL CASE: INSPECTION

INSPECTION

1. INSPECT BACKLASH

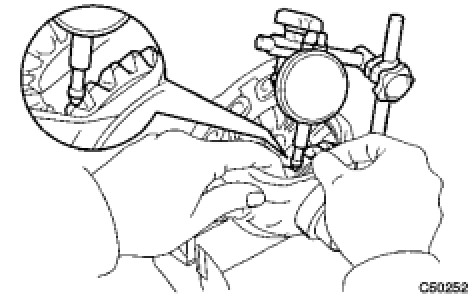

(a) Using a dial indicator, inspect the backlash of the side gear.
Standard backlash:
0.05 to 0.20 mm (0.00197 to 0.00787 in.)
If the backlash is not within the specified range, install the correct thrust washers to the side gear.
(b) Referring to the table below, select thrust washers which will adjust the backlash to within the specified range for both sides.

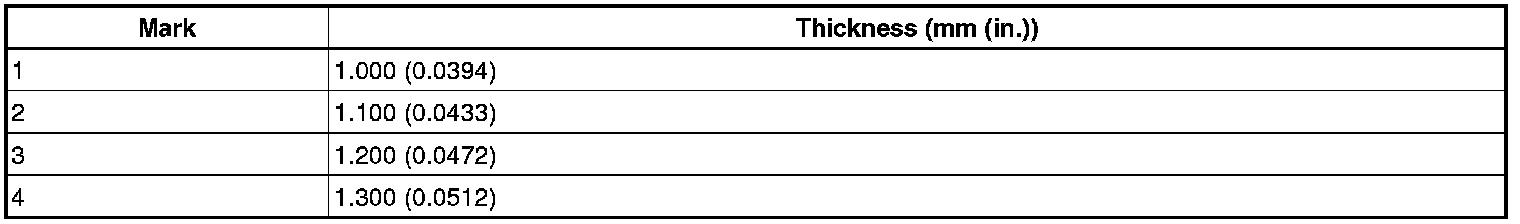

Thrust Washer Thickness
