U250E AUTOMATIC TRANSMISSION / TRANSAXLE: SPEED SENSOR: INSTALLATION

INSTALLATION

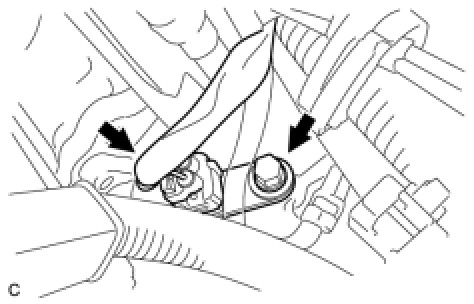

1. INSTALL SPEED SENSOR NC
(a) Coat a new O-ring with ATF WS and install it to the speed sensor.





(b) Install the speed sensor with the bolt.
Torque: 8.8 Nm (90 kgf-cm, 78 in-lbf)
(c) Connect the speed sensor connector.

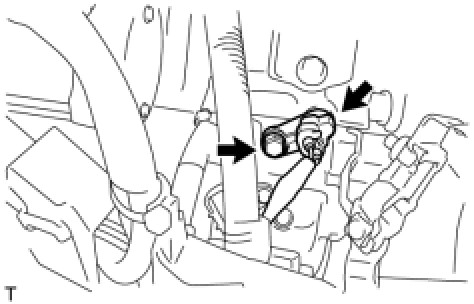

2. INSTALL SPEED SENSOR NT
(a) Coat a new O-ring with ATF WS and install it to the speed sensor.





(b) Install the speed sensor with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
(c) Connect the speed sensor connector.

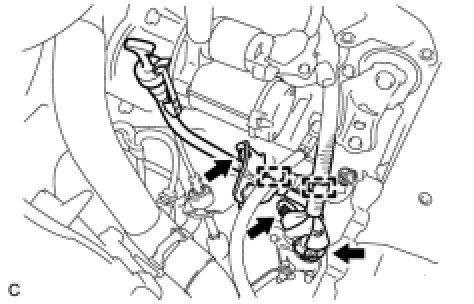

3. INSTALL TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY
(a) Apply ATF to a new O-ring, and install it to the transmission oil filler tube sub-assembly.





(b) Install the transmission oil filler tube sub-assembly to the automatic transaxle with the bolt.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(c) Connect the transmission wire connector, park/neutral position switch connector and 2 wire harness clamps.
(d) Install the transmission oil level gauge sub-assembly to the transmission oil filler tube sub-assembly.
4. INSTALL BATTERY CARRIER Installation
5. INSTALL BATTERY Installation
6. INSTALL AIR CLEANER CASE Installation
7. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
8. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
