Installation

CLUTCH: CLUTCH ACCUMULATOR (for E351): INSTALLATION

INSTALLATION

1. INSTALL CLUTCH ACCUMULATOR ASSEMBLY





(a) Install the clutch accumulator assembly with the 2 nuts.
Torque: 12 Nm (120 kgf-cm, 9 ft-lbf)
2. CONNECT CLUTCH LINE





(a) Connect the clutch tube bracket with the bolt.
Torque: 8.0 Nm (80 kgf-cm, 69 in-lbf)





(b) Using a union nut wrench (10 mm), install the clutch line to the clutch accumulator assembly.
without a union nut wrench - Torque: 15 Nm (155 kgf-cm, 11 ft-lbf)
with a union nut wrench - Torque: 14 Nm (143 kgf-cm, 10 ft-lbf)

NOTICE:
- Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
- This torque value is effective when the union nut wrench is parallel to the torque wrench.

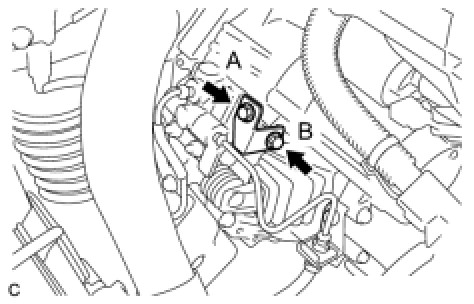

3. INSTALL CLUTCH ACCUMULATOR BRACKET





(a) Install the clutch accumulator bracket with the 2 bolts.
Bolt A - Torque: 12 Nm (120 kgf-cm, 9 ft-lbf)
Bolt B - Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)
4. INSTALL RELEASE CYLINDER HEAT INSULATOR





(a) Install the release cylinder heat insulator with the 2 bolts.
Torque: 12 Nm (120 kgf-cm, 9 ft-lbf)
5. FILL BRAKE FLUID RESERVOIR Service and Repair
6. BLEED CLUTCH LINE Procedures
7. INSPECT FLUID LEVEL Testing and Inspection
8. INSPECT FOR FLUID LEAK
HINT: Check for leaks in the clutch system.
