1NZ-FXE STARTING: SMART KEY SYSTEM: B2286: Ready Signal Malfunction

DTC B2286 - Ready Signal Malfunction

DESCRIPTION

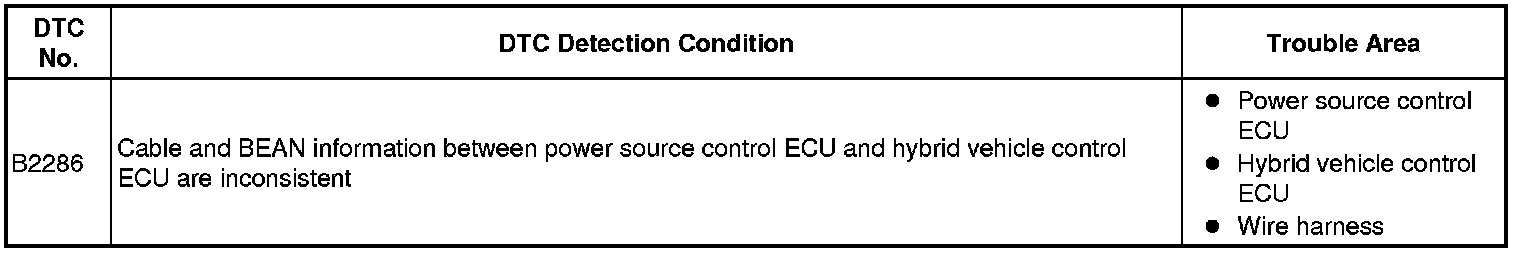

The power source control ECU and the hybrid vehicle control ECU are connected by a cable and the BEAN. If the cable information and BEAN information are inconsistent, this DTC will be output.

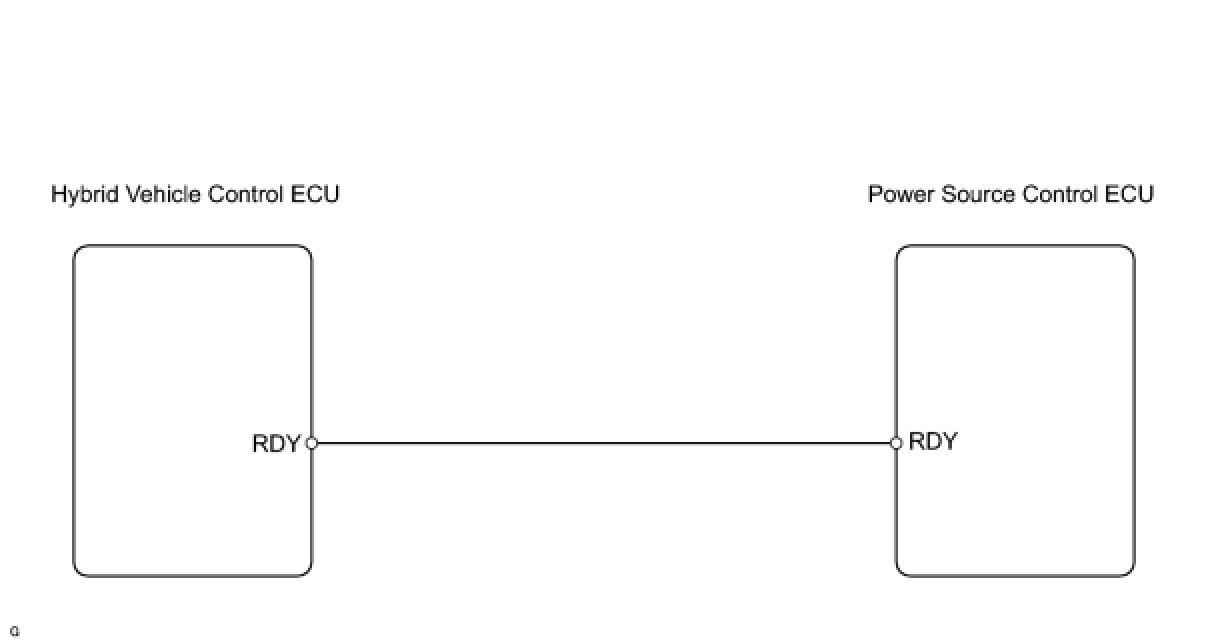

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING DATA LIST (READY SIGNAL)
(a) Connect Techstream to the DLC3.
(b) Turn the power switch ON (IG) and press Techstream main switch ON.

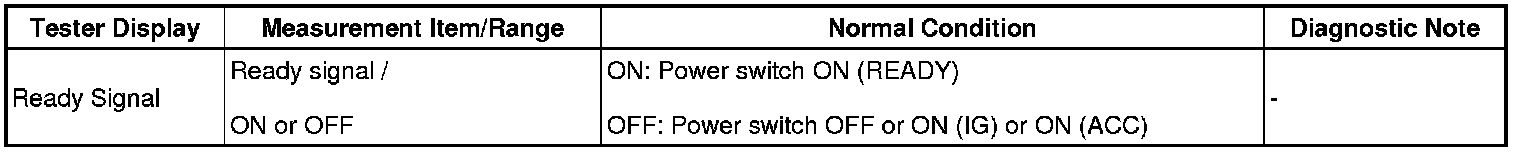

(c) Read the DATA LIST according to the displays on the tester.

Power source control ECU





OK:
ON (power switch is ON (READY)) appears on the screen.
OK -- REPLACE POWER SOURCE CONTROL ECU
NG -- Continue to next step.

2. CHECK WIRE HARNESS (POWER SOURCE CONTROL ECU - HYBRID VEHICLE CONTROL ECU)

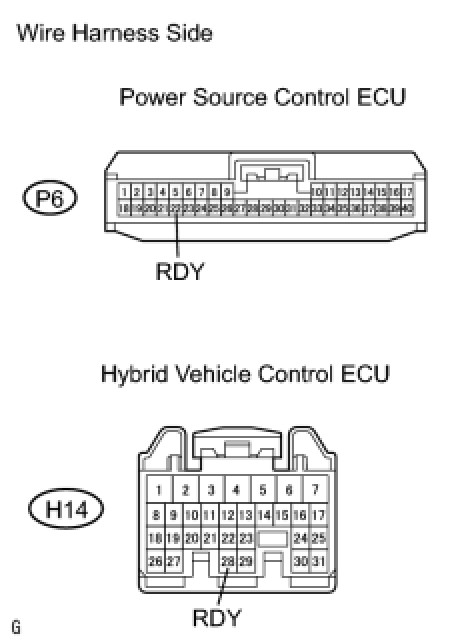

(a) Disconnect the P6 and H14 ECU connectors.

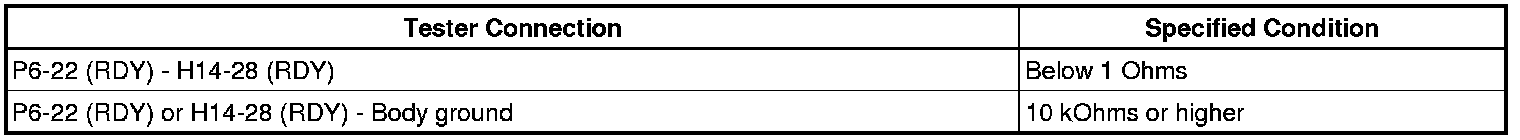

(b) Measure the resistance of the wire harness side connectors.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

3. CHECK OPERATION OF POWER SOURCE CONTROL ECU
(a) After replacing the power source control ECU with a normally functioning ECU, check that the hybrid vehicle control system can start normally.
OK:
Hybrid vehicle control system can start normally.
NG -- GO TO HYBRID CONTROL SYSTEM
OK -- NORMAL (POWER SOURCE CONTROL ECU DEFECTIVE)
