C2307

HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: C2307: Power Source Malfunction

DTC C2307 - Power Source Malfunction

DESCRIPTION

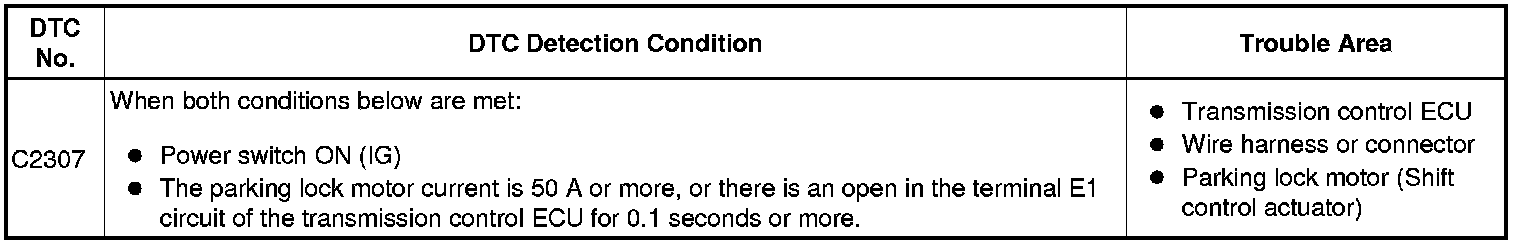

The shift control actuator consists of the parking lock motor and the rotation angle sensor. The transmission control ECU receives a P position switch signal from the hybrid vehicle control ECU and activates the parking lock motor by controlling current, causing the parking lock mechanism to switch. The transmission control ECU outputs this DTC when it detects a malfunction in the parking lock motor system and/or the ground circuit.

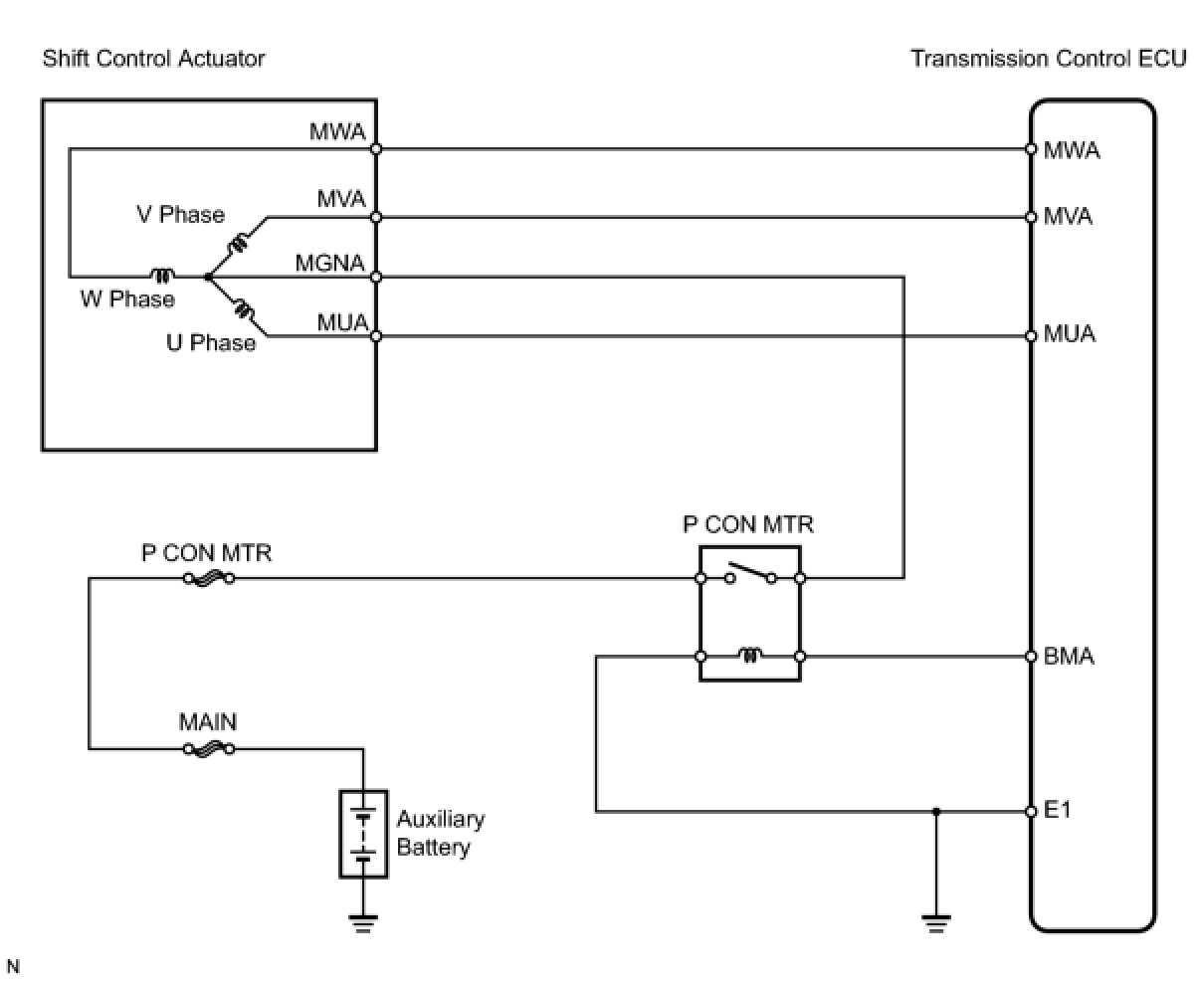

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

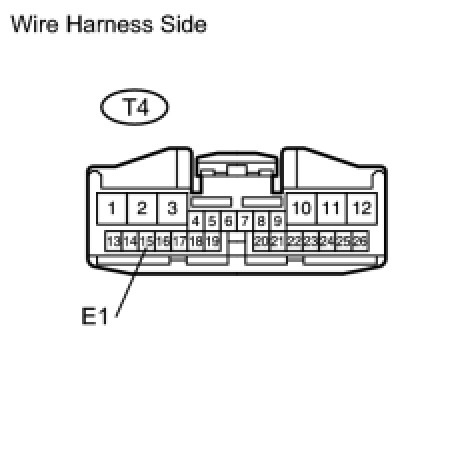

1. CHECK WIRE HARNESS (TRANSMISSION CONTROL ECU - BODY GROUND)




(a) Disconnect the T4 ECU connector.
(b) Measure the resistance of the wire harness side connector.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

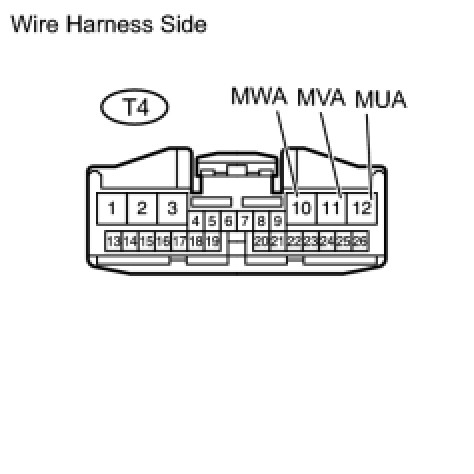

2. CHECK WIRE HARNESS (TRANSMISSION CONTROL ECU - BODY GROUND)




(a) Measure the voltage of the wire harness and connector.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE TRANSMISSION CONTROL ECU
