Audio and Visual System
AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
Communication diagnosis

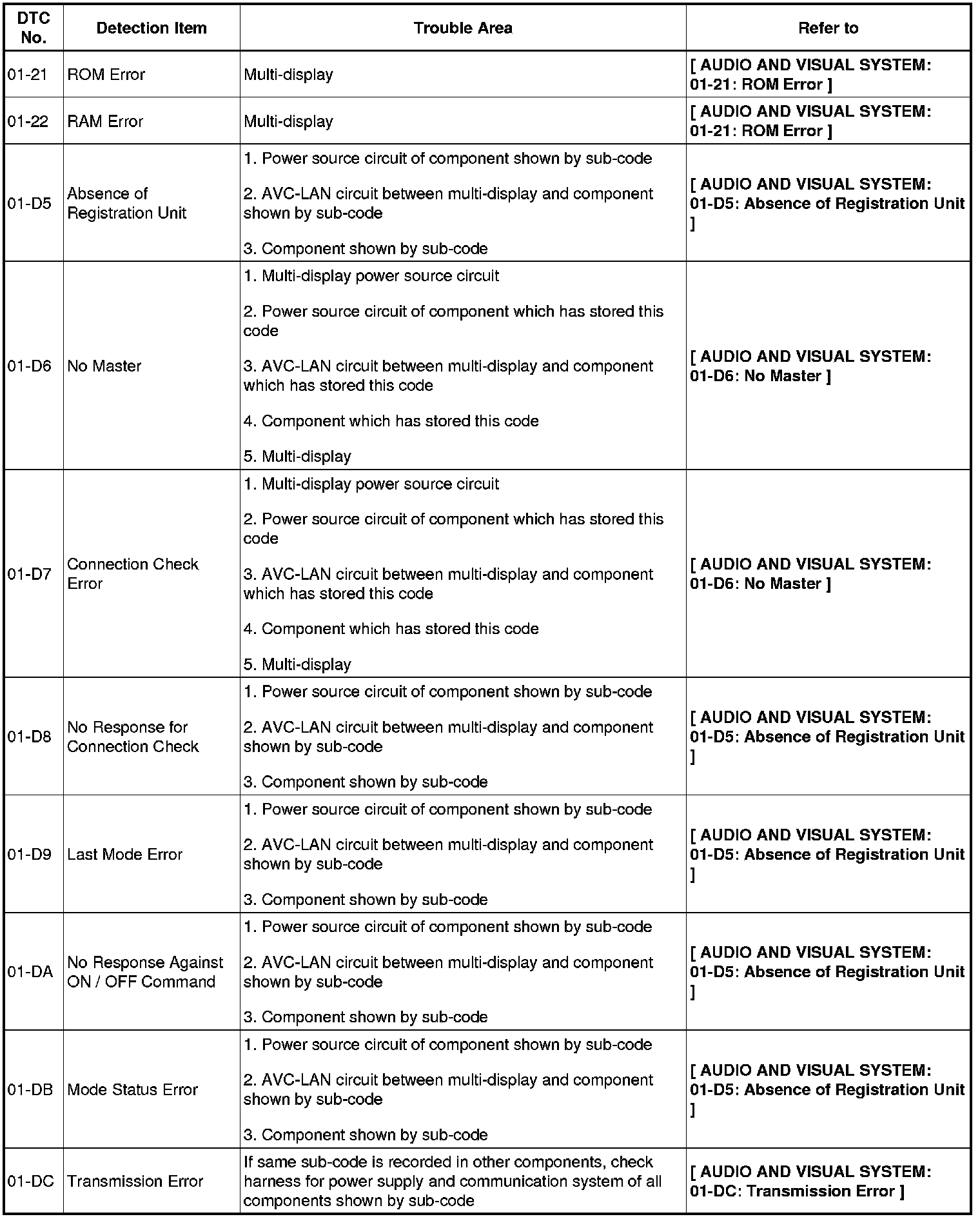

01-21 - 01-DC:

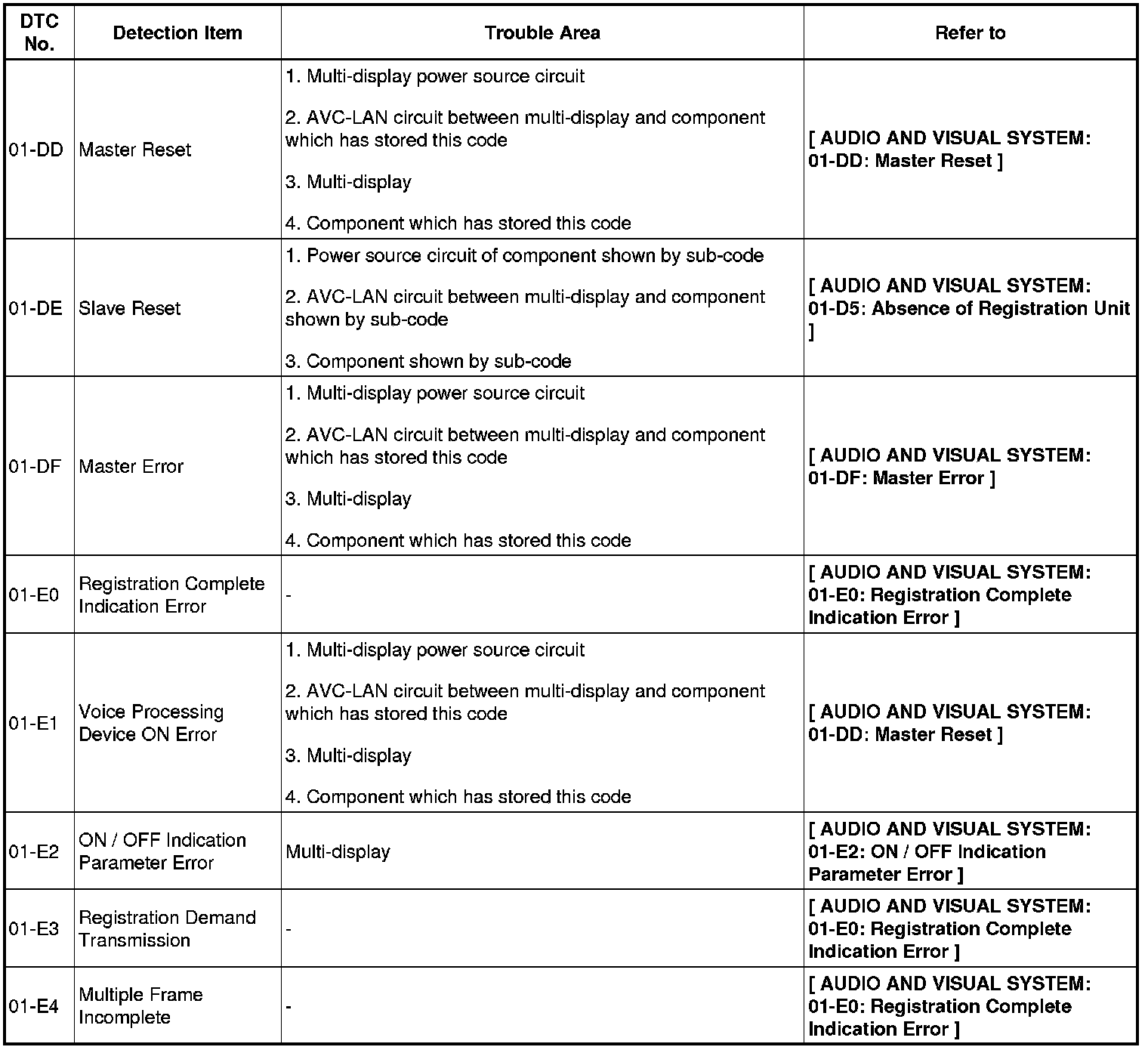

01-DD - 01-E4:

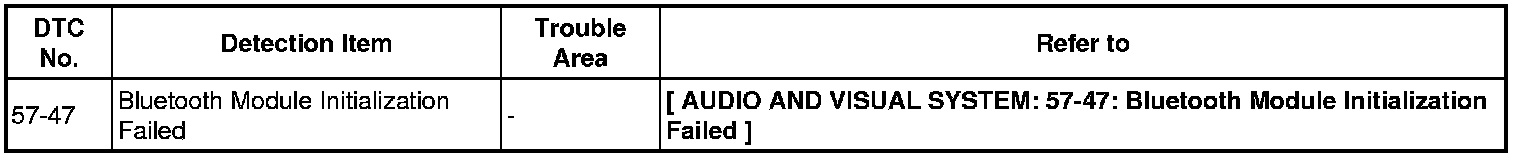

Bluetooth
57-47:

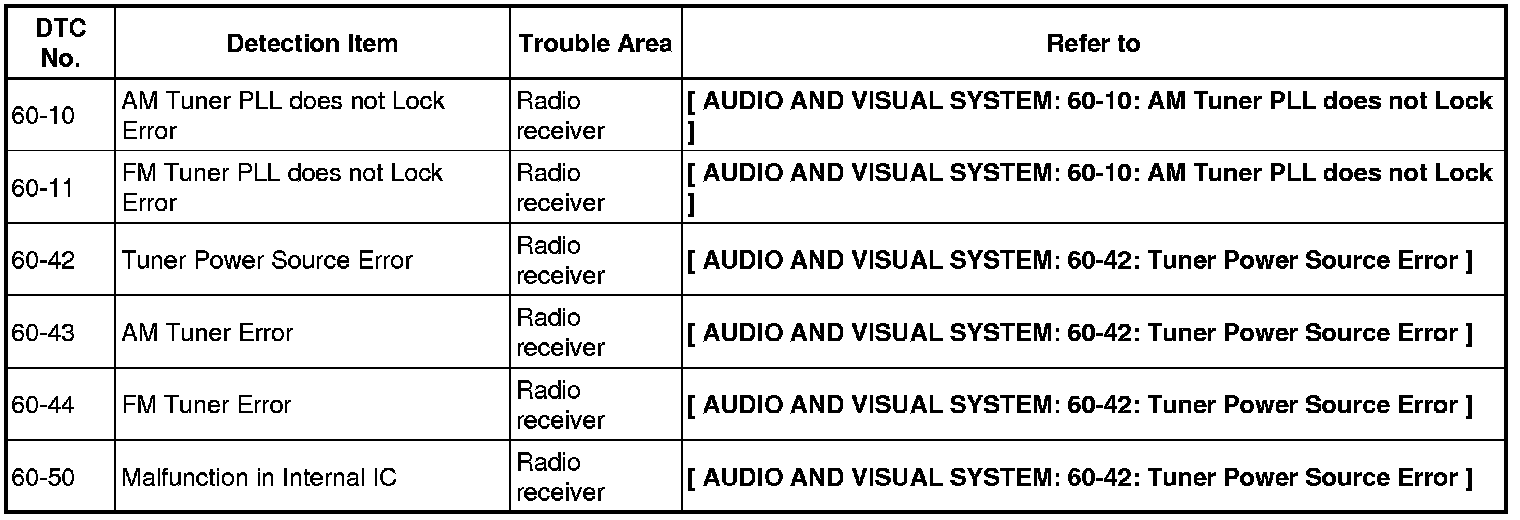

Radio unit
60-10 - 60-50:

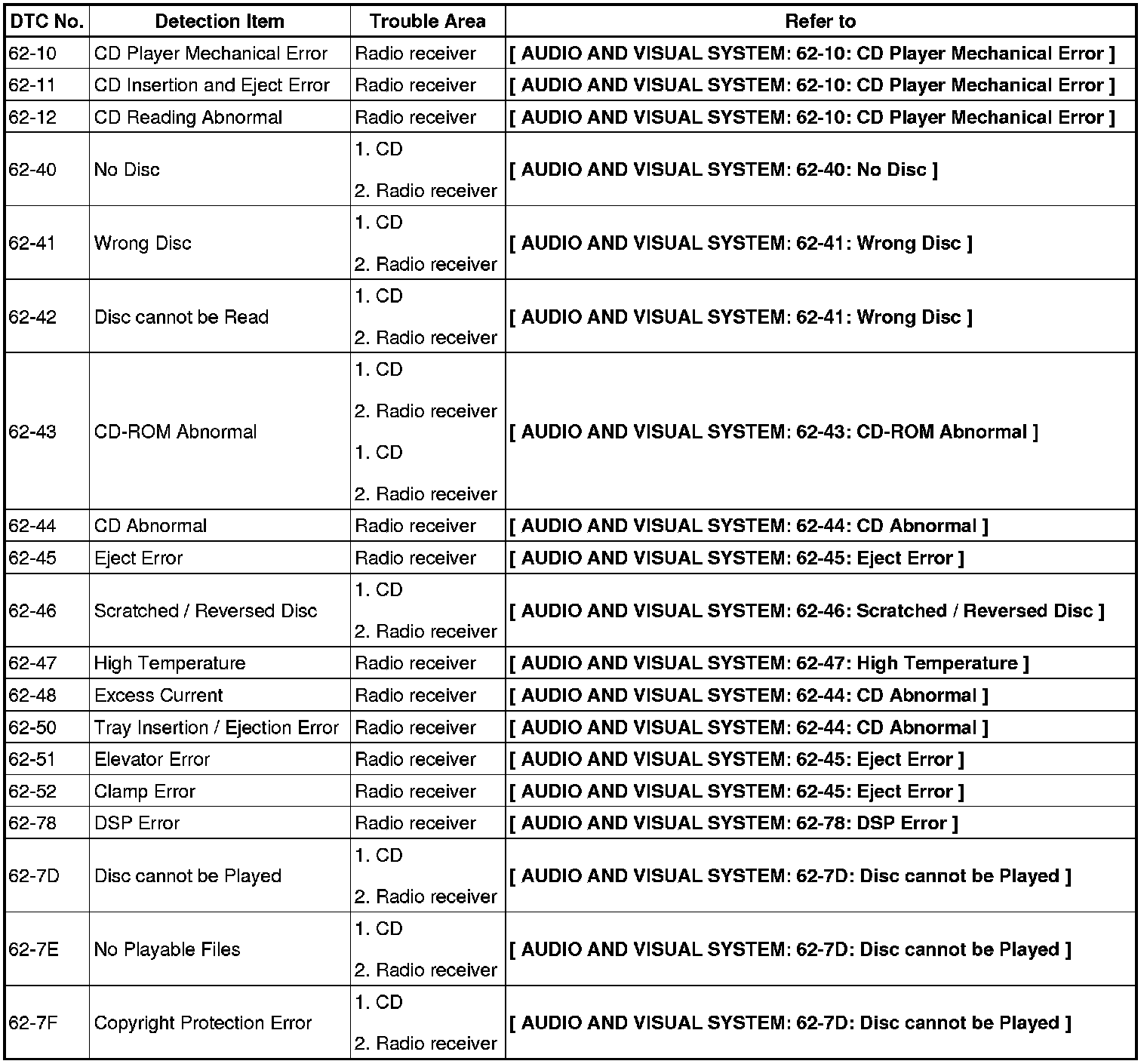

CD player
62-10 - 62-7F:

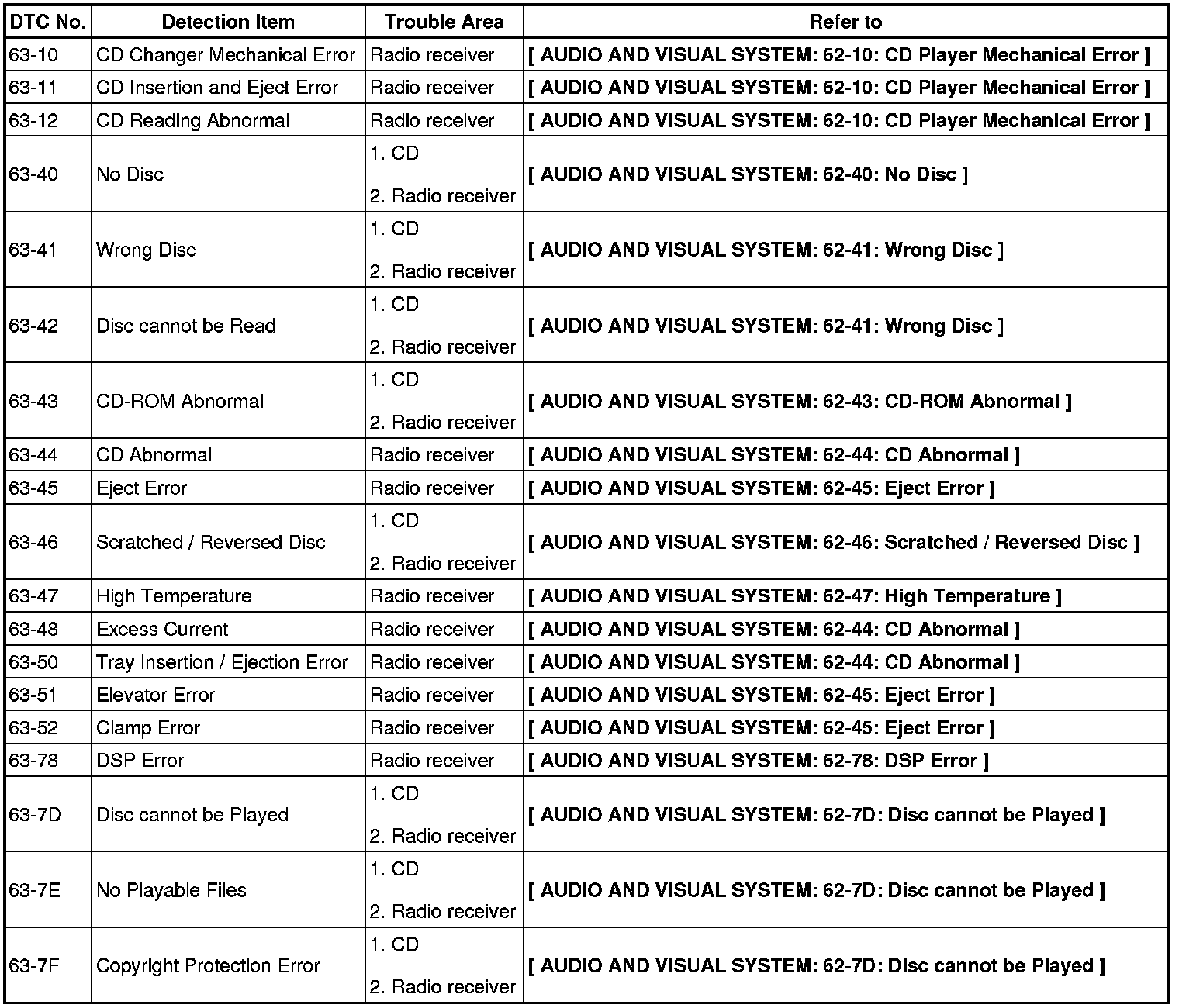

In-dash CD changer
63-10 - 63-7F:

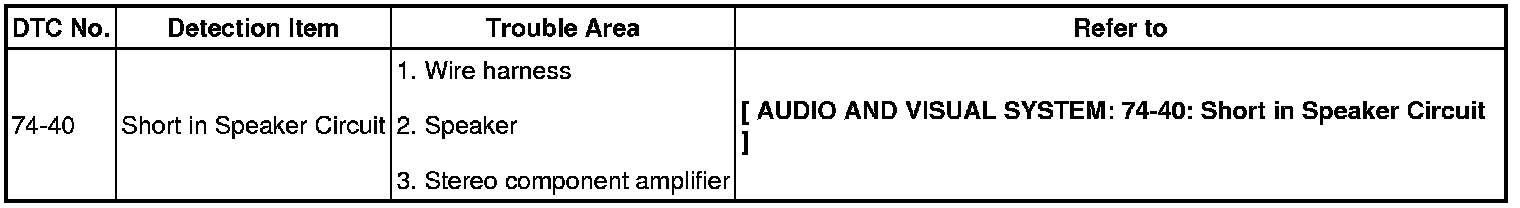

Speaker
