Electronically Controlled Brake System

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective "DTC Code" in the DTC chart.

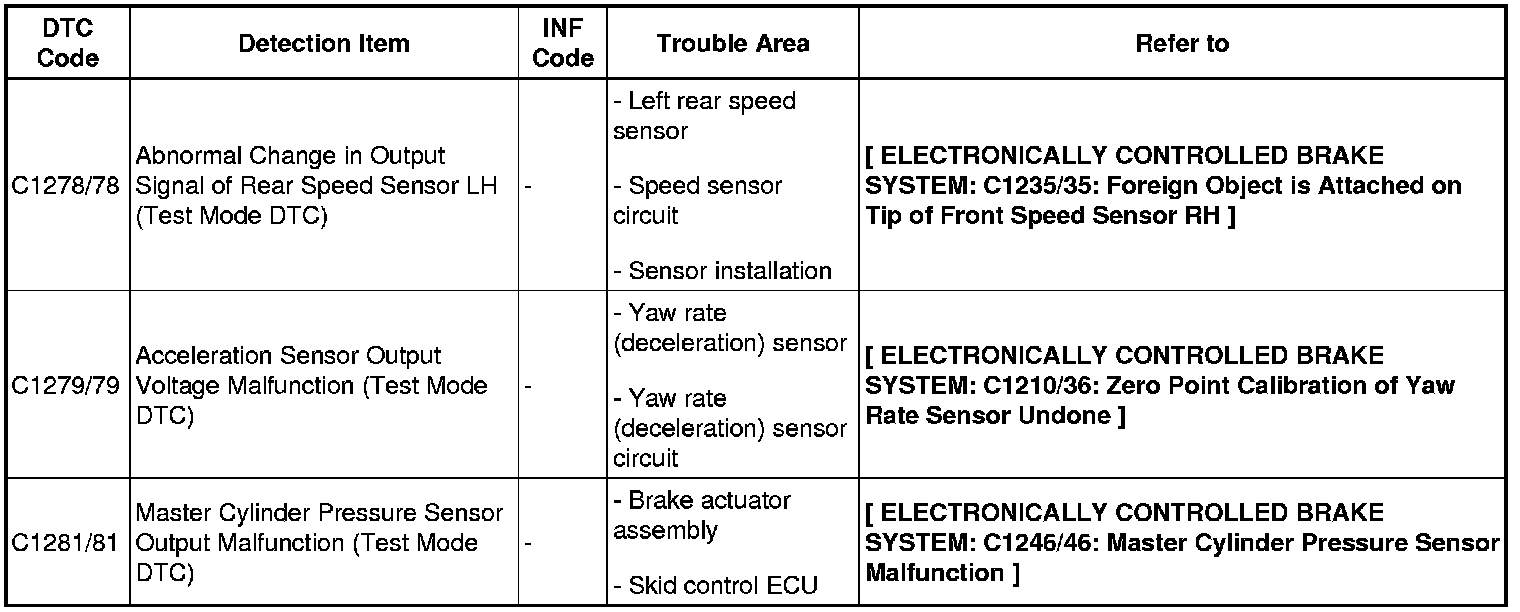

DTC chart of ABS:

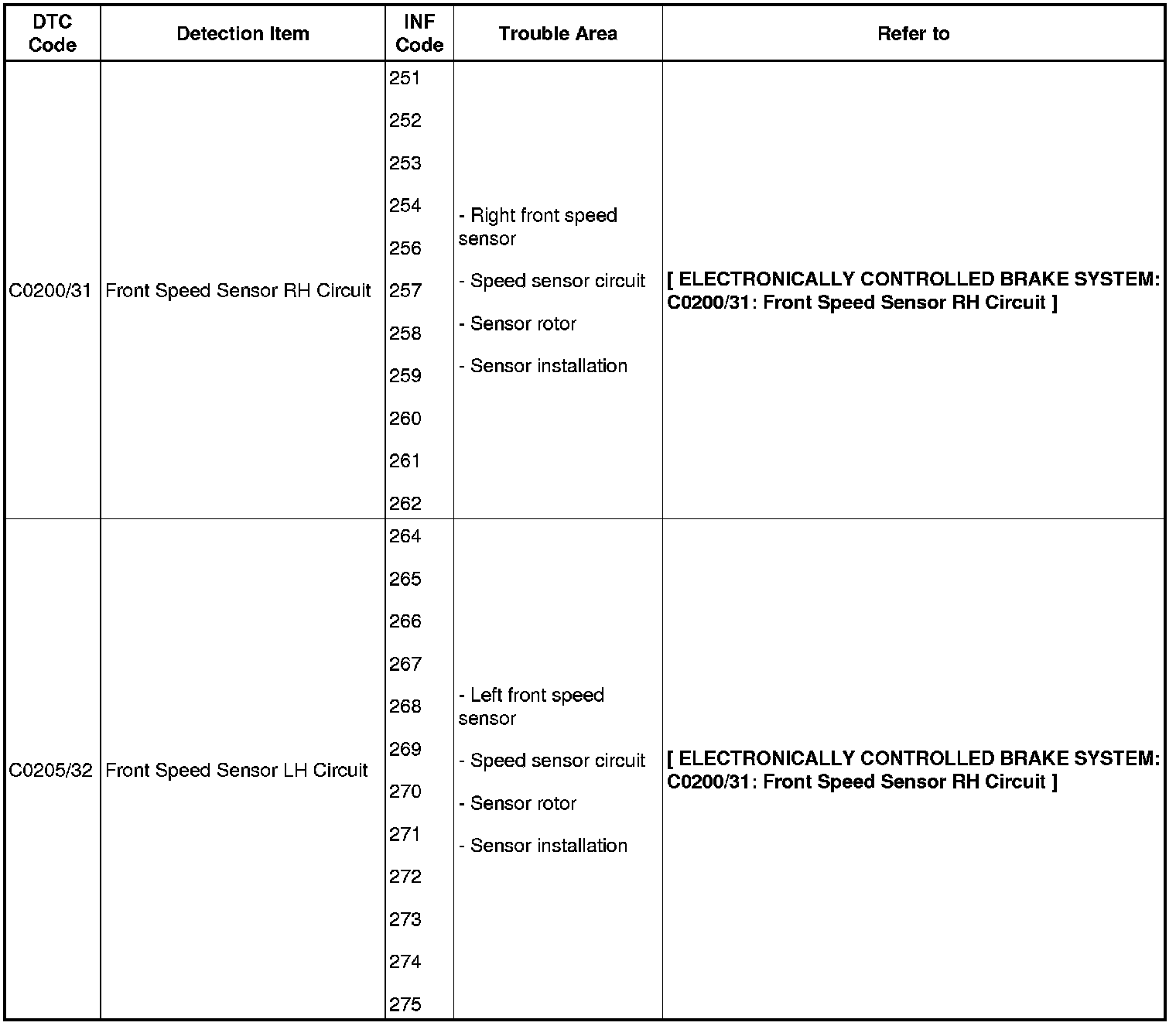

C0200/31 - C0205/32:

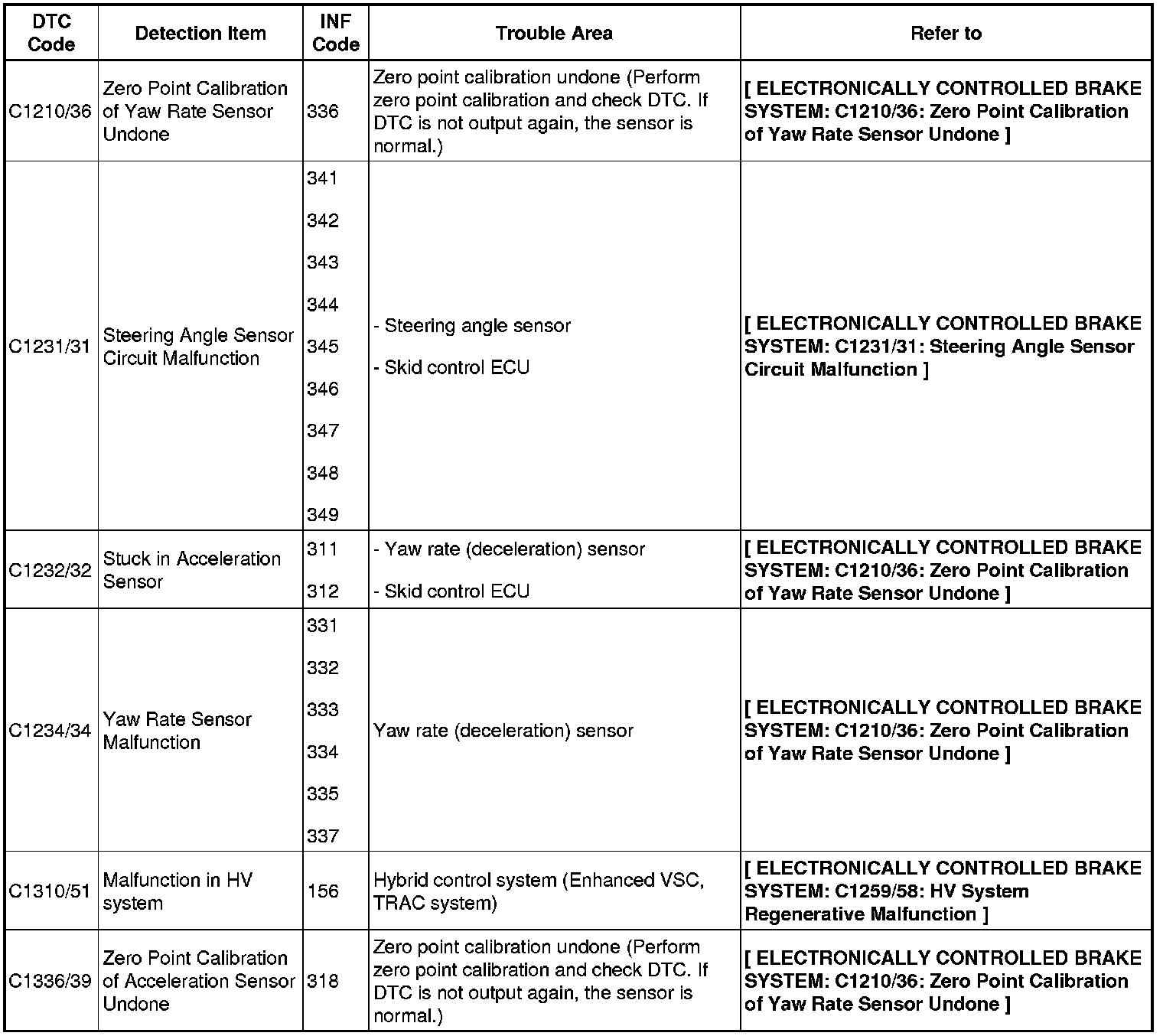

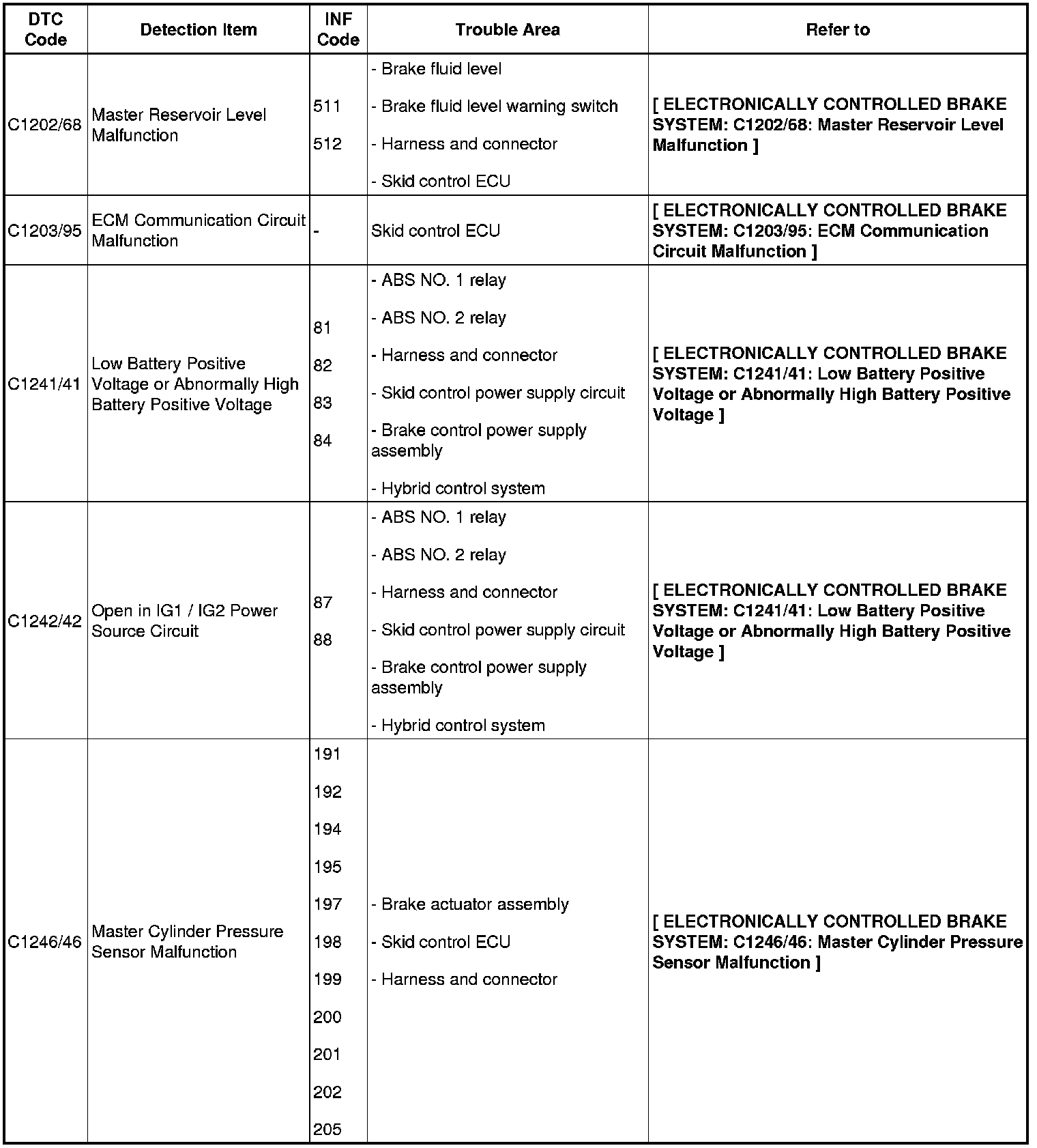

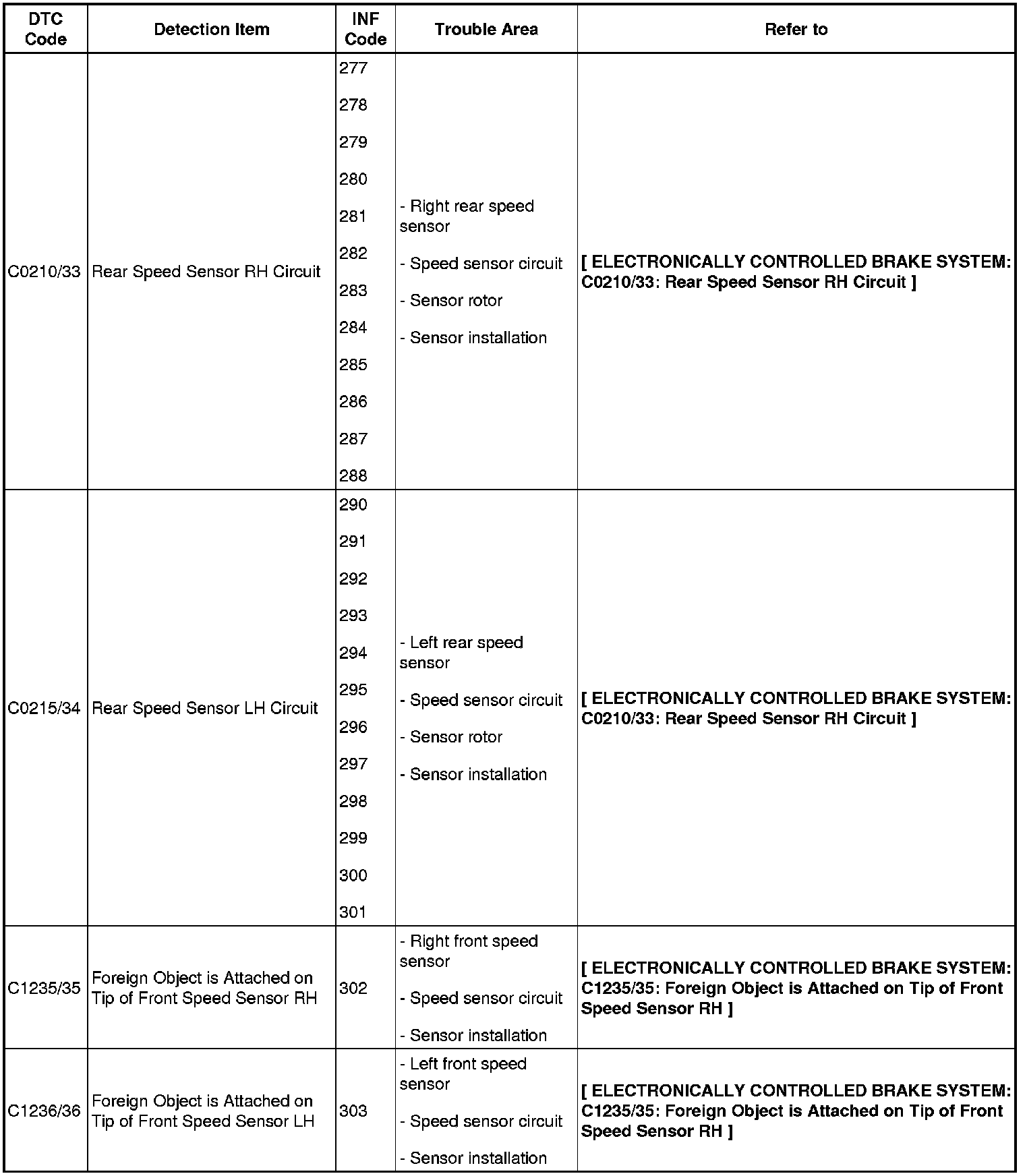

C0210/33 - C1236/36:

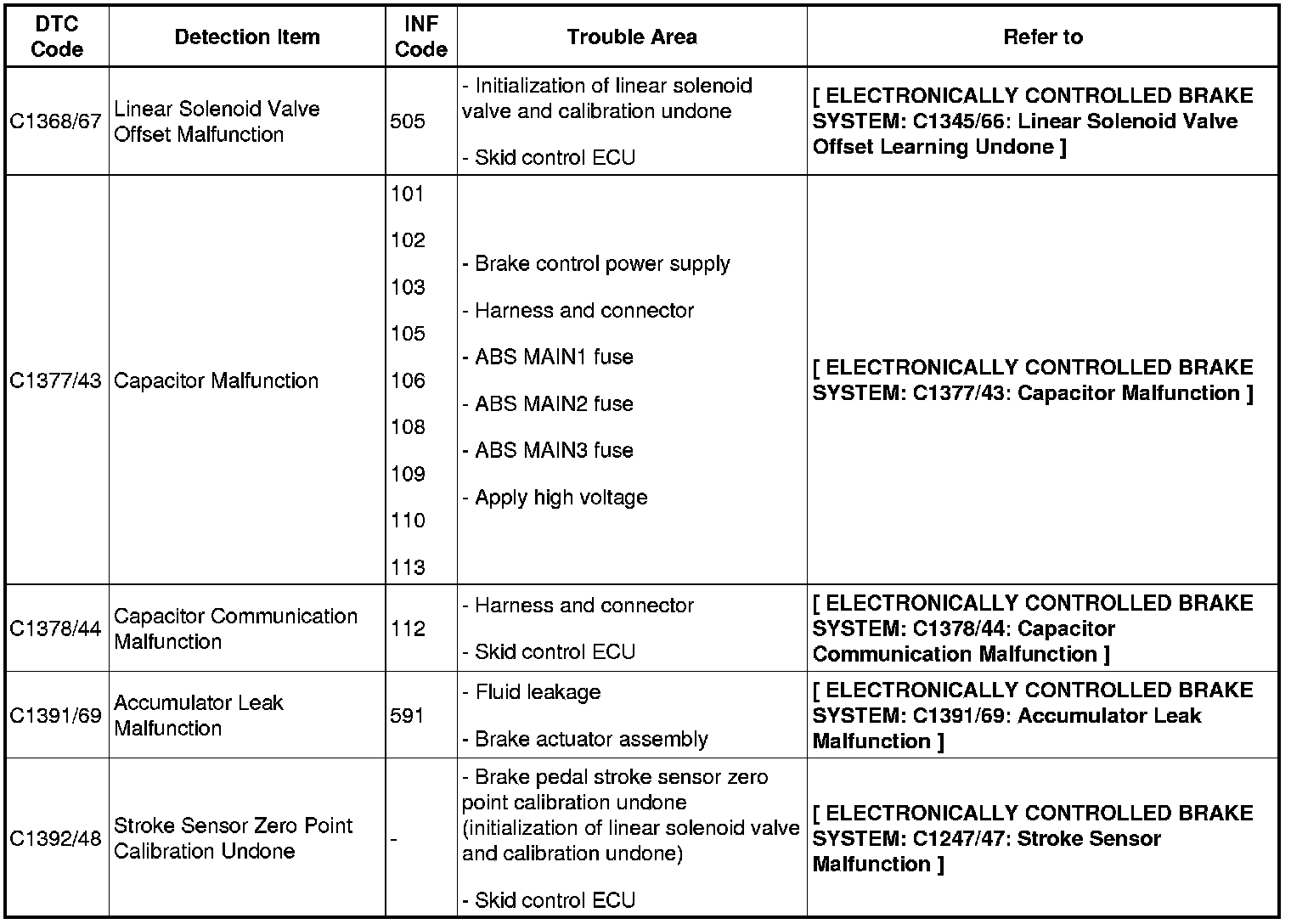

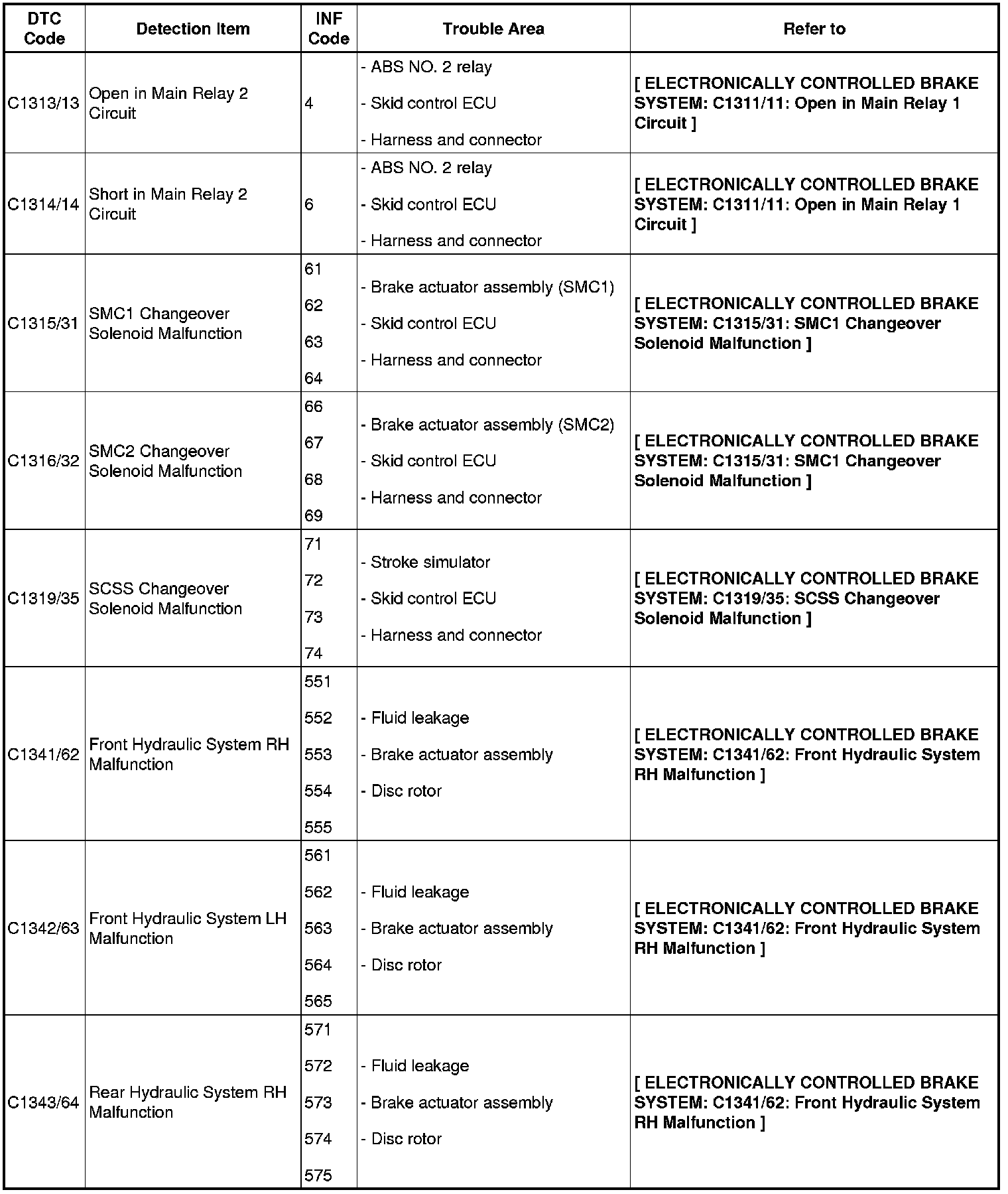

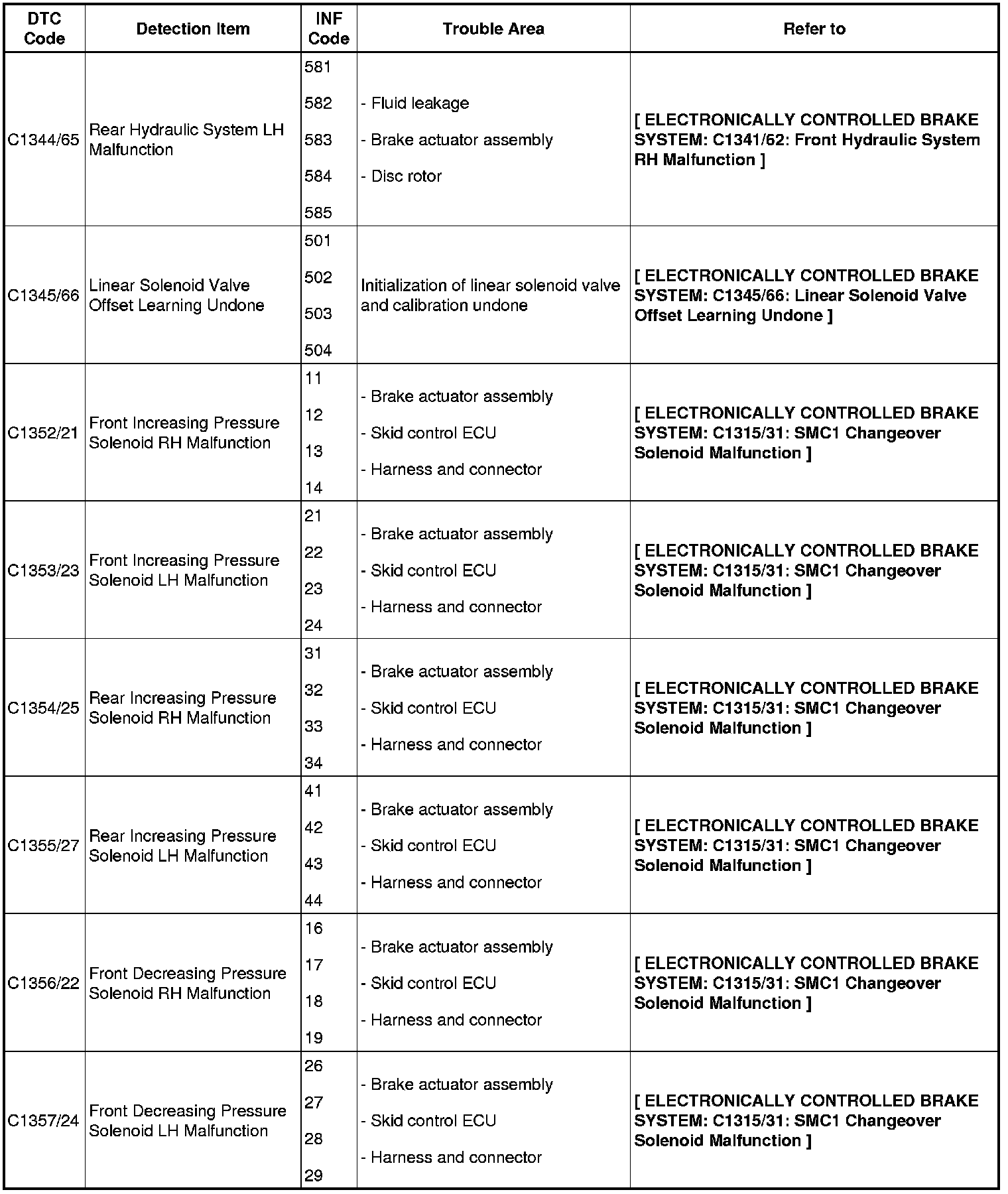

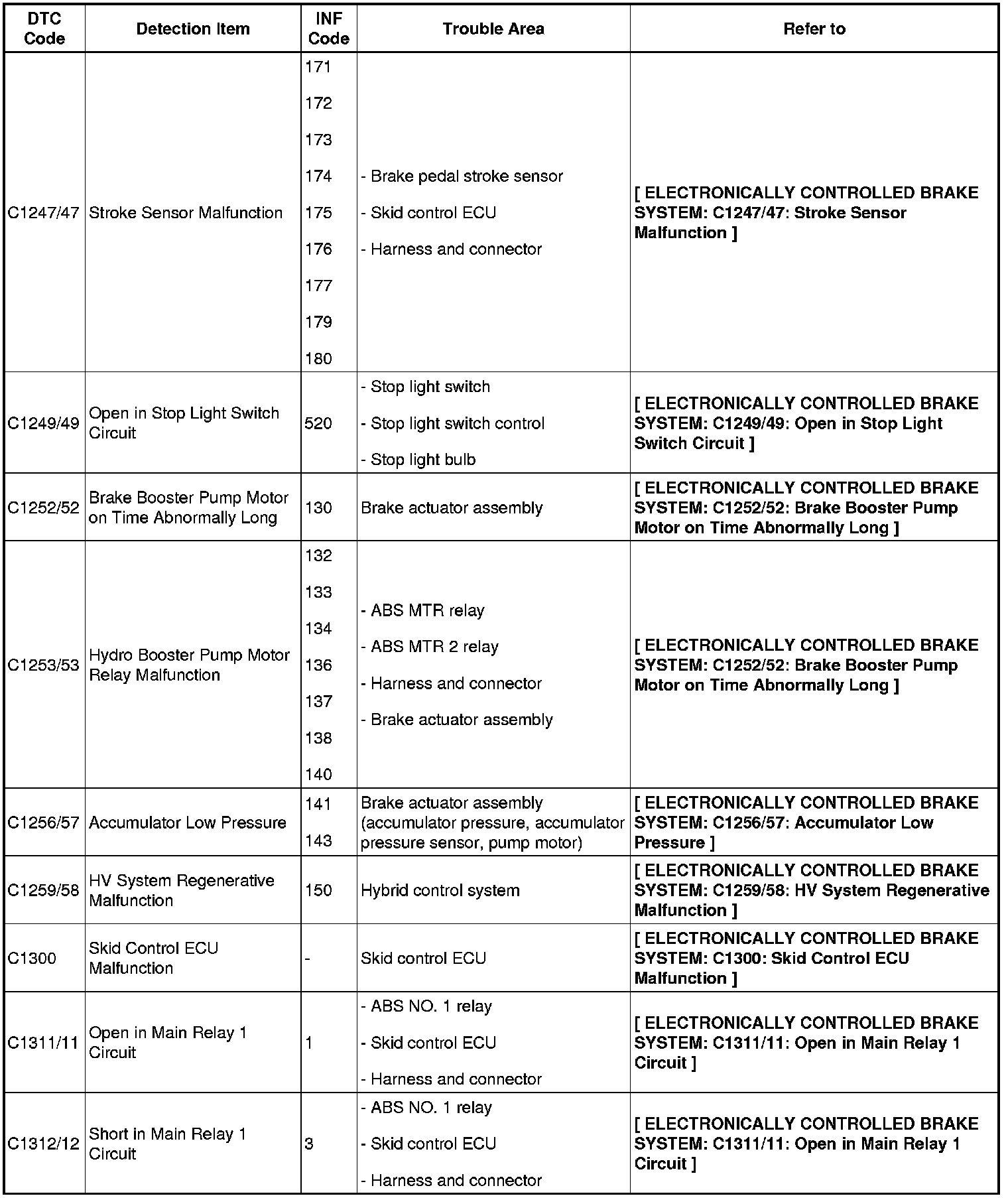

C1238/38 - C1381/97:

1. Drive the vehicle at the vehicle speed of (50 km/h) 31 mph and keep depressing the brake pedal strongly for approximately 3 seconds.
2. Repeat the above operation 3 times or more and check that the ABS warning light goes off.
3. Clear the DTC.
HINT: In some cases, Techstream cannot be used when ABS warning light remains on.

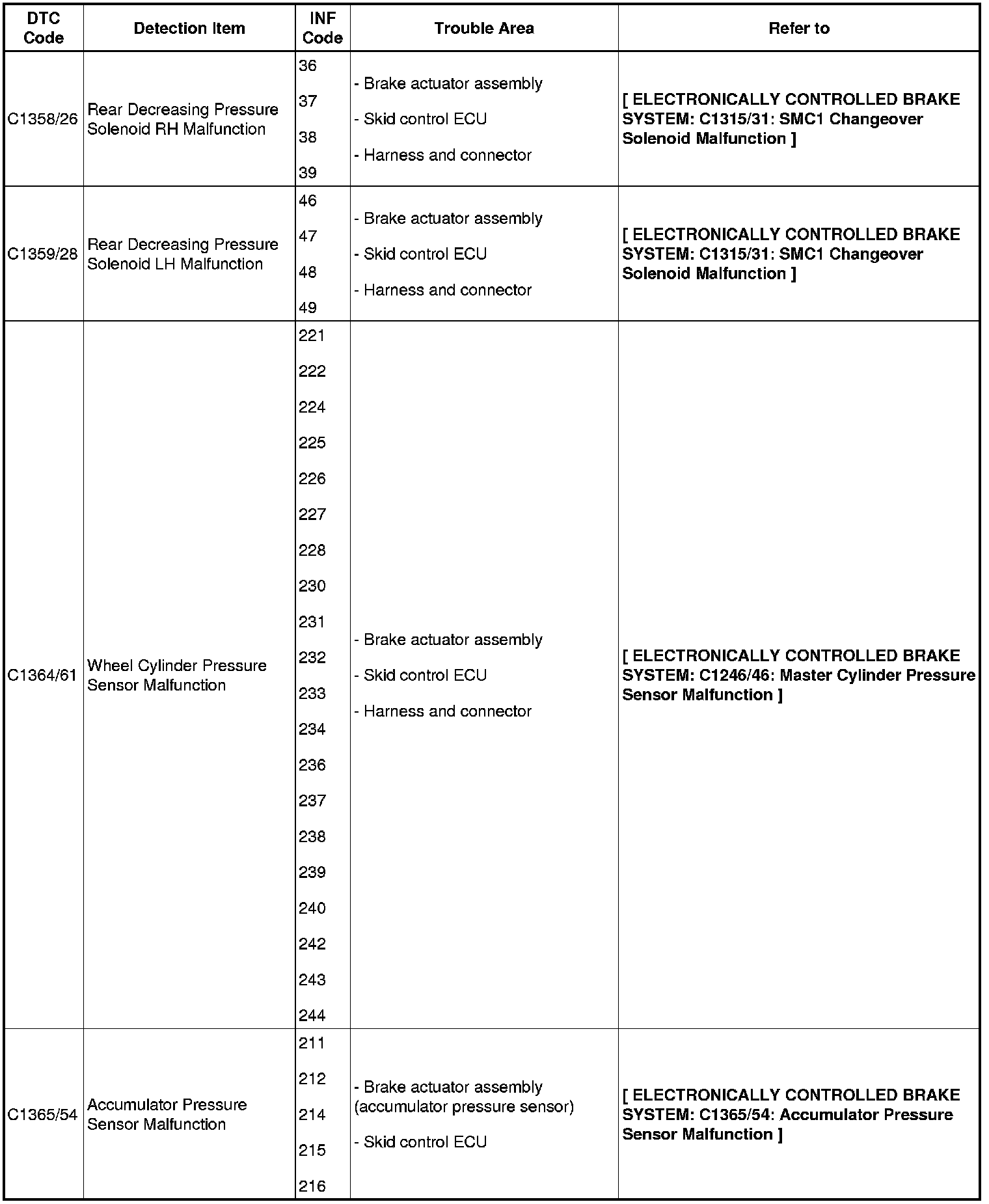

DTC chart of Enhanced VSC:
