P112 HYBRID BATTERY CONTROL: HYBRID BATTERY SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

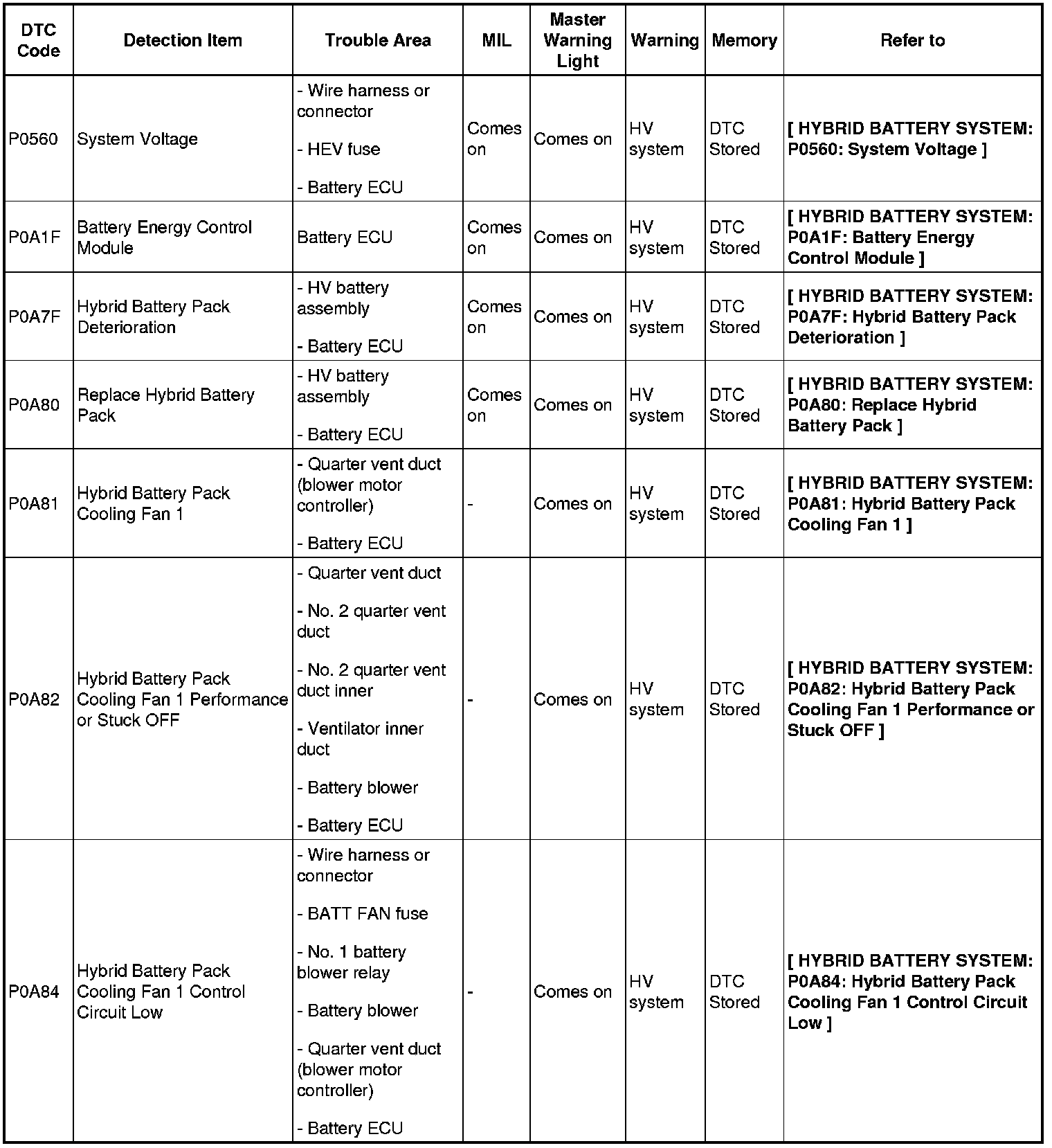

P0560 - P0A84:

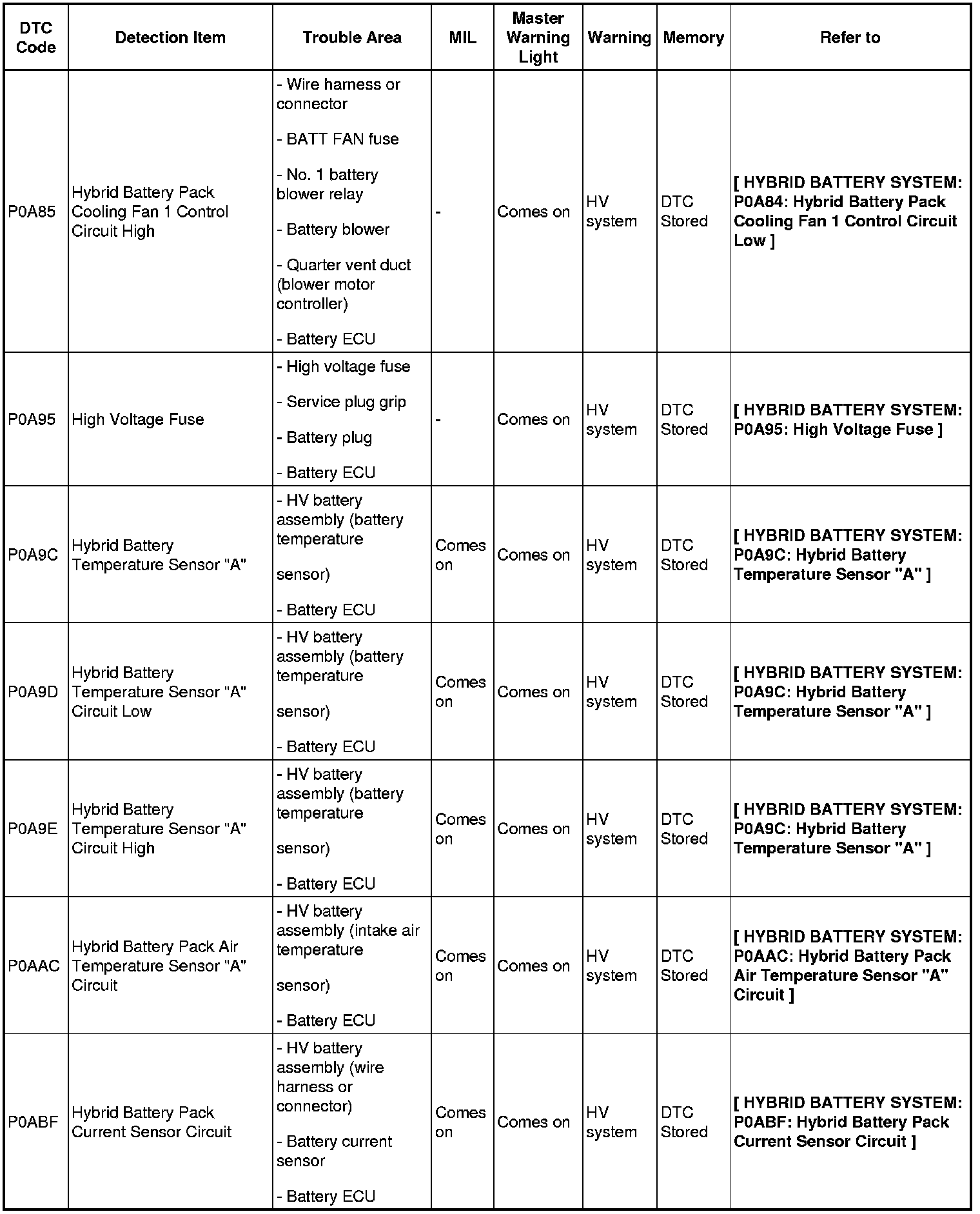

P0A85 - P0ABF:

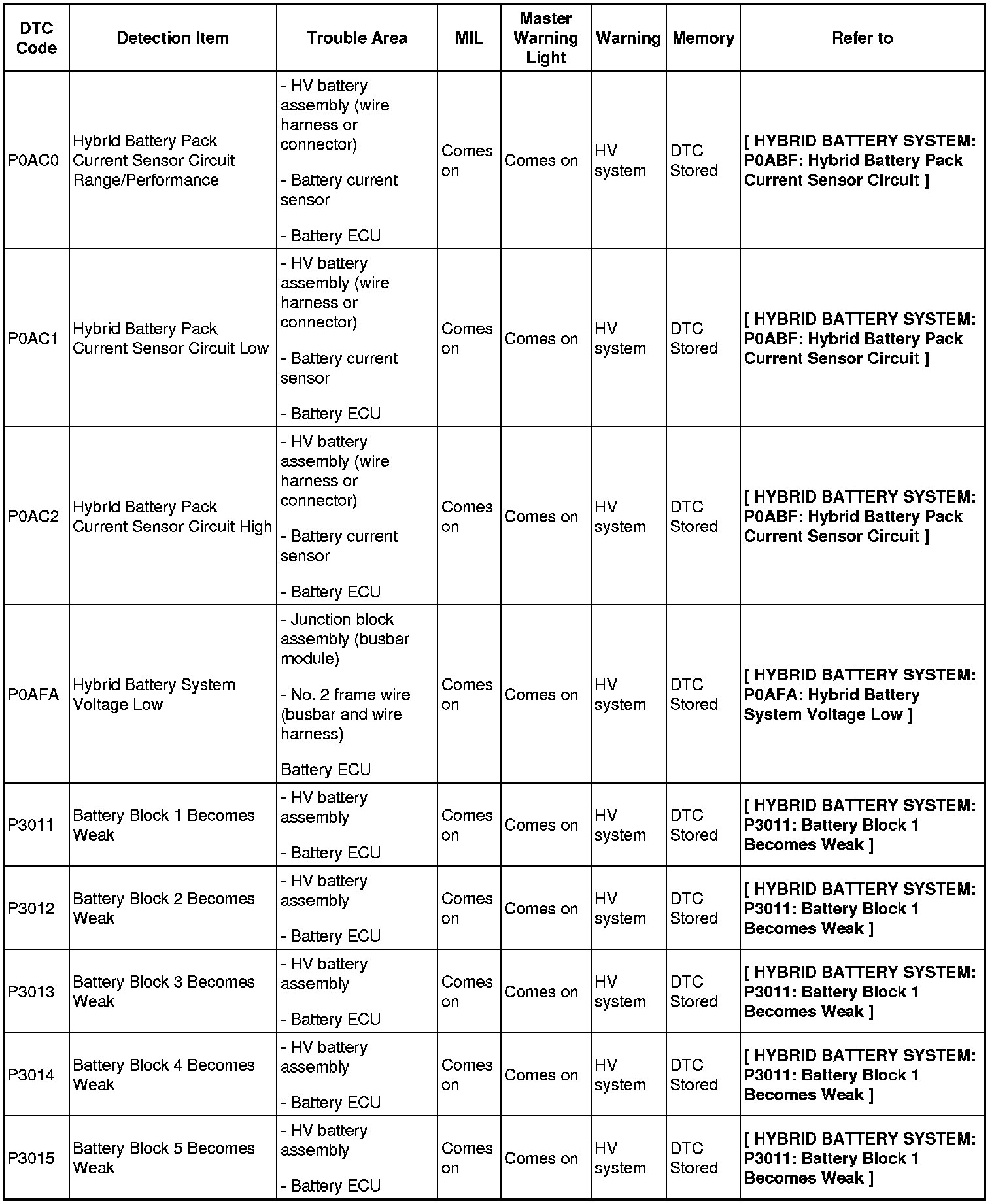

P0AC0 - P3015:

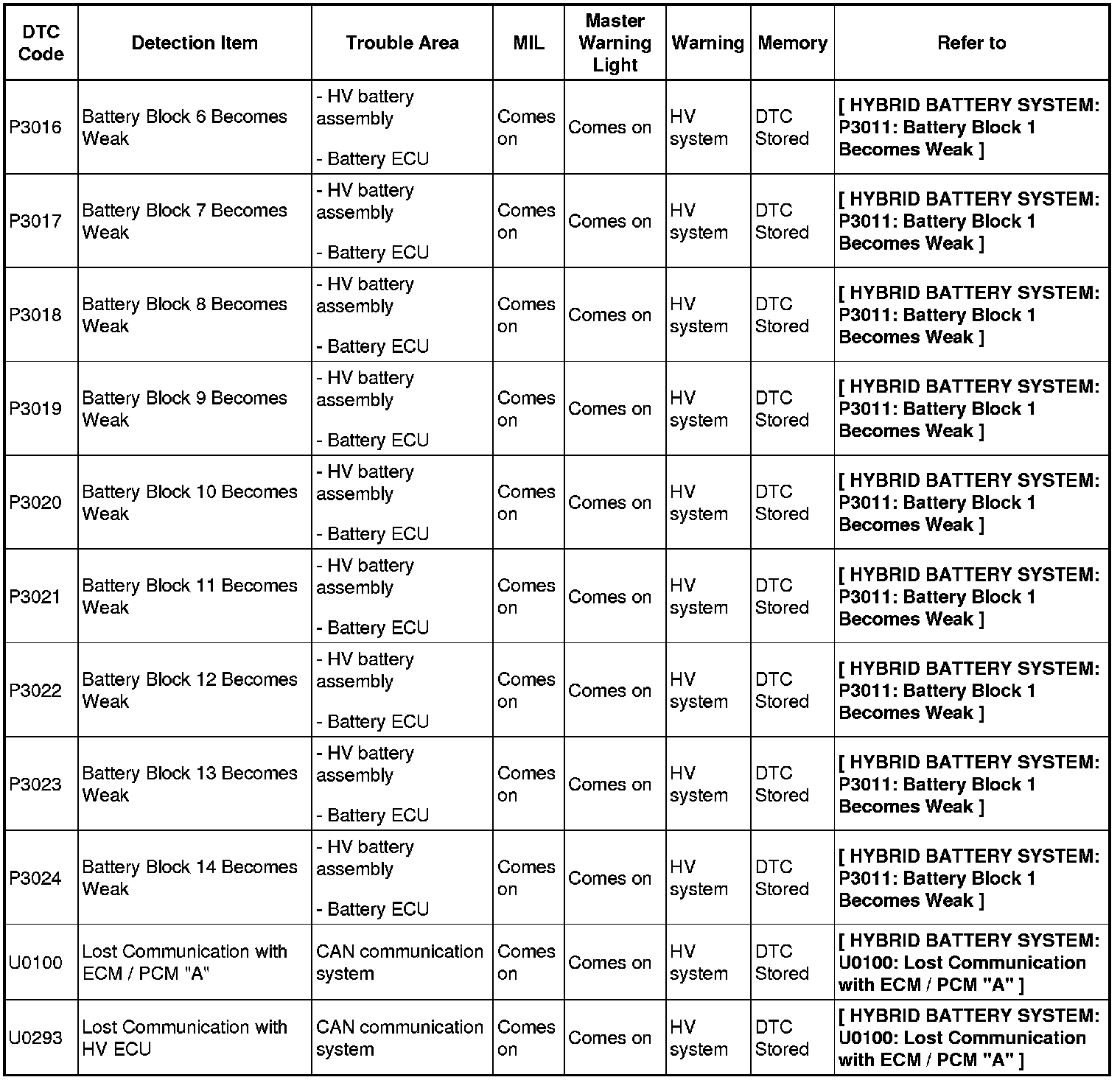

P3016 - U0293:
