Hybrid Transaxle Electronic Shift Lever System
HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

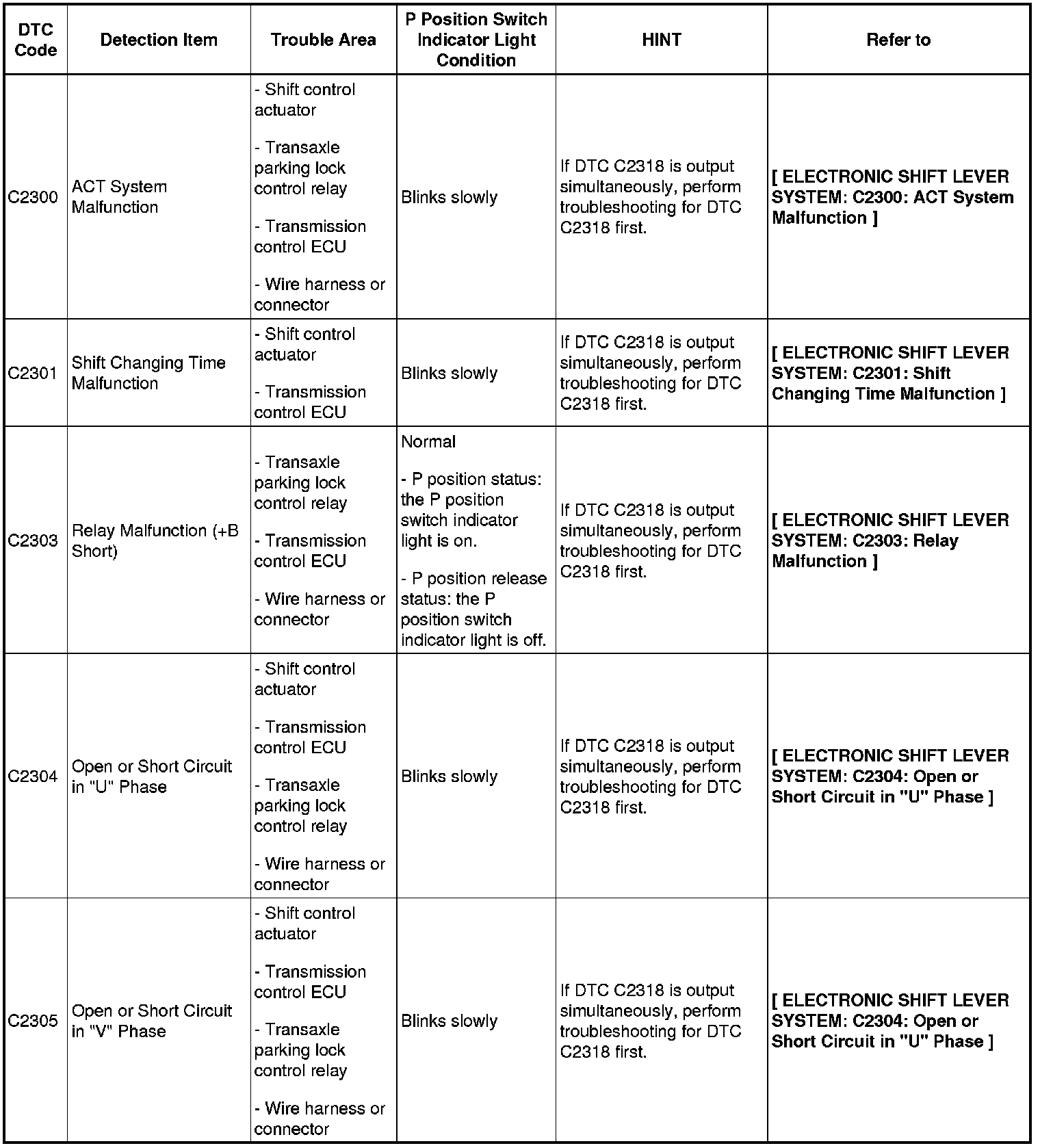

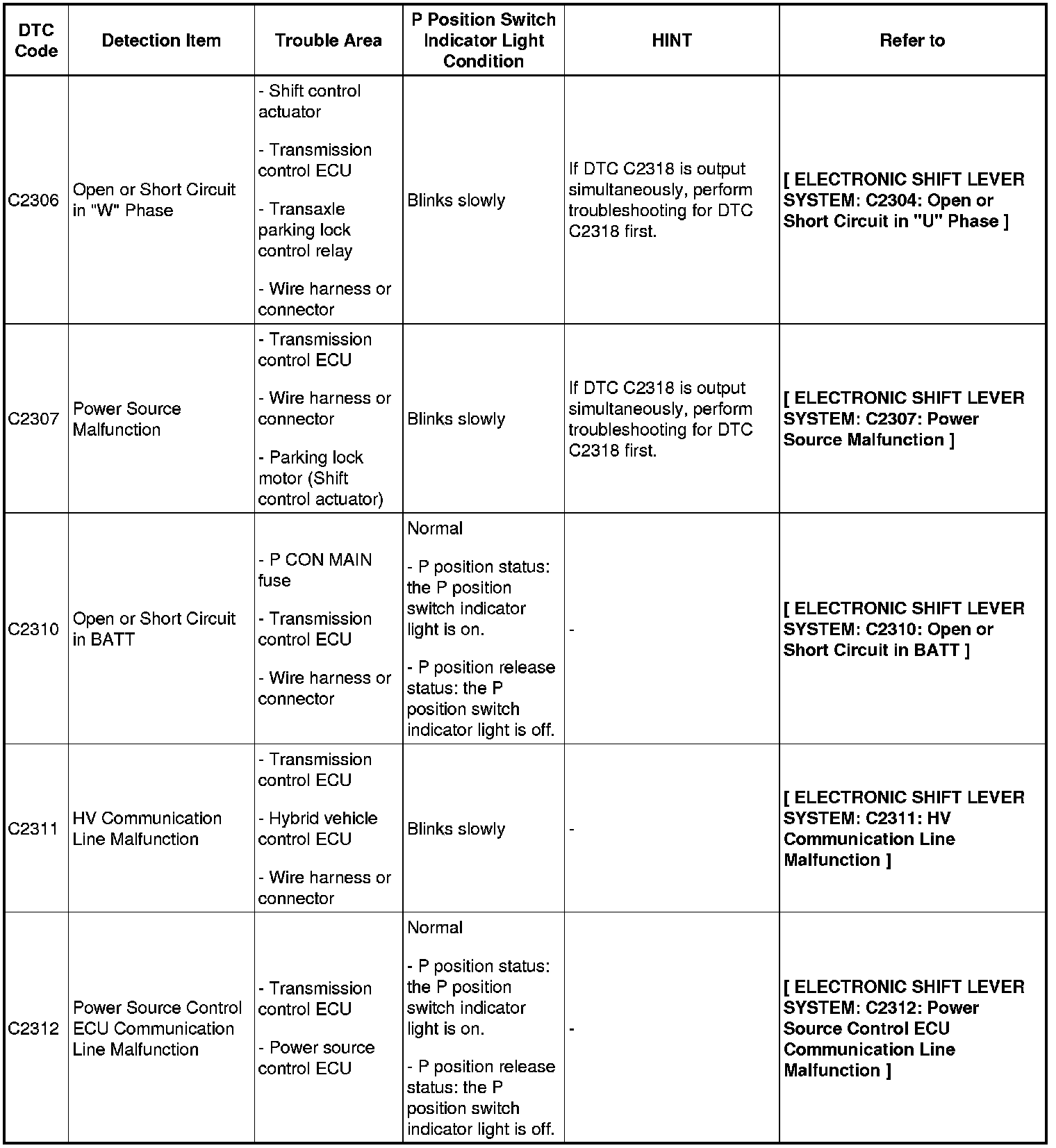

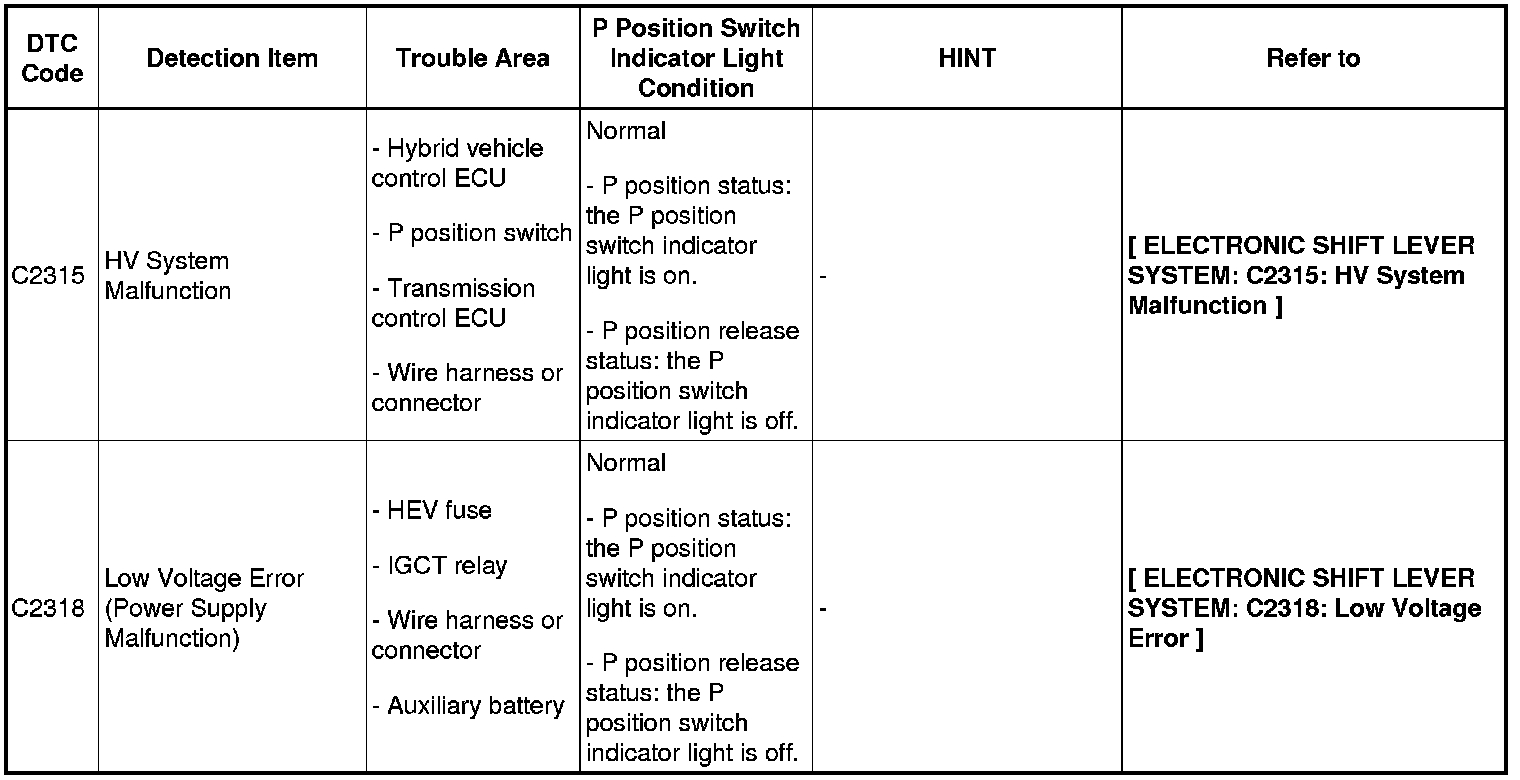

If a trouble code is displayed during the DTC check, check the circuit listed for that code in the table below and proceed.
HINT:
- When the DTC C2300, C2301, C2304, C2305, C2306, C2307, C2311 and C2312 are detected, DTC P3102 indicating the electronic shift lever system malfunctions are detected for the hybrid system as well. Because of this, the hybrid system DTCs must be cleared after clearing the electronic shift lever system DTCs.
- Remove the P CON MAIN fuse to erase DTCs C2300, C2301, C2303, C2304, C2305, C2306 and C2307 because they cannot be erased with the Techstream.
- When a DTC is detected, the master warning light comes on and an error message is indicated on the multi-display.
- The indicator blinks quickly when it takes a long time to switch between the P position status and the P position release status.
