Multiplex Communication System

MULTIPLEX COMMUNICATION: MULTIPLEX COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

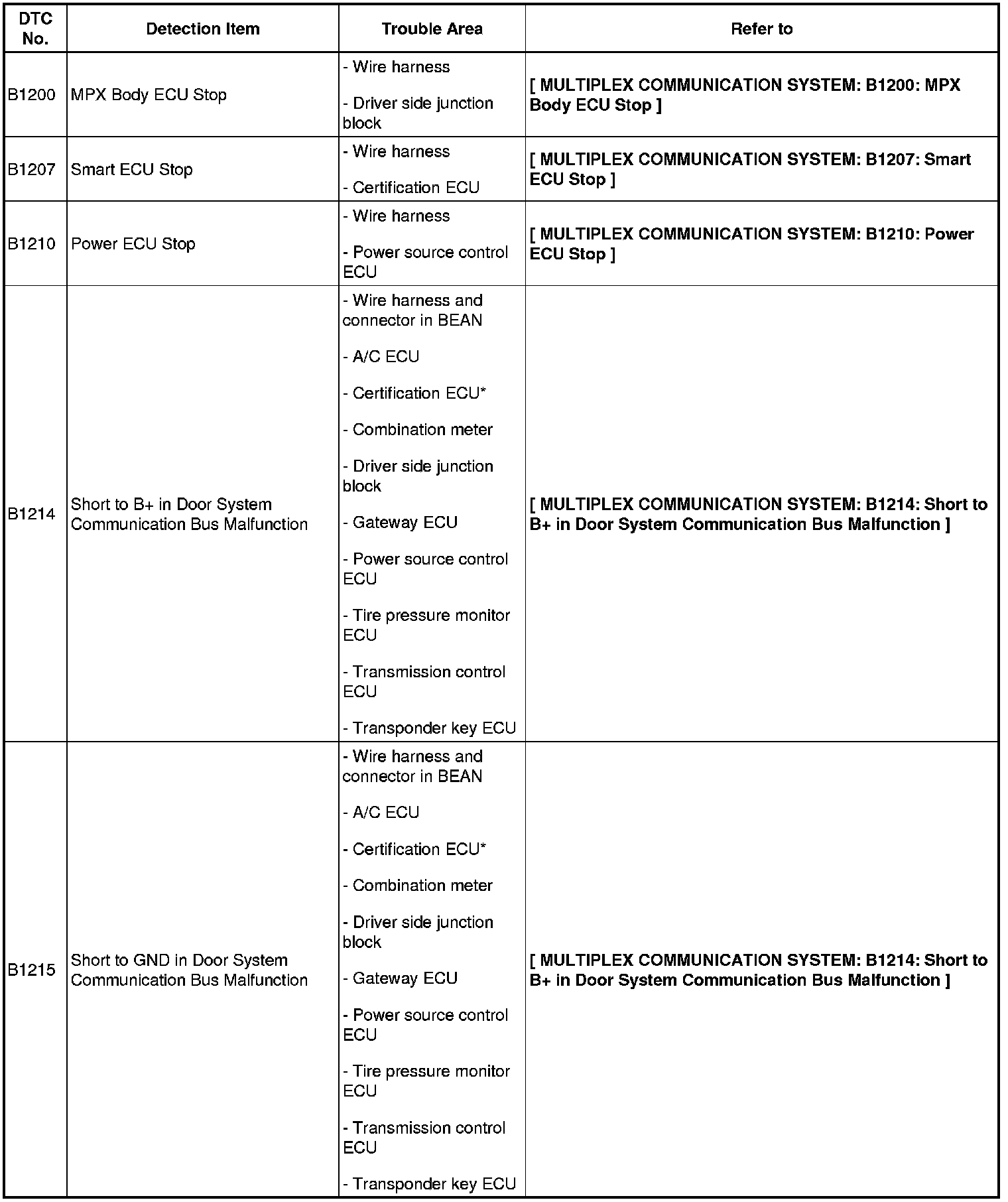

B1200 - B1215:

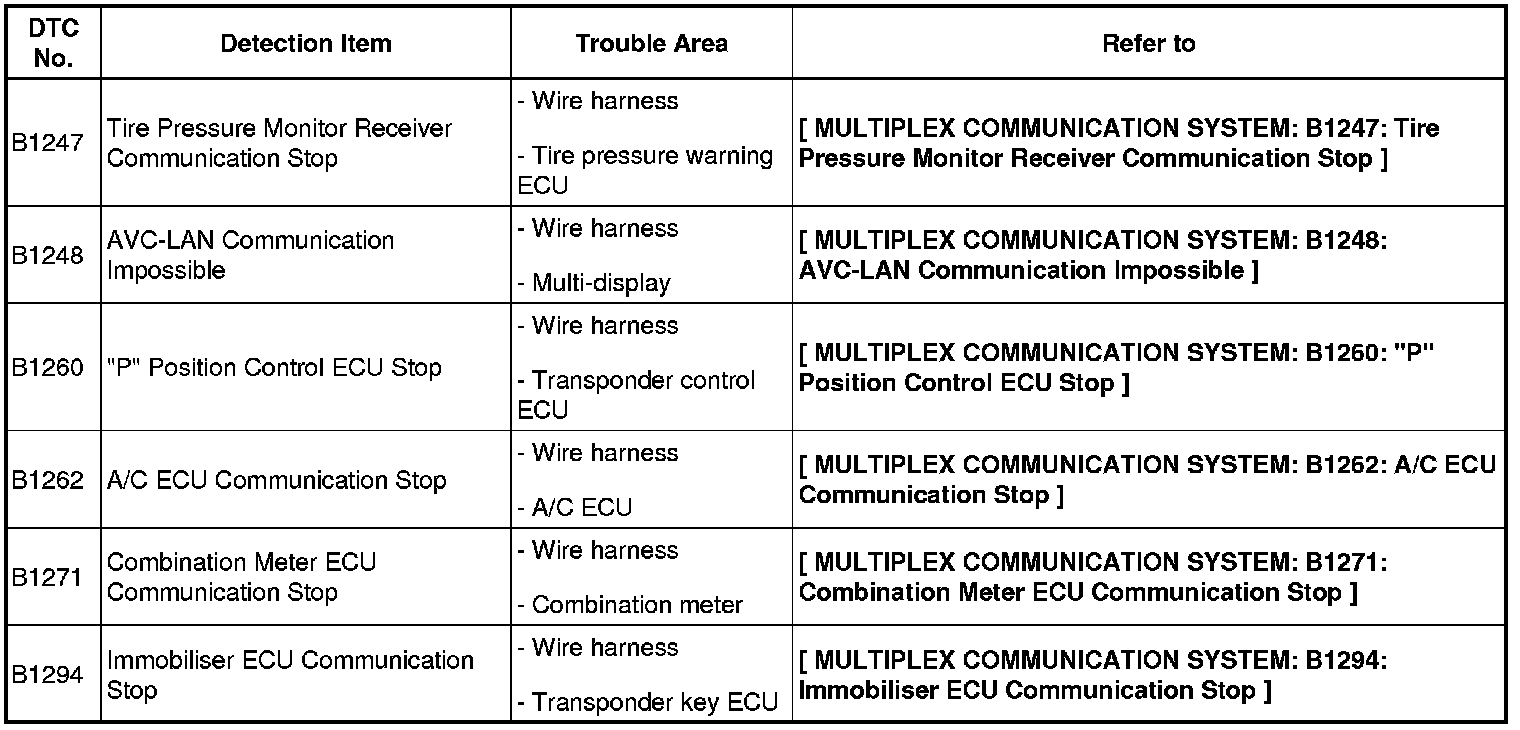

B1247 - B1294:

HINT: *: Equipped on smart key vehicles.
