NAVIGATION: NAVIGATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

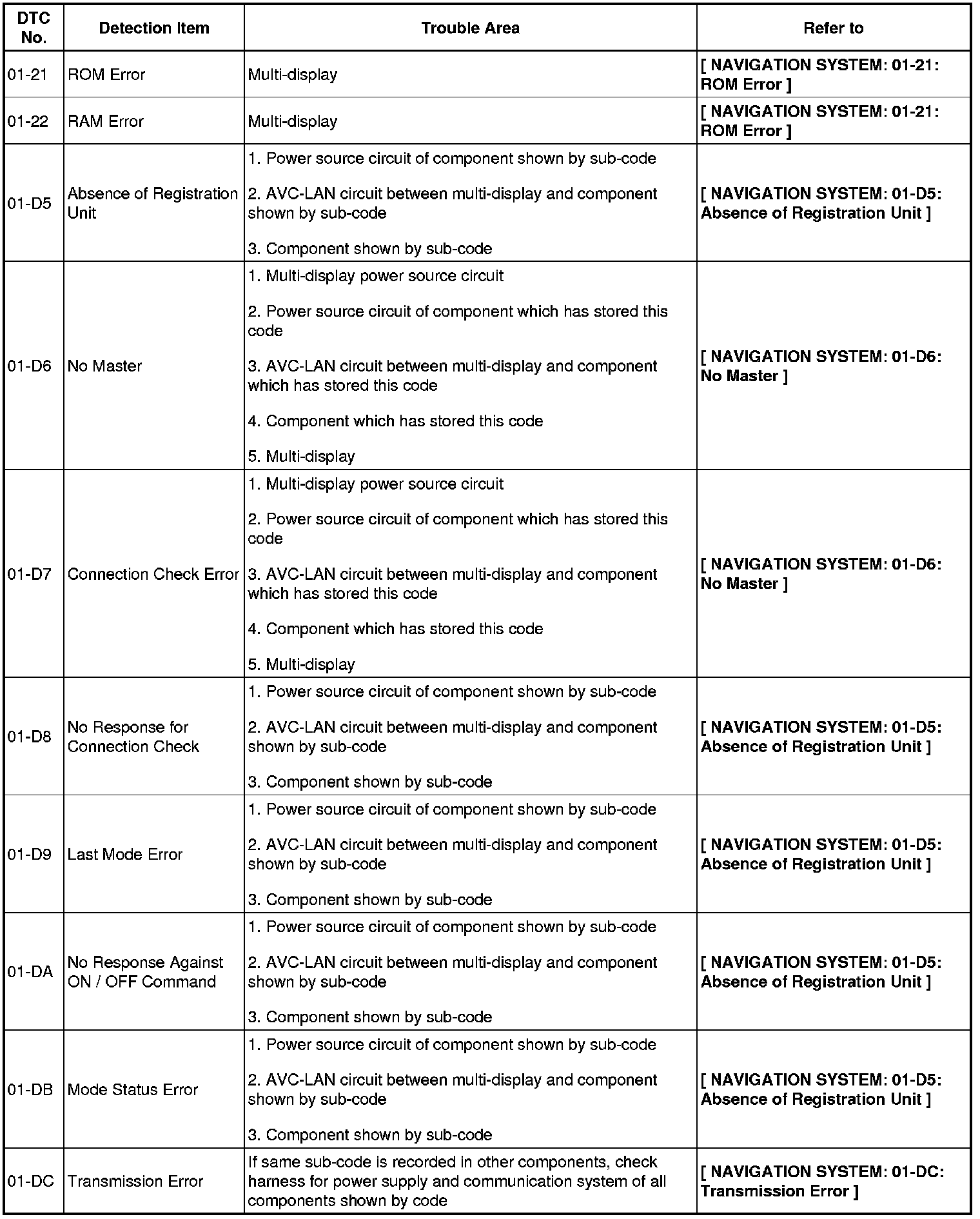

01-21 - 01-DC:

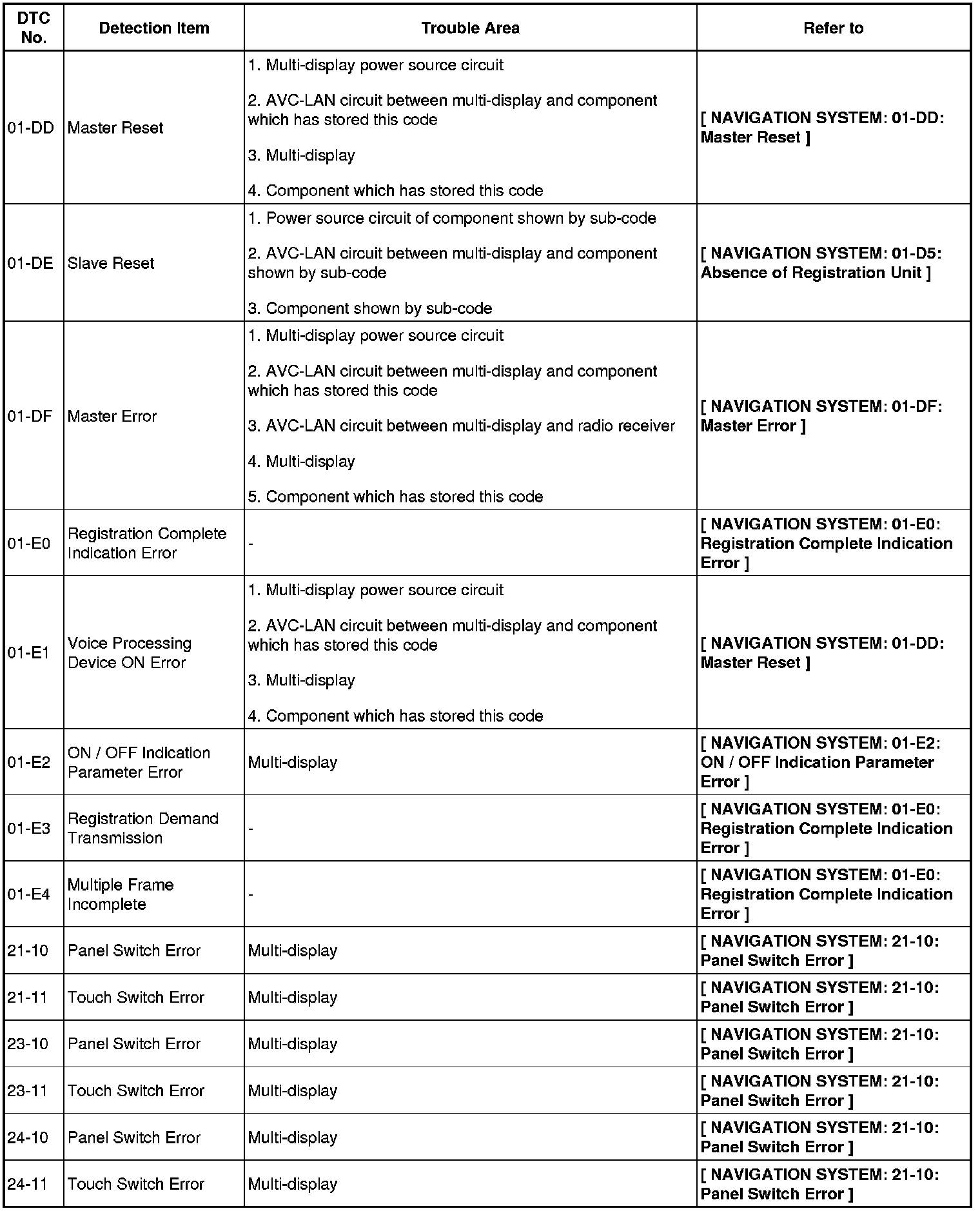

01-DD - 24-11:

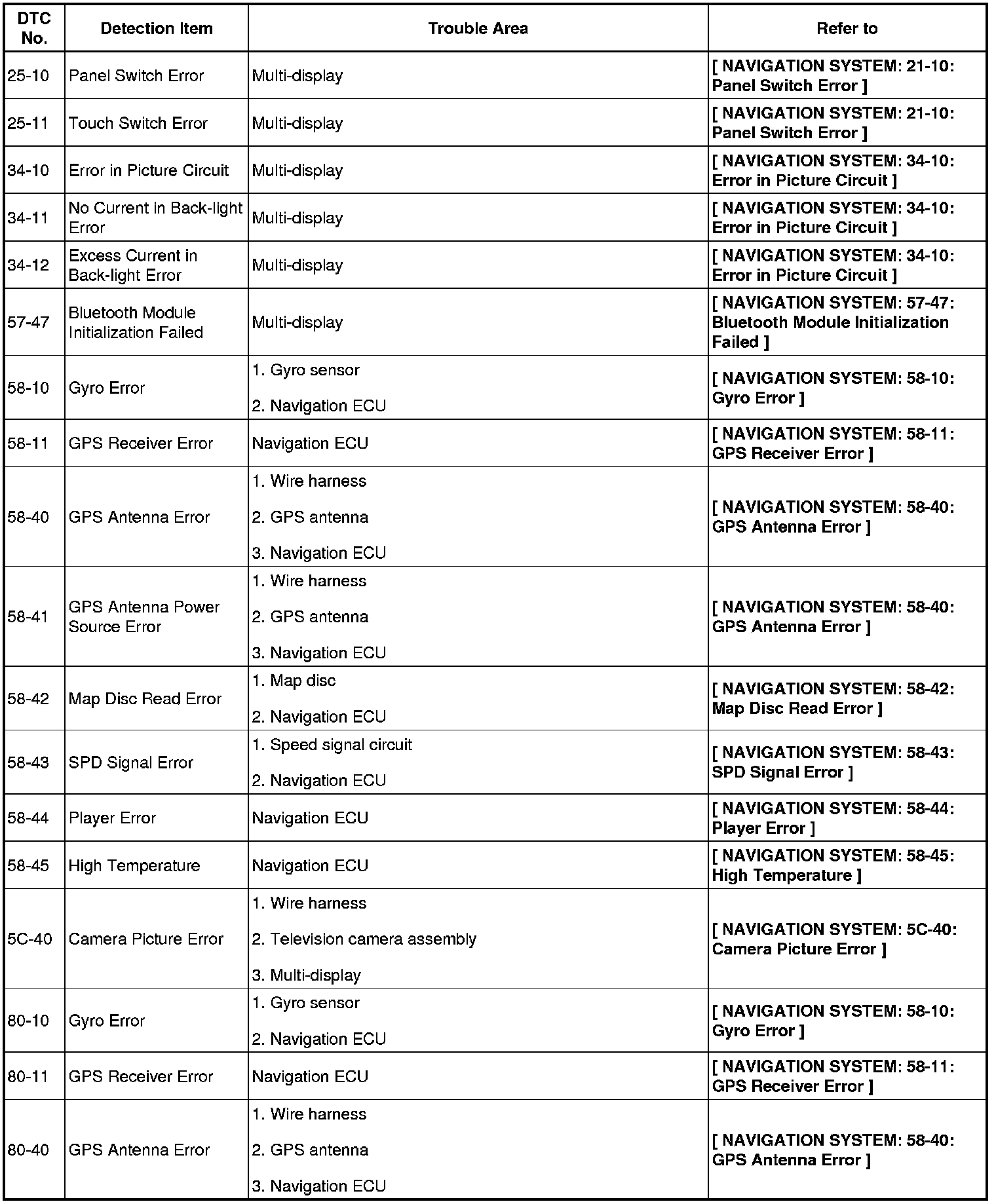

25-10 - 80-40:

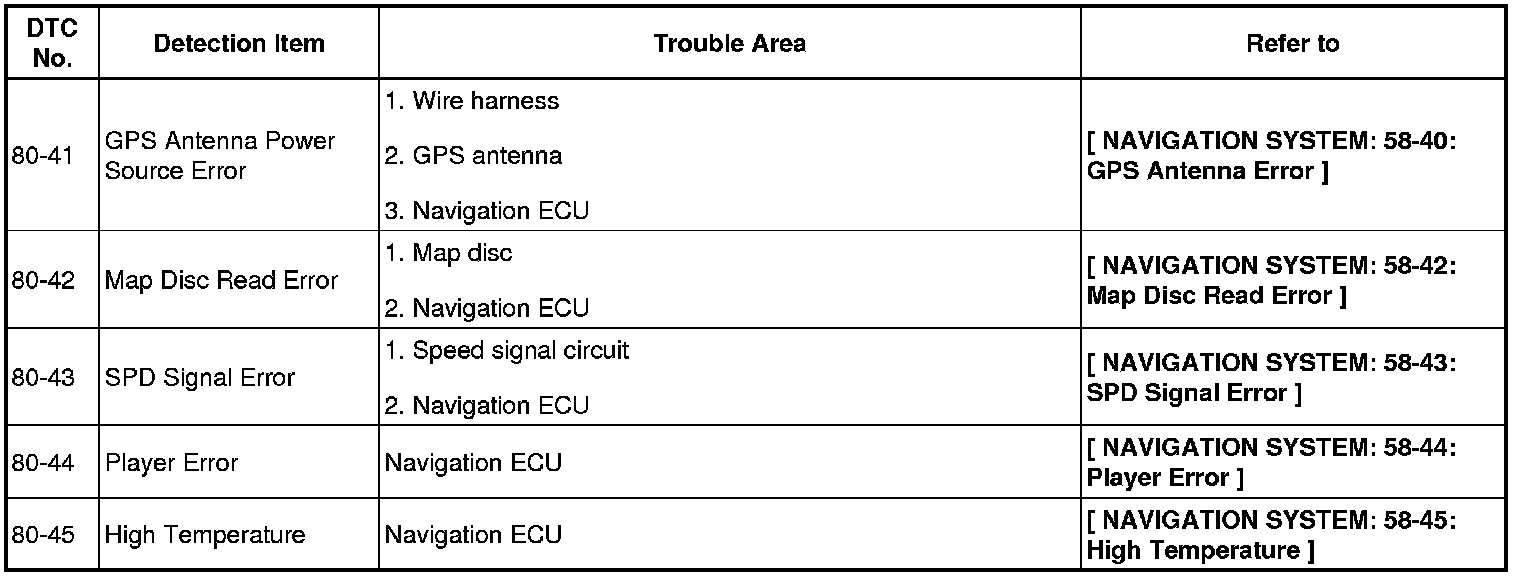

80-41 - 80-45:
