Occupant Classification System








SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table below (proceed to the applicable Diagnostic Trouble Code Test listed for that circuit).

OCCUPANT CLASSIFICATION SYSTEM:

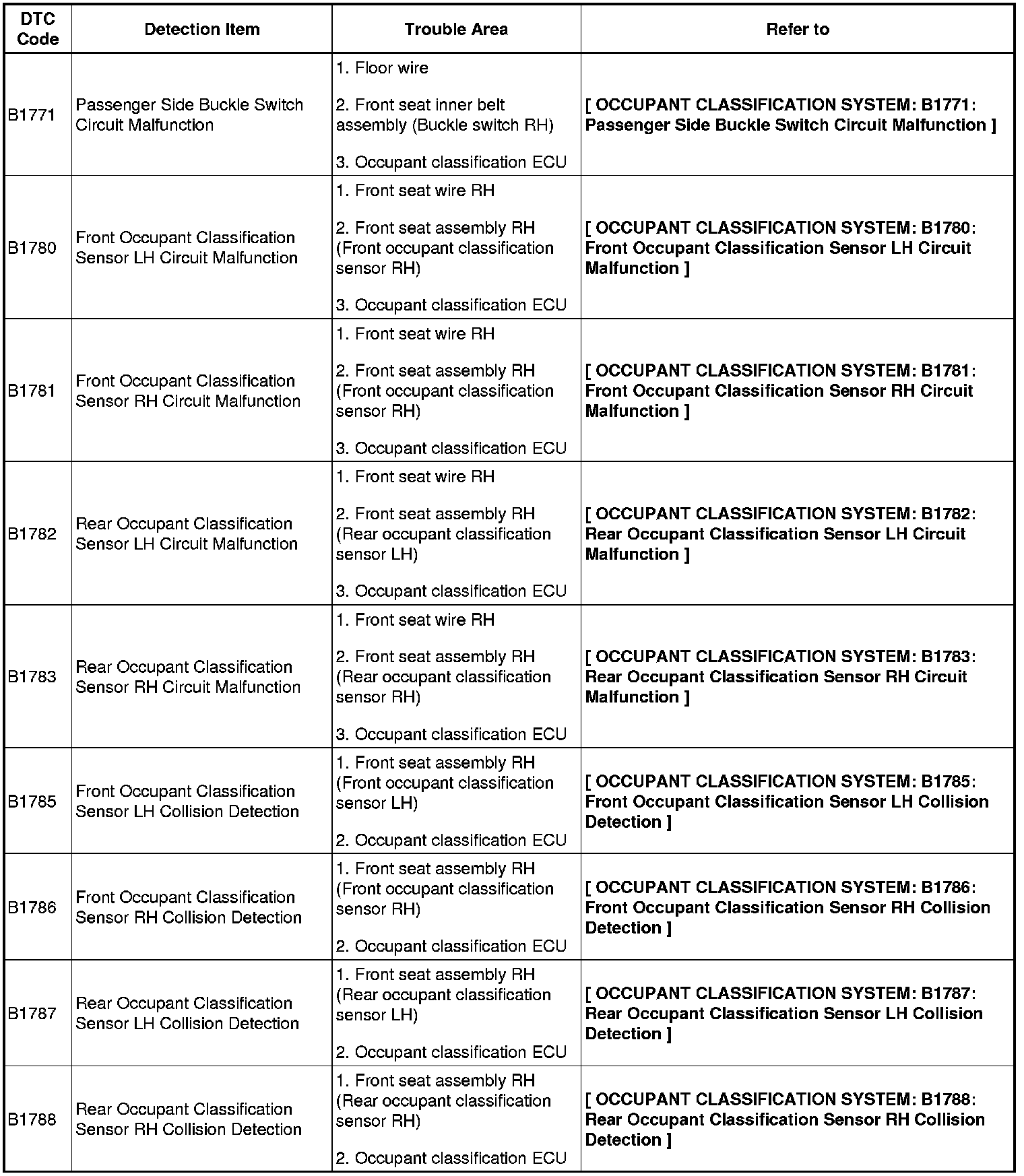

B1771 - B1788:

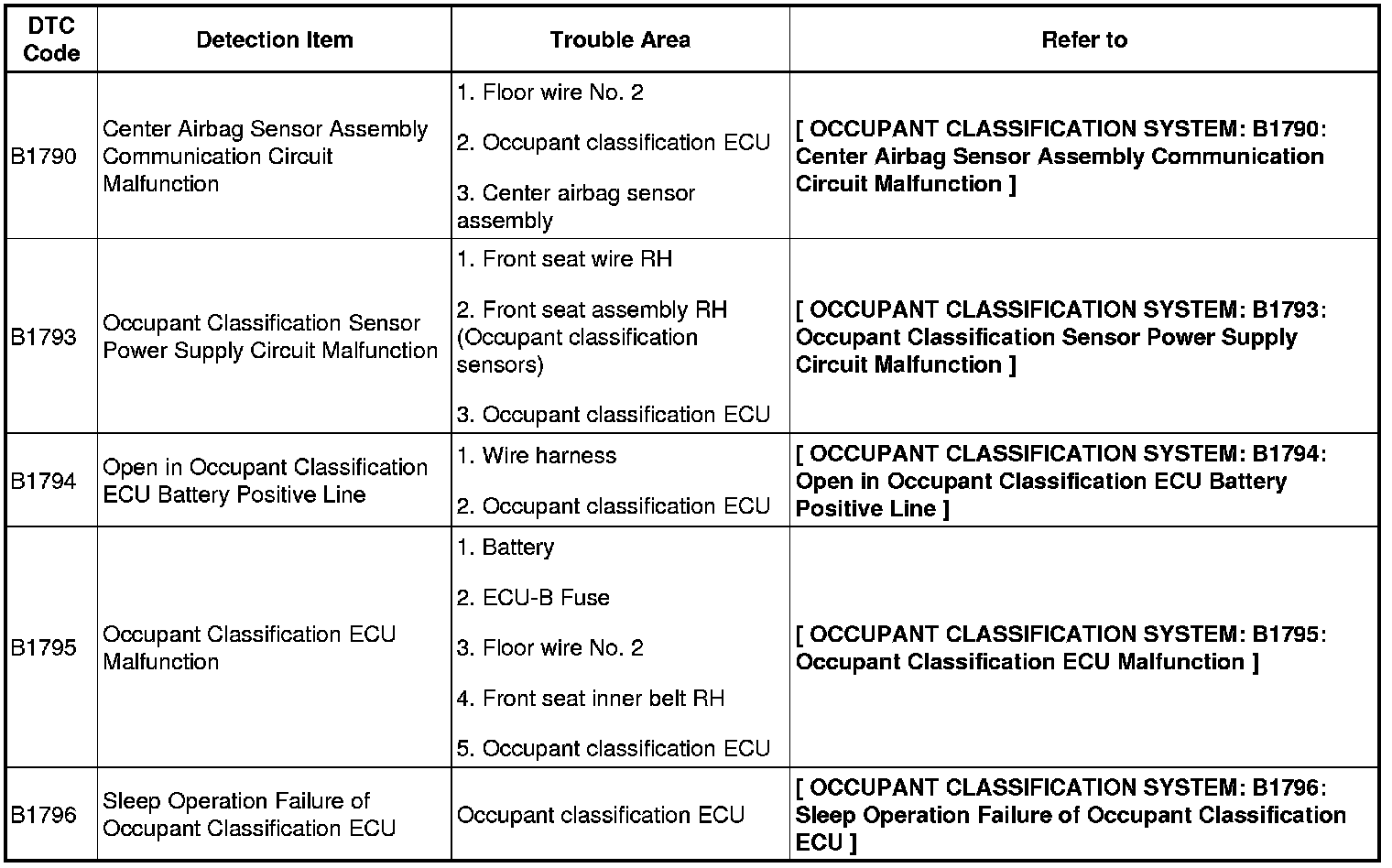

B1790 - B1796:
