DTC 62-46

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: 62-46: Scratched / Reversed Disc

DTC 62-46 - Scratched / Reversed Disc

DTC 63-46 - Scratched / Reversed Disc

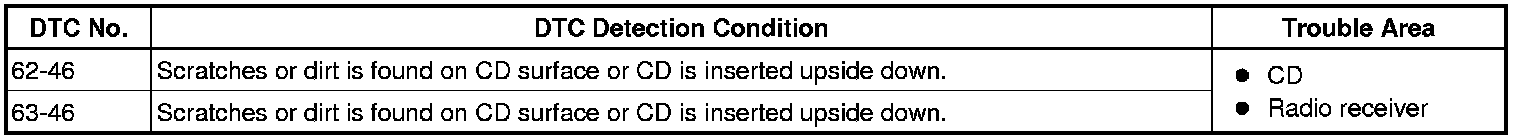

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK THAT CD IS INSERTED PROPERLY
(a) Check that the CD is not inserted upside down.
OK:
CD is properly inserted.
NG -- INSERT CD PROPERLY
OK -- Continue to next step.

2. CHECK DISC




(a) Check that the disc is not deformed or cracked.
OK:
No deformation or cracks on the disc.
NG -- REPLACE DISC
OK -- Continue to next step.

3. CLEAN DISC




(a) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.
NOTE: Do not use a conventional record cleaner or anti-static preservative.

NEXT -- Continue to next step.

4. CLEAR DISC
(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
NEXT -- Continue to next step.

5. RECHECK DTC
(a) Recheck for DTCs and check if the same trouble occurs again.
OK:
Malfunction disappears.
OK -- END
NG -- Continue to next step.

6. REPLACE DISC
(a) Replace the disc with another and recheck.
(1) Replace the disc with a normal one.
(2) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(3) Recheck for DTCs and check if the same trouble occurs again.
OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER
OK -- END
