DTC 62-47

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: 62-47: High Temperature

DTC 62-47 - High Temperature

DTC 63-47 - High Temperature

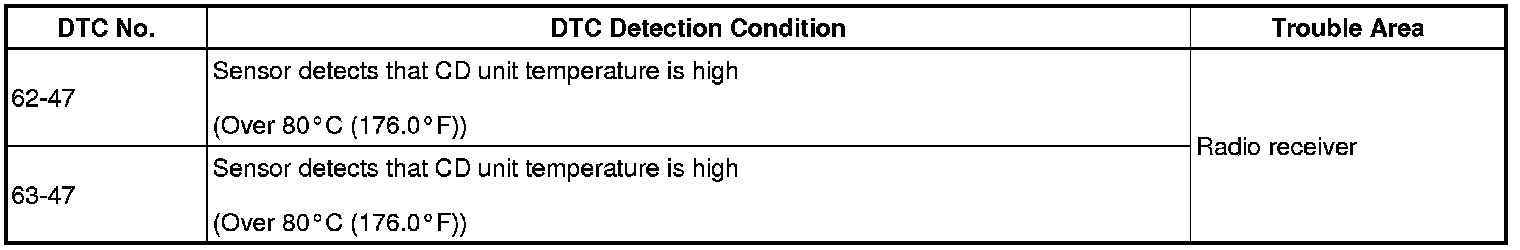

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear DTCs.

PROCEDURE

1. CHECK RADIO RECEIVER
(a) Park the vehicle in a cool place.
(b) Check that the temperature of the radio receiver becomes sufficiently low, then start the hybrid system.
(c) Clear DTC and recheck.
(d) Check if DTC 62-47 or 63-47 is output.
OK:
DTC 62-47 or 63-47 is not output.
NG -- REPLACE RADIO RECEIVER
OK -- END
