1NZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0031: Oxygen (A/F) Sensor Heater Control Circuit Low (Bank 1 Sensor 1)

DTC P0031 - Oxygen (A/F) Sensor Heater Control Circuit Low (Bank 1 Sensor 1)

DTC P0032 - Oxygen (A/F) Sensor Heater Control Circuit High (Bank 1 Sensor 1)

DESCRIPTION

The air-fuel ratio (A/F) sensor provides output voltage* which is almost equal to the existing air-fuel ratio. The A/F sensor output voltage is used to provide feedback for the ECM to control the air-fuel ratio.
With the A/F sensor output, the ECM can determine deviation from the stoichiometric air-fuel ratio and control proper injection time. If the A/F sensor is malfunctioning, the ECM is unable to accurately control the air-fuel ratio.
The A/F sensor is equipped with a heater which heats the zirconia element. The heater is also controlled by the ECM. When the intake air volume is low (the temperature of the exhaust gas is low), current flows to the heater to heat the sensor to facilitate detection of accurate oxygen concentration.

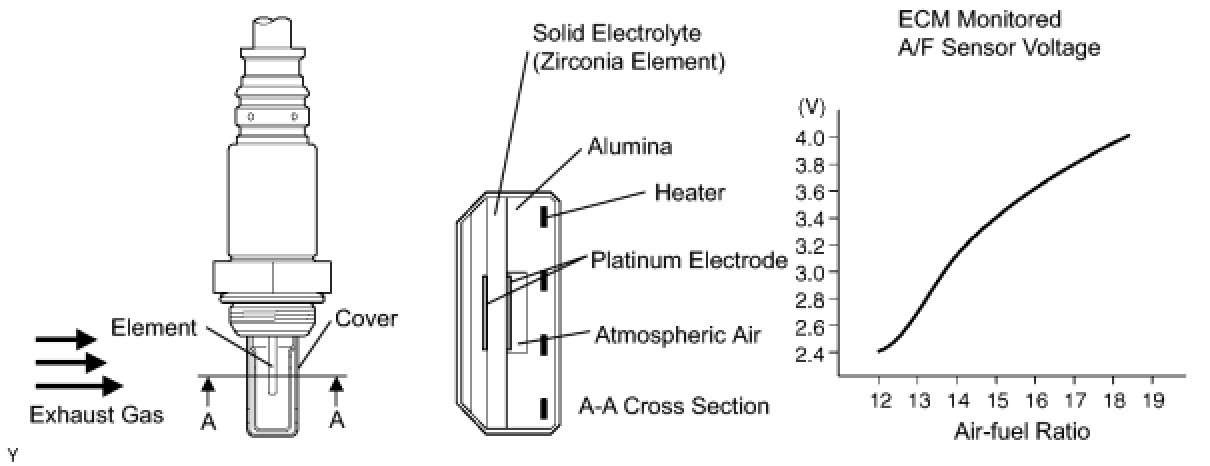

The A/F sensor is a planar type. Compared to a conventional type, the sensor and heater portions are narrower. Because the heat of the heater is conducted through the alumina to zirconia (of the sensor portion), sensor activation is accelerated.
To obtain a high purification rate of carbon monoxides (CO), hydrocarbons (HC) and nitrogen oxides (NOx) components of the exhaust gas, a three-way catalytic converter is used. The converter is most efficient when the air-fuel ratio is maintained near the stoichiometric air-fuel ratio.
*: The voltage value changes inside the ECM only.





HINT:
- Although each DTC title says "oxygen sensor," these DTCs are related to the air-fuel ratio sensor (A/F sensor).
- The ECM provides a pulse width modulated control circuit to adjust current through the heater. The A/F sensor heater circuit uses a relay on the +B side of the circuit.

HINT:
- The A/F sensor's output voltage and the short-term fuel trim value can be read using Techstream.
- The ECM controls the voltage of the A1A+, and A1A- terminals of the ECM to a fixed voltage. Therefore, it is impossible to confirm the A/F sensor output voltage without Techstream.
- The OBD II scan tool (excluding Techstream) displays the one fifth of the A/F sensor output voltage which is displayed on Techstream.









HINT:
- Sensor 1 refers to the sensor mounted before the TWC and is located near the engine assembly.
- Sensor 2 refers to the sensor mounted after the TWC and is located far from the engine assembly.

MONITOR DESCRIPTION

The ECM uses the Air-Fuel Ratio (A/F) sensor information to regulate the air-fuel ratio close to the stoichiometric ratio. This maximizes the catalytic converter's ability to purify exhaust gases. The sensor detects oxygen levels in the exhaust gas and sends this signal to the ECM.
The inner surface of the sensor element is exposed to outside air. The outer surface of the sensor element is exposed to the exhaust gas. The sensor element is made of platinum coated zirconia and includes an integrated heating element. The zirconia element generates a small voltage when there is a large difference between the oxygen concentrations of the exhaust and the outside air. The platinum coating amplifies the voltage generation. When heated, the sensor becomes very efficient. If the temperature of the exhaust is low, the sensor will not generate useful voltage signals without supplemental heating. The ECM regulates the supplemental heating using a duty-cycle approach to regulate the average current in the heater element. If the heater current is out of the normal range, the sensor output signals will be inaccurate and the ECM cannot regulate the air-fuel ratio properly.
When the heater current is out of the normal operating range, the ECM interprets this as malfunction of the sensor and sensor circuit and sets a DTC.

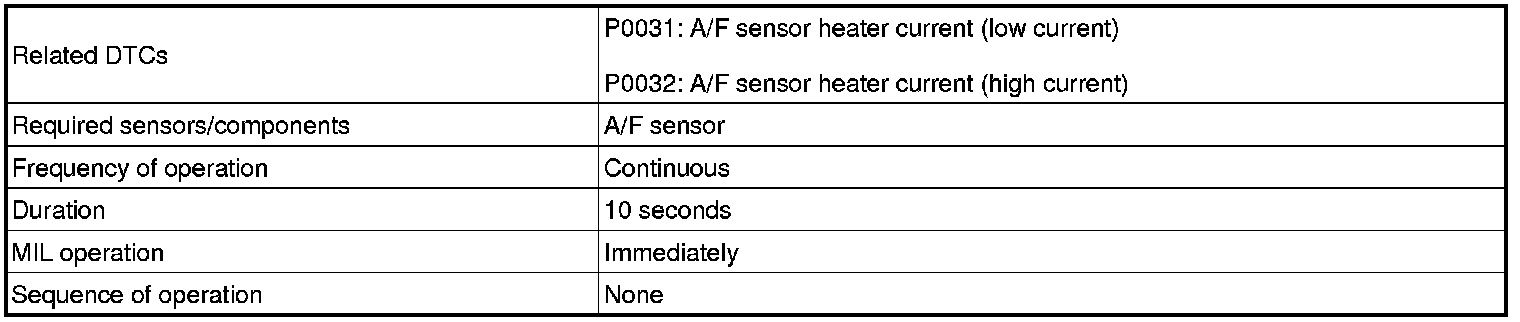

MONITOR STRATEGY

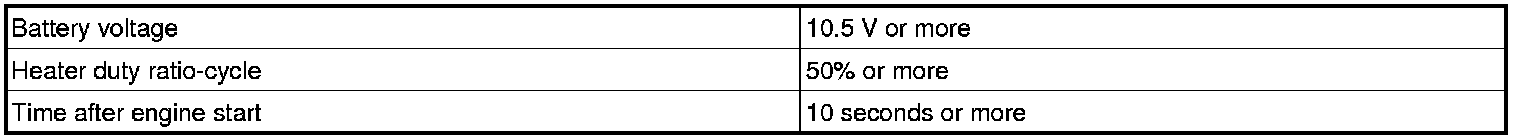

TYPICAL ENABLING CONDITIONS

All:





P0031:





P0032

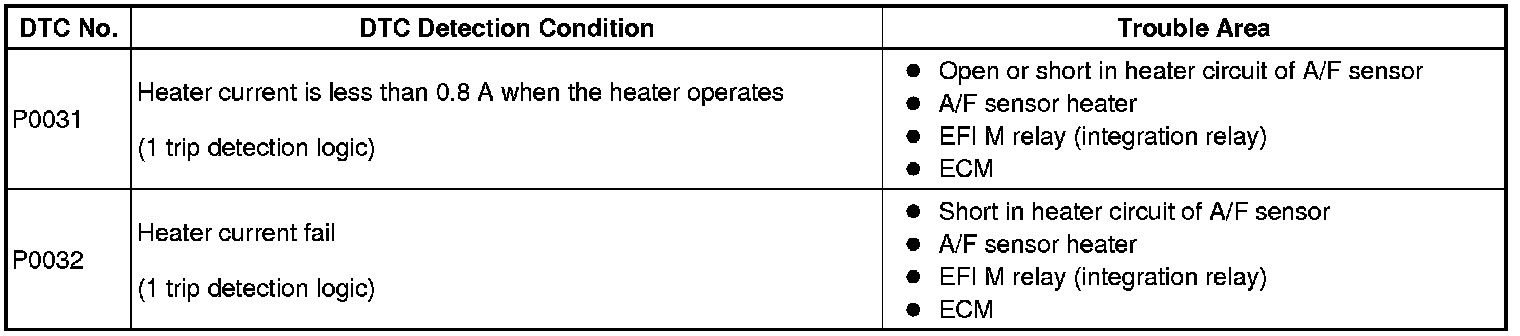

TYPICAL MALFUNCTION THRESHOLDS

P0031:





P0032:





COMPONENT OPERATING RANGE





WIRING DIAGRAM





INSPECTION PROCEDURE
HINT:
- When DTC P0032 is detected, proceed to step 4 if the heater resistance is in normal range.
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. INSPECT AIR FUEL RATIO SENSOR (HEATER RESISTANCE)

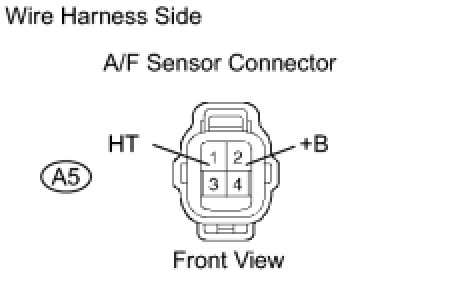

(a) Disconnect the A5 A/F sensor connector.
(b) Measure the resistance between the terminals of the A/F sensor connector.
Standard resistance:





(c) Reconnect the A/F sensor connector.
NG -- REPLACE AIR FUEL RATIO SENSOR
OK -- Continue to next step.

2. INSPECT INTEGRATION RELAY (EFI M RELAY)




(a) Remove the integration relay from the engine room relay block.
(b) Inspect the EFI M relay.

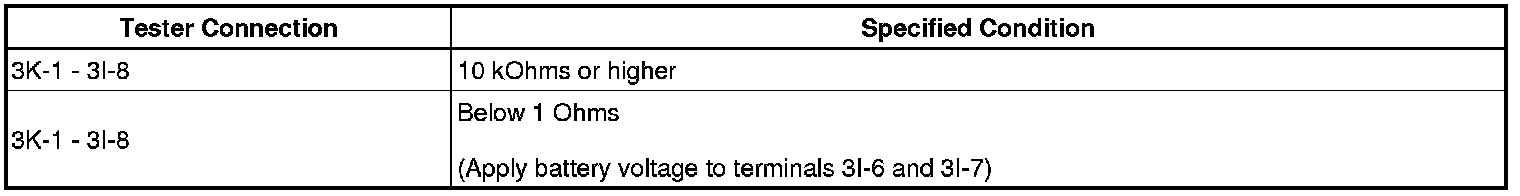

Standard resistance:





(c) Reinstall the integration relay.
NG -- REPLACE INTEGRATION RELAY
OK -- Continue to next step.

3. CHECK ECM (HA1A VOLTAGE)




(a) Turn the power switch ON (IG).

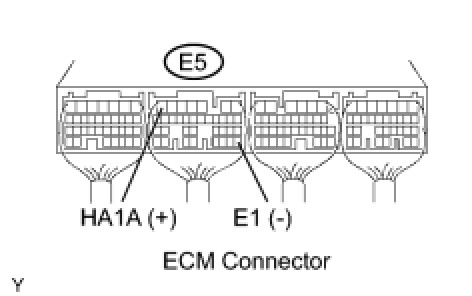

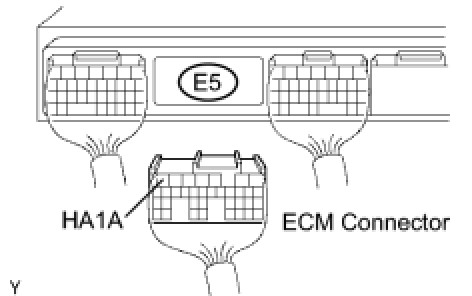

(b) Measure the voltage between the applicable terminals of the E5 ECM connector.
Standard voltage:






OK -- REPLACE ECM
NG -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (A/F SENSOR - ECM, A/F SENSOR - EFI M RELAY)
(a) Check the harness and the connectors between the ECM and the A/F sensor connectors.





(1) Disconnect the A5 A/F sensor connector.





(2) Disconnect the E5 ECM connector.
(3) Measure the resistance according to the value(s) in the table below.

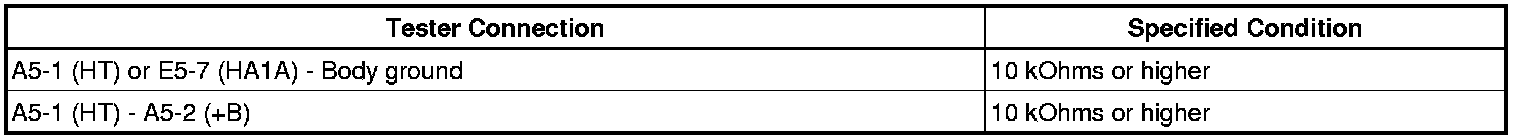

Standard resistance (Check for open):






Standard resistance (Check for short):






(4) Reconnect the A/F sensor connector.
(5) Reconnect the ECM connector.
(b) Check the harness and connectors between the A/F sensor connector and the EFI M relay.
(1) Disconnect the A5 A/F sensor connector.





(2) Remove the integration relay from the engine room relay block.
(3) Measure the resistance according to the value(s) in the table below.
Standard resistance (Check for open):






Standard resistance (Check for short):






(4) Reconnect the A/F sensor connector.
(5) Reinstall the integration relay.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM
